Variant
long

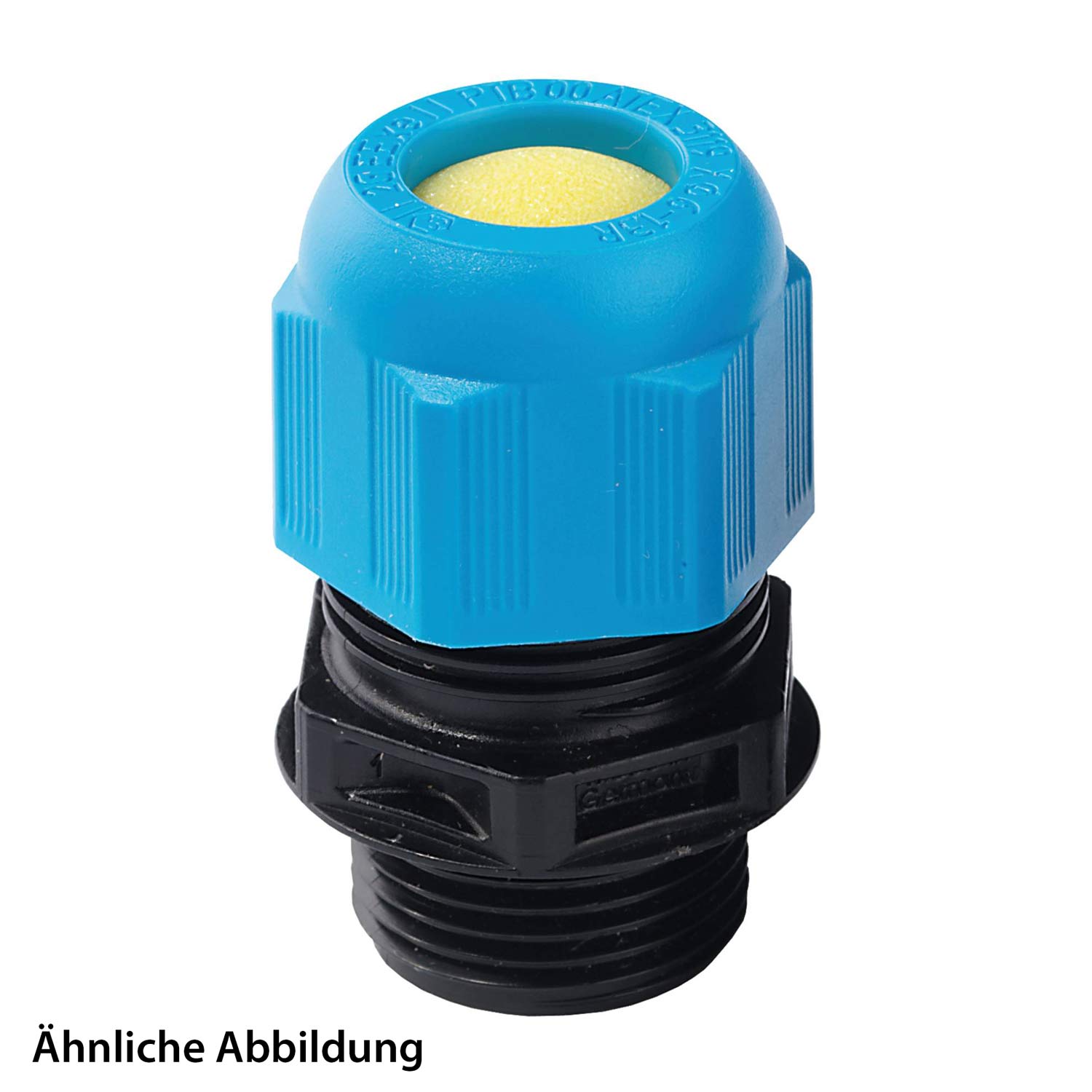

10103393 WISKA ATEX connector M50x1.5 long Polyamide (PA) II2DExtbIIICDb / II2GExebIICGb / II 2G (1.2) II 2D (21.22)
✓ No packaging units, no minimum order value
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €55.16 |
| from 10 piece | €49.65 |
| from 25 piece | €44.13 |
| from 50 piece | €38.62 |
| from 100 piece | €33.09 |
from €55.16
Discount group:
V1
10103393 WISKA ATEX connector M50x1.5 long Polyamide (PA) II2DExtbIIICDb / II2GExebIICGb / II 2G (1.2) II 2D (21.22):
| Type: | ATEX connector |
| Series: | ATEX connector |
| ATEX marking: | II2DExtbIIICDb / II2GExebIICGb |
| Type of protection: | Ex i - intrinsic safety |
| Group (Zone): | II 2G (1.2) II 2D (21.22) |
| ATEX certificate: | IECEx PTB 13.0034X / PTB 13 ATEX 1015 X |
| Type: | long |
| Thread: | M50x1.5 |
| Thread length: | Length: 18.0 mm |
| Width across flats: | SW55 |
| Clamping range: | 23.0 mm - 35.0 mm |
| Temperature range: | Range of application: -40°C to 75°C |
| Protection class: | IP68 |
| Material: | Screw connection: Polyamide (PA) Cap nut: Polyamide (PA) Sealing ring: Ethylene propylene diene rubber (EPDM) Dust cover: Polyethylene (PE-LD) |
| Colour: | Base body: deep black RAL 9005 Cap nut: light blue RAL 5012 |
| Features: | - Integrated strain relief. - Large sealing and clamping range. - Optimal strain relief. - The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut. - Sealing to the housing with a connection thread seal ring. |
| Fire behaviour: | -halogen-free |
| Environment: | -UV-resistant -weatherproof -ozone-resistant -for cold and warm water |
| Chemical: | -chemically resistant |
| Matching data: | Metric cable connectors, Atex / Ex cable connectors, cable connector waterproof, cable connectors M50 |
10103393 WISKA ATEX connector M50x1.5 long Polyamide (PA) II2DExtbIIICDb / II2GExebIICGb / II 2G (1.2) II 2D (21.22):
| Manufacturer: | WISKA |
| Manufacturer designation: | 10103393 |
| Manufacturer Short description: | ESKE/1-L-i 50 |
| Customs tariff number: | 39269097 |
| EAN: | 4007685083638 |
| Classifications: | - ECLASS 5.1.4 27149111 - ECLASS 7.1 27149111 - ETIM-8.0 EC000441 - UNSPSC EC000441 |
The photographs and graphics are not to scale and are not detailed images of the respective products.
Manufacturer or responsible person for the product: WISKA Hoppmann GmbH, Kisdorfer Weg 28, 24568 Kaltenkirchen, Germany
