Variant
with locknut

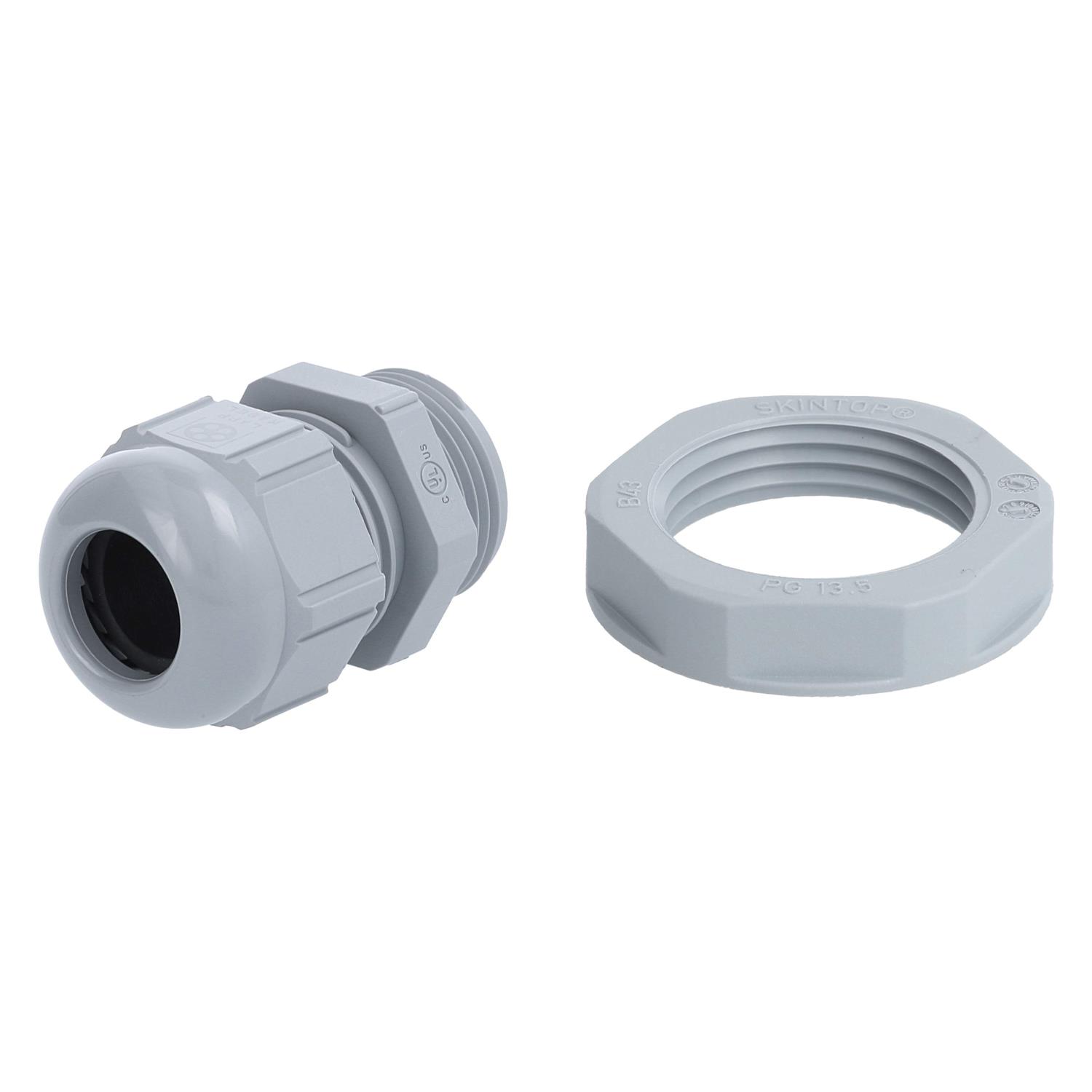

59911897K LAPP Screw connection with locknut PG13.5x1.41 Polyamide (PA) Thread length 9.0 mm
✓ No packaging units, no minimum order value
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €1.71 |
| from 100 piece | €1.54 |
| from 200 piece | €1.37 |
| from 400 piece | €1.20 |
| from 800 piece | €1.02 |
from €1.71
Discount group:
V1
59911897K LAPP-SKINTOP Screw connection with locknut PG13.5x1.41 Polyamide (PA) Thread length 9.0 mm:
| Type: | Screw connection with locknut |
| Series: | Screw connection with locknut |
| Thread: | PG13.5x1.41 |
| Thread length: | Length: 9.0 mm |
| Outer diameter: | 26.5 mm |
| Dimensions: | Height: 41.0 mm |
| Width across flats: | SW24 / SW27 |
| Clamping range: | 6.0 mm - 12.0 mm |
| Temperature range: | moves: -20°C to 80°C fixed relocated: -20°C to 100°C |
| Protection class: | IP68 |
| Material: | Screw connection: Polyamide (PA) Cap nut: Polyamide (PA) Locknut: Polyamide (PA) Sealing ring: Chloroprene rubber (CR) |
| Colour: | Colour shade: silver grey RAL 7001 Locknut: silver grey RAL 7001 |
| Features: | - Increases oil resistance for higher functional reliability. - Permanent vibration protection. - Large, variable clamping ranges. - Optimal strain relief. - With locknut Polyamide (PA) glass fibre reinforced, for high mechanical stability. |
| Matching data: | PG cable connectors, SKINTOP connectors, cable connectors plastic, cable connector waterproof, Lapp cable connectors, PG13.5 cable connectors |
59911897K LAPP Screw connection with locknut PG13.5x1.41 Polyamide (PA) Thread length 9.0 mm:
| Manufacturer: | LAPP |
| Manufacturer designation: | 59911897K |
| Manufacturer Short description: | Presse-étoupe with contre écrou No. 222250 |
| Aliases: | - 59 91 1897K - 59.91.1897K - 59-91-1897K |
| Customs tariff number: | 39269097 |
| EAN: | 4069948242404 |
| Classifications: | - ECLASS 5.1.4 27149109 - ECLASS 7.1 27149109 |
The photographs and graphics are not to scale and are not detailed images of the respective products.
Manufacturer or responsible person for the product in: U.I. Lapp GmbH, Schulze-Delitzsch-Straße 25, 70565 Stuttgart, Germany
