Variant
silver-grey
without locknut

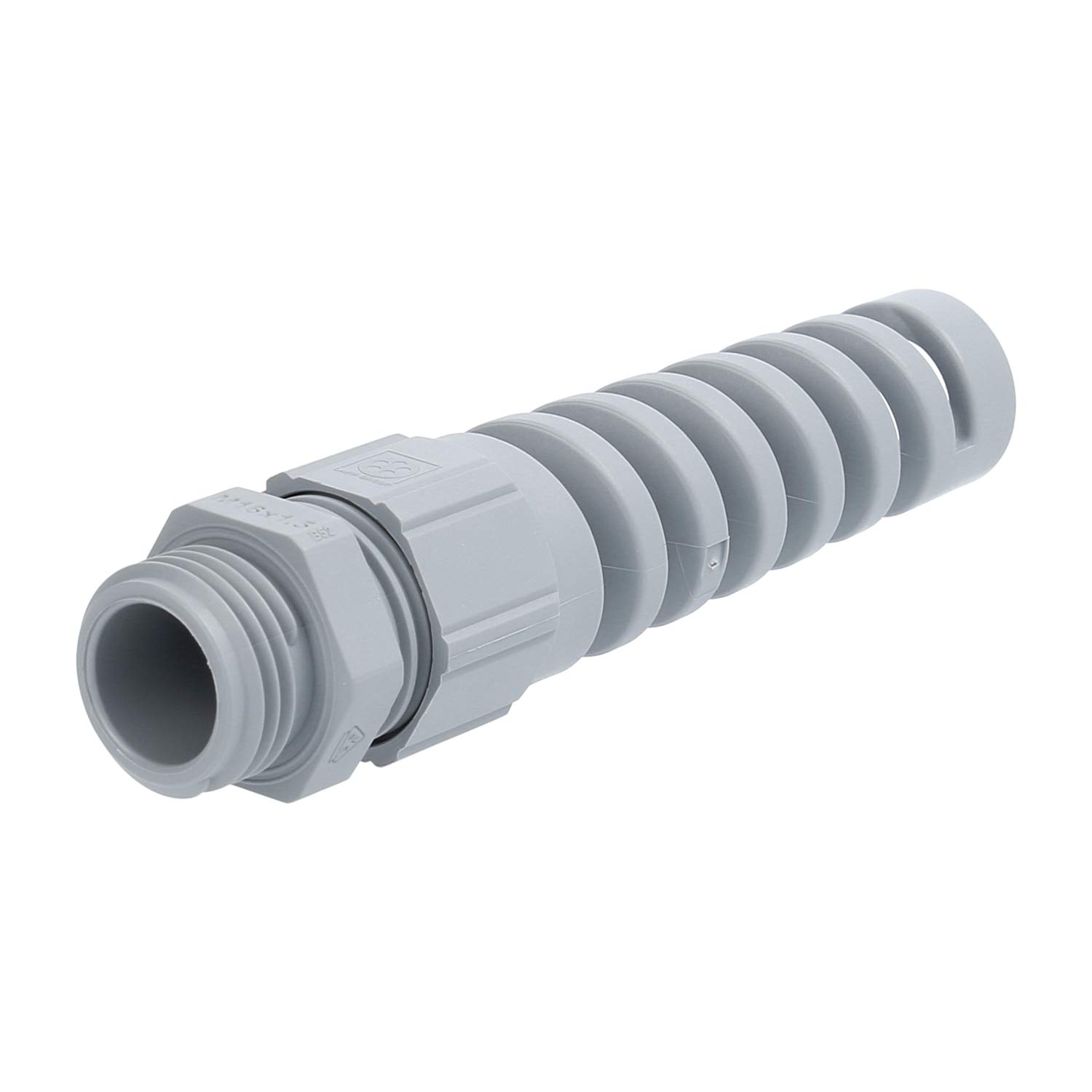

53111610 LAPP-SKINTOP Screw connection with bending protection M16x1.5 SBS-M16 Polyamide (PA) Thread length 8.0 mm
Article No.:
102925
Old Article No.:
302216000
Manufacturer Article No.:
53111610
Manufacturer:
✓ No packaging units, no minimum order value
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €1.75 |
| from 25 piece | €1.57 |
| from 50 piece | €1.40 |
| from 100 piece | €1.22 |
| from 200 piece | €1.05 |
from €1.75
Discount group:
V1
53111610 LAPP-SKINTOP Screw connection with bending protection M16x1.5 SBS-M16 Polyamide (PA) Thread length 8.0 mm:

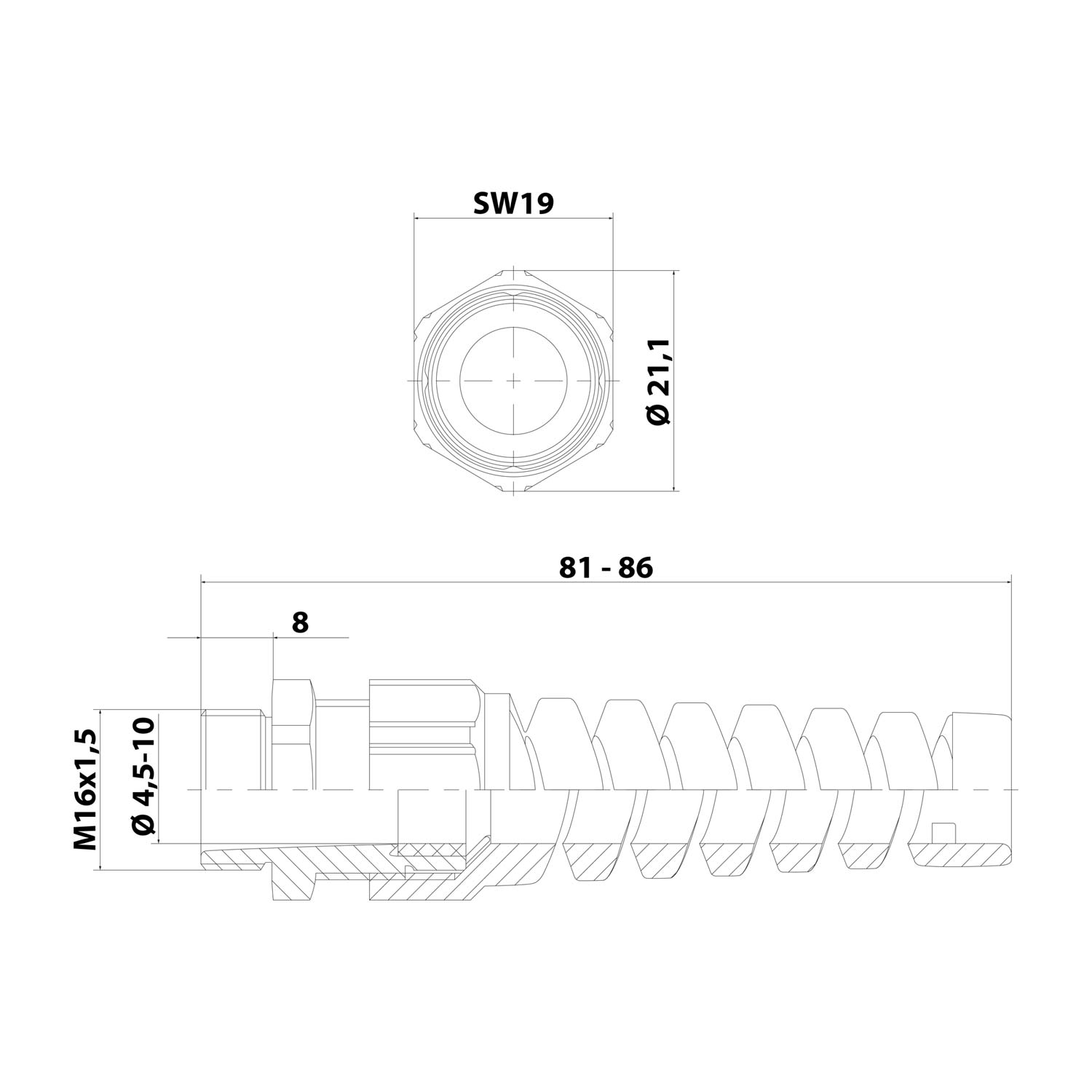

| Type: | Screw connection with bending protection |
| Series: | Screw connection with bending protection |
| Thread: | M16x1.5 |
| Thread length: | Length: 8.0 mm |
| Outer diameter: | 21.1 mm |
| Dimensions: | Height: 86.0 mm |
| Width across flats: | SW19 |
| Clamping range: | 4.5 mm - 10.0 mm |
| Temperature range: | Range of application: -20°C to 100°C |
| Protection class: | IP68 |
| Material: | Screw connection: Polyamide (PA) Sealing ring: Chloroprene rubber (CR) Cable bend relief: Polyamide (PA) |
| Colour: | Colour shade: silver grey RAL 7001 |
| Approvals / Standards: | Fire behaviour according to UL: V2 according to UL94 |
| Features: | - Reliable bending and kink protection. - Optimal strain relief. - Function assurance. - For securing flexible cables. - Cable protection. |
| Matching data: | Metric cable connectors, SKINTOP connectors, Cable connectors plastic, Cable connector waterproof, Lapp cable connectors, Cable connectors M16 |
53111610 LAPP-SKINTOP Screw connection with bending protection M16x1.5 SBS-M16 Polyamide (PA) Thread length 8.0 mm:
| Manufacturer: | LAPP-SKINTOP |
| Manufacturer designation: | 53111610 |
| Manufacturer Short description: | SKINTOP BS-M 16x1.5 RAL 7001 SGY |
| Aliases: | - 53 11 1610 - 53.11.1610 - 53-11-1610 |
| Customs tariff number: | 39269097 |
| EAN: | 4044773174816 |
| Classifications: | - ECLASS 5.1.4 27149109 - ECLASS 7.1 27149109 - UNSPSC 39121431 |
CAD data for the development and planning of projects.
The extended terms-of-use apply.
The photographs and graphics are not to scale and are not detailed images of the respective products.
Manufacturer or responsible person for the product in: U.I. Lapp GmbH, Schulze-Delitzsch-Straße 25, 70565 Stuttgart, Germany
