Variant
active/inactive

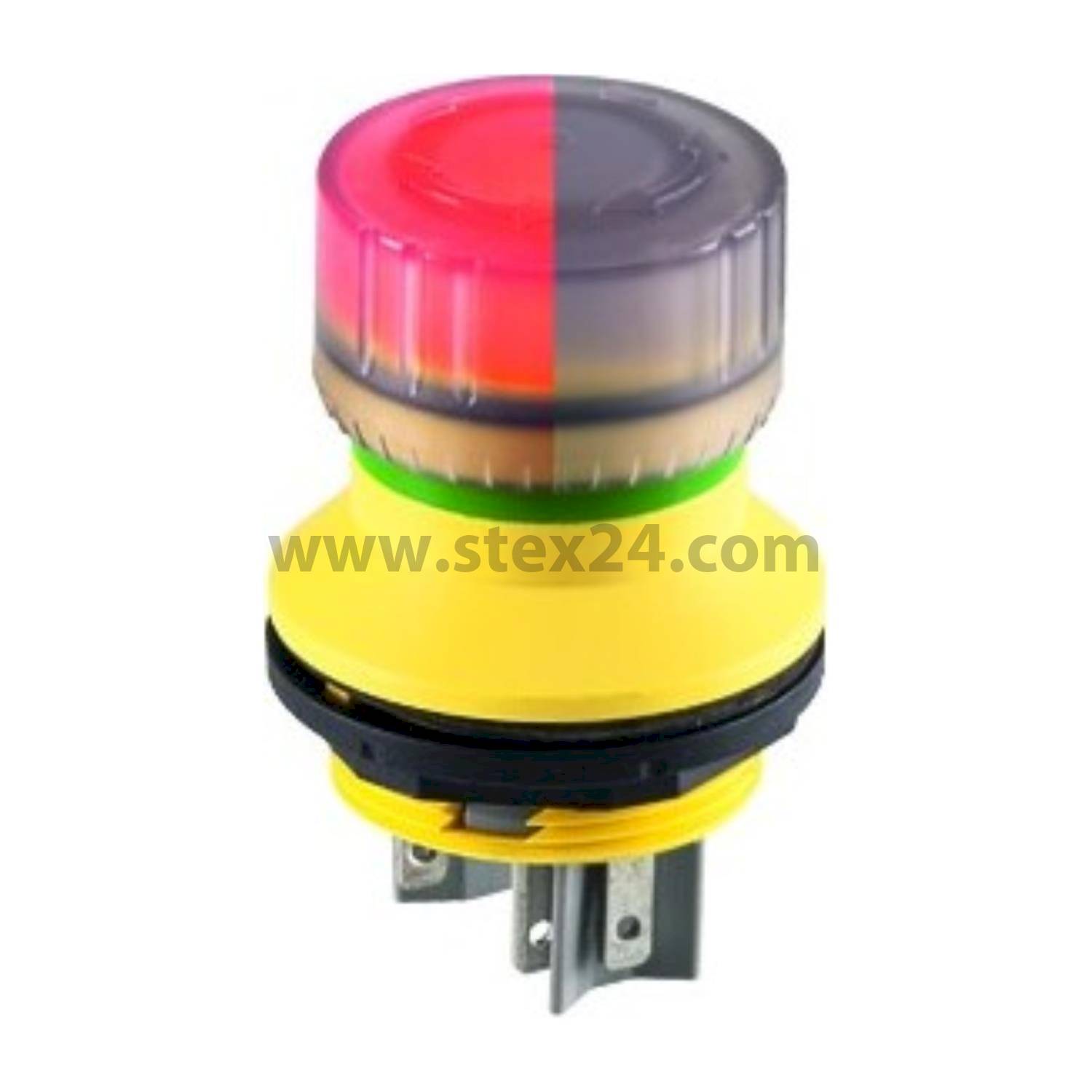

FRVKDOO_AU Georg Schlegel Active-illuminated emergency stop switch / emergency stop button, 2Ö illuminable, around, SHORTRON Flat plug 2.8mm x 0.5mm
✓ By the piece ex stock ✓ No packing units, no minimum order value
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €43.48 |
| from 10 piece | €39.13 |
| from 25 piece | €34.78 |
| from 50 piece | €30.43 |
| from 100 piece | €26.09 |
from €43.48
Discount group:
T2
FRVKDOO_AU Georg Schlegel Active-illuminated emergency stop switch / emergency stop button, 2Ö illuminable, around, SHORTRON Flat plug 2.8mm x 0.5mm:
| Type: | Active-illuminated emergency stop switch / emergency stop button |
| Type: | around |
| Series: | SHORTRON |
| Hub: | 2.3 mm |
| Connection technology: | Flat plug 2.8mm x 0.5mm |
| Installation depth: | 18.0 mm |
| Contact type: | 2 NC contact |
| Unlocking: | Rotation release left/right |
| Blocking protection collar: | No |
| Switch position indicator: | Yes |
| Inscribable: | No |
| Illuminable: | Yes |
| Protection class: | IP65 / IP67 |
| Mechanical life: | 50,000 switching cycles |
| EL. Service life (nominal load): | 50,000 operations at nominal load |
| Switching function: | Touch function |
| Tamper-proof: | Yes |
| Material: | Contact: Silver (Ag) Nickel (Ni) Contact surface: gold plated (Au) |
| Colour: | Front frame: yellow Mushroom button: clear |
| Matching data: | Emergency stop switch |
FRVKDOO_AU Georg Schlegel Active-illuminated emergency stop switch / emergency stop button, 2Ö illuminable, around, SHORTRON Flat plug 2.8mm x 0.5mm:
| Manufacturer: | Georg Schlegel |
| Manufacturer designation: | FRVKDOO_AU |
| Manufacturer Short description: | Active illuminated safe emergency stop bouton-poussoir |
| Aliases: | - FRVKDOO AU - FRVKDOO.AU - FRVKDOO-AU |
| Customs tariff number: | 85365080 |
| EAN: | 4251478485370 |
| Classifications: | - UNSPSC 391222 |
With our Schlegel product configurator, you can quickly and easily put together the products you need from Schlegel. Only suitable components are offered. Various filter settings such as connection type, design, installation depth or contact type enable you to select the right product from a wide range of options. Use the Watchlist to add the items to your shopping basket!
The photographs and graphics are not to scale and are not detailed images of the respective products.
Manufacturer or responsible person for the product in: Georg Schlegel GmbH & Co. KG, Kapellenweg 4, Dürmentingen, Germany
