Table of contents
- 5 safety rules
- Important standards for electrical installations in Germany
- Why standards are important in electrical installations
- Most important standards in mechanical engineering in Germany
- Electrical standards specifically for machines
- VDE 0701-0702 – Recertification testing of electrical Equipment
- Summary: Key core Standards
- How do standards differ in other European countries?
- Mechanical engineering – much more harmonized by EU law
- EU-wide uniform Basis
- For international planning: Implementation recommendations for electrical installation and mechanical Engineering
- Conclusion:
Electrical installations are strictly regulated in Germany, and for good reason: safety, quality, and reliability are top priorities. Standards, identification standards, and VDE regulations play a particularly important role in mechanical engineering in order to protect people and technology. Those who are familiar with the applicable safety rules and ensure correct application minimize risks while also complying with all legal requirements. This guide provides a clear introduction to the most important standards and shows what is important in practice.
5 safety rules
The 5 safety rules are fundamental rules for working safely on electrical systems in Germany and are laid down in the VDE regulations (including DIN VDE 0105-100). They must always be applied in this order:
Safe electrical work: The 5 most important rules
1. Disconnect: Disconnect all active conductors from the mains on all poles (e.g., remove fuses, switch off circuit breakers).
2. Secure against reconnection: Ensure that no one can accidentally switch the system back on (e.g., lock, sign saying “Do not switch – work in progress”).
3. Verify that there is no voltage: Use a two-pole voltage tester to check that there is no voltage present.
4. Ground and short-circuit: Secure the system with suitable grounding and short-circuiting devices to prevent dangerous voltages from occurring.
5. Cover or fence off adjacent live parts: Insulate or fence off parts that cannot be disconnected to prevent accidental contact.
These five safety rules form the basis for standard-compliant and safe work on electrical systems and are a central component of the standards and reference standards in the field of electrical installation and mechanical engineering.
Important standards for electrical installations in Germany
As already mentioned, comprehensive standards ensure safety and quality in electrical installations in Germany. The most important regulatory bodies include DIN, VDE, and ISO/IEC. Below you will find an overview of the most important standards and regulations.
1. DIN VDE 0100 – Installation of low-voltage systems
DIN VDE 0100 is a comprehensive series of standards for the installation of low-voltage systems up to 1000 V AC or 1500 V DC.
It describes the technical requirements for electrical systems to function safely and protect people.
The most important parts of the comprehensive series of standards include:
- VDE 0100-410: Protection against electric shock
- VDE 0100-420: Protection against thermal effects (fire)
- VDE 0100-430: Protection against overcurrents
- VDE 0100-520: Selection/installation of electrical equipment
- VDE 0100-540: Earthing, protective conductors
- VDE 0100-600: Testing of electrical installations
2. DIN VDE 0105 – Operation of electrical installations
DIN VDE 0105 specifies the rules for the safe operation, use, monitoring, and maintenance of electrical installations. It describes organizational and technical measures to prevent hazards to persons and property and is primarily intended for qualified electricians and persons with electrical training.
A central component of the standard are the five safety rules that must be observed when working on electrical installations.
3. DIN VDE 0298 – Current carrying capacity of cables and wires
DIN VDE 0298 specifies the permissible current carrying capacity of cables and wires and defines the framework conditions for their safe selection and installation in electrical installations.
4. DIN VDE 0185-305 – Lightning protection
This standard primarily describes the planning, installation, and testing of lightning protection systems and serves to protect people, buildings, and electrical systems from the effects of lightning strikes.
5. TAB (Technical Connection Conditions)
The TAB (short for: Technical Connection Conditions) regulate the technical requirements for connecting electrical systems to the public power grid and are specified by the respective grid operators in Germany.
6. DIN 18015 – Electrical systems in residential buildings
The planning, installation, and equipment of electrical systems in residential buildings are specified in DIN 18015, which also defines minimum requirements for safety, functionality, and comfort.
7. VDE-AR-N 4100 / 4105 – Connection rules
VDE-AR-N 4100 and 4105 specify the technical connection rules for customer systems on the low-voltage grid and define requirements for the planning, operation, and safety of decentralized generation systems and consumption systems in Germany. Here are a few examples where the guidelines are important:
- Photovoltaic systems on residential and commercial roofs
- Small wind turbines
- Electric cars / wallbox charging stations
- Emergency power and stand-alone systems
- Battery storage (home storage, commercial storage)
Why standards are important in electrical installations
Standards in electrical installations ensure that work is carried out safely, efficiently, and reliably. They specify binding requirements for the planning, execution, operation, and maintenance of electrical systems, thereby minimizing risks to people and property. Important regulations in Germany include DIN standards, VDE regulations, TAB (technical connection conditions), and specific standards such as DIN VDE 0105 for the operation of electrical systems, DIN VDE 0298 for the current-carrying capacity of wires, and DIN VDE 0185-305 for lightning protection. They form the basis for standard-compliant electrical installations, ensure compliance with legal regulations, and promote quality, safety, and reliability in private, commercial, and industrial systems.
Most important standards in mechanical engineering in Germany
In mechanical engineering, too, standards for safety and design form the basis for reliable, compliant systems. They ensure safety, quality, and efficiency and specify requirements for the design, operation, and maintenance of machines.
1. Machinery Directive 2006/42/EC (in future Machinery Regulation 2023/1230)
The Machinery Directive 2006/42/EC specifies the basic safety and health requirements for machines that are placed on the market or put into service in the European Union. It regulates CE marking, risk assessment, conformity assessment, and the obligations of manufacturers to ensure the protection of persons, animals, and property.
The future Machinery Regulation 2023/1230 implements these requirements in even more concrete terms and specifies, among other things, rules for digital interfaces, autonomous machines, and new safety technologies.
2. DIN EN ISO 12100 – Risk assessment and risk reduction
This standard lays down the principles for risk assessment and risk reduction for machinery. It describes a systematic approach to identifying hazards, assessing risks, and deriving appropriate protective measures to ensure the safety of persons during the design, operation, and maintenance of machinery.
3. DIN EN ISO 13849 – Safety of machinery – Safety-related parts of control systems
DIN EN ISO 13849 deals with the safety of machinery and specifies requirements for safety-related parts of control systems. The standard specifies how control systems must be designed, evaluated, and tested in order to minimize risks and reliably ensure the functional safety of critical safety functions.
4. DIN EN 60204-1 (VDE 0113-1) – Electrical equipment of machines
DIN EN 60204-1 (VDE 0113-1) focuses on the requirements for the electrical equipment of machines. It covers safety, design, protective measures, control systems, operating equipment, and tests to ensure the safe operation of machines and the protection of persons.
5. DIN EN ISO 14120 – Protection of machinery (protective devices)
DIN EN ISO 14120 specifies requirements for protective devices on machinery. It defines the design, spacing, fastening, and marking of protective devices to effectively protect persons from hazards caused by moving parts or other machine risks.

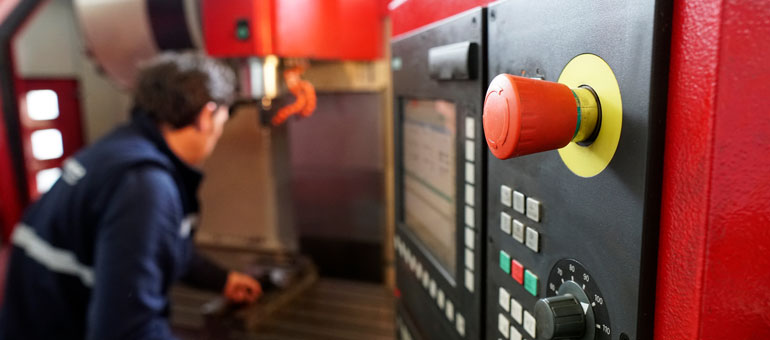

6. DIN EN ISO 13850 – Emergency stop
DIN EN ISO 13850 describes all requirements for the emergency stop of machines. The standard regulates how emergency stop devices must be designed, arranged, and marked so that machines can be shut down quickly and reliably in the event of danger in order to protect people and equipment.
7. DIN EN ISO 13855 – Positioning of protective devices (distances, safety zones)
The aim of DIN EN ISO 13855 is to specify how protective devices are to be positioned on machines. Correct positioning depending on approach speeds, ranges, and movement sequences ensures that persons are reliably protected from hazardous areas.
Electrical standards specifically for machines
Electrical standards in mechanical engineering ensure that systems operate safely, reliably, and efficiently. They define basic requirements for protective measures, control systems, and testing, and help to minimize risks to people and equipment. Here is a practical example: If the standards for electrical switchgear assemblies are complied with, a short circuit in the control system can be detected at an early stage and the machine can be shut down safely. This protects both employees and the system. The regulations that form the basis for this are described below.
DIN EN 61439 – Low-voltage switchgear assemblies
DIN EN 61439 specifies the requirements for low-voltage switchgear assemblies. It defines safety, protection, electrical properties, and test procedures to ensure reliable operation and the protection of people and equipment.
IEC 61800-5-1 – Electrical drive systems
This standard regulates the safety requirements for electrical drive systems. Among other things, it covers protection against electric shock, thermal risks, and mechanical hazards to ensure the safe operation of drives in machines and systems.
VDE 0701-0702 – Recertification testing of electrical equipment
After repairs or prolonged periods of use, electrical equipment must be inspected regularly to ensure that it can continue to be operated safely and that there are no hazards such as electric shock or short circuits. The standard that specifies the tests after repair, the repeat tests, and the associated test procedures is DIN VDE 0701-0702.
Summary: Key core standards
For electricians and specialists in domestic installations, the VDE guidelines for electrical installations and other regulations form the basis for safe and standard-compliant work. Standards for electrical installations such as DIN VDE 0105 (operation of electrical systems), DIN VDE 0298 (current-carrying capacity of wires), and DIN VDE 0185-305 (lightning protection) define the requirements for the planning, execution, and maintenance of electrical systems. These are supplemented by the technical connection conditions (TAB) of the network operators, which regulate the proper connection to the public power grid. Compliance with these core standards ensures that domestic installations can be operated reliably, efficiently, and, above all, safely for users and residents.
The most important core standards in the fields of electrical installation and mechanical engineering
| AREA | STANDARDS |
|---|---|
| Electrical installation | DIN VDE 0100, VDE 0105, VDE 0185, VDE-AR-N 4100/4105, DIN 18015 |
| Mechanical engineering | 2006/42/EC (CE), ISO 12100, ISO 13849, EN 60204-1 (VDE 0113-1), EN 61439 |
Table: Key standards
How do standards differ in other European countries?
Standards can vary greatly within Europe, as each country sets its own legal requirements, technical guidelines, and test criteria. Although the European Union promotes harmonized standards (EN standards), national differences remain in implementation, scope of application, and control procedures. The most important facts are:
1. Electrical installation – major national differences despite EU harmonization
In Europe, 230/400 V, 50 Hz usually applies. HD 60364 harmonizes electrical installation standards, but each country implements them nationally. This is why there are differences in protective measures (RCD, circuit protection), cable colors, installation practices, and acceptance regulations.
Typical national standards based on HD 60364
Each country implements the European basic standard HD 60364 nationally: - Germany: DIN VDE 0100 - France: NF C 15-100 - Italy: CEI 64-8 - Netherlands: NEN 1010 - Spain: UNE-HD 60364 - UK and Ireland: BS 7671 (IET Wiring Regulations)
The basic principles, such as protective measures, cable dimensioning, and testing, are similar, but there are national peculiarities that must be taken into account.
Important differences in electrical installation between countries
The differences relate to plug systems, protective measures, mains systems, testing procedures, and the design of electrical installations, among other things. Here is an overview:

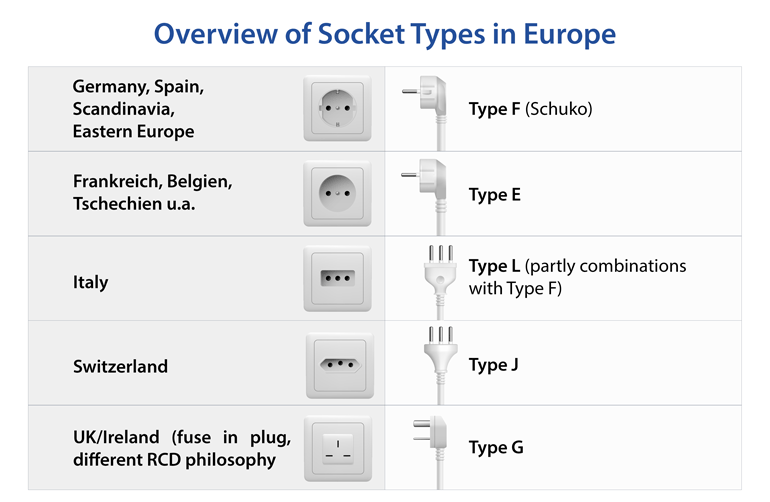

a) Plug systems & protective conductors
In Europe, for example, there are various plug systems and protective conductor solutions that differ in terms of shape, fusing, and RCD use.
| Germany, Spain, Scandinavia, Eastern Europe: | Type F (Schuko) |
| France, Belgium, Czech Republic, etc.: | Type E |
| Italy: | Type L (partly combinations with F) |
| Switzerland: | Type J |
| UK / Ireland (fuse in the plug, different RCD philosophy): | Type G |
Table: Differences between EU plugs
Impact: These differences affect device compatibility, the use of adapters, and the planning of outlet circuits.
b) Power systems (TT / TN-C / TN-S)
| France / Belgium / parts of Spain: | widely used TT system |
| Germany / Austria / many Nordic countries: | commonly TN-C-S (PEN separation at the building connection) |
| UK: | depending on the region TN-S, TN-C-S or TT |
Table: Differences between power systems
The different power systems in Europe have a decisive influence on the protective measures required for electrical installations and equipment:
- Different design of the earthing system:
In Europe, power systems differ in the type of earthing, which means that protective conductors and neutral conductors are connected differently, affecting safety in the event of fault currents.
- RCD requirement:
In TT systems, the use of residual current devices (RCDs) is mandatory.
Without an RCD in a TT system, automatic shutdown cannot be reliably guaranteed, which can lead to life-threatening voltages on enclosures in the event of a ground fault due to incorrect grounding resistance.
- Other tripping conditions and loop impedances:
Different types of networks result in different loop impedances, so that RCDs are necessary in TT systems, while fuses are usually sufficient in TN systems.
c) Installation philosophy
Installation philosophies vary considerably within Europe, particularly with regard to the design of socket circuits, the use of circuit breakers and RCDs, as well as the grounding and tripping conditions of protective devices.
Germany:
- RCD protection for all sockets ≤ 32 A in new installations is standard
- Often several rooms per circuit, e.g., 16 A fuse, 1.5–2.5 mm² wires
- Many specific rules, e.g., installation zones, DIN 18015 (planning of residential installations)
France (NF C 15-100):
- Very strictly defined minimum number of sockets and circuits per room
- Often more circuits, but with lower fuses (e.g., 16 A for sockets, 20 A for kitchens or special consumers) - TT system -> consistent use of RCDs for personal protection
UK (BS 7671):
- Ring circuits with 32 A are characteristic of the UK - Color codes: formerly red/yellow/blue, now EU-compliant: brown/blue/green-yellow (therefore, special attention is required for older systems!) - Documentation, certificates, and scheduled inspections (periodic inspection) have particularly high priority
Scandinavia:
- Generally high safety standards, early widespread RCD requirement
- Lots of timber construction and, as a result, particularly strict fire protection requirements for cable laying, often double-insulated wires or distance from combustible materials
d) Cable and wire types and laying methods
When it comes to electrical installations, all European countries follow the overarching IEC and CENELEC standards. Nevertheless, there are national differences that planners and installers should be aware of: - The designations of the wires vary – for example, NYM-J in Germany or H05VV-F in other countries. - The permissible installation methods, minimum cross-sections, and fuses may also vary slightly. - In addition, fire safety requirements may be stricter in some countries, especially for special structures such as tunnels or high-rise buildings, where halogen-free, low-smoke, or fire-resistant wires may be required.
Careful comparison of national regulations is therefore crucial to ensure both safety and compliance with standards.
Mechanical engineering – much more harmonized by EU law
In mechanical engineering, regulations and safety standards are highly harmonized by EU directives, so that design, electrical equipment, and safety are largely regulated in a uniform manner in most countries.
EU-wide uniform basis
Machinery Directive 2006/42/EC (soon to be replaced by EU Machinery Regulation 2023/1230)
A uniform principle applies to machinery in the EU and the EEA: the CE marking indicates conformity with the applicable safety requirements. This is based on harmonized standards, such as:
EN ISO 12100 – Risk assessment
EN ISO 13849 – Safety control systems
EN 60204-1 – Electrical equipment of machines
EN ISO 14120, 13850, 13855 – Protective devices and emergency stop A machine that has been correctly designed in accordance with these standards and bears the CE marking may be placed on the market throughout the EEA under uniform legal conditions.
Differences in regulations and implementation
When commissioning and operating machinery in Europe, national specificities must be taken into account in addition to EU requirements. These include legal, technical, and organizational requirements, particularly in four areas: occupational safety and testing obligations, language and documentation requirements, electrical design and connection conditions, and industry-specific regulations. These differences are clearly presented below.
a) Occupational safety & testing requirements
National laws and regulations (e.g., BetrSichV, ArbSchG, DGUV in Germany) determine testing intervals and operator obligations. Even if the machine itself is the same, acceptance and documentation can vary from country to country.
- UK/Ireland: different emergency stop philosophy
- Scandinavia: high safety and ergonomic requirements
- Switzerland: EU rules with their own transition periods
b) Languages & documentation:
Operating instructions, warning notices, and signs must be available in the official language; in some cases, they must be multilingual for several countries.
c) Electrical design & mains
Connection to TN-S, TN-C-S, or TT; observe national requirements for short-circuit current, protective measures, and grounding. Solution often via wide-tolerance power supplies and clear connection specifications.
d) Industry & country specifics
| UK / Ireland: | Different practices regarding safety extra-low voltage and emergency stop philosophy | Underlying standards remain harmonised at European level |
| Scandinavia: | Particularly high requirements for safety and ergonomics | Mostly internal company standards of large enterprises, no statutory requirements |
| Switzerland / EEA (non-EU): | Adopts many EU rules, in some cases with its own transition periods and formal requirements | Adjustments in implementation, formal differences |
Table: Industries Countries Specifics
For international planning: Implementation recommendations for electrical installation and mechanical engineering
If you work internationally in Europe or plan plants and machines, the following recommendations apply:
In electrical installation (buildings):
Always take into account the national standard of the target country (e.g., BS 7671, NF C 15-100, DIN VDE 0100, NEN 1010)
Pay particular attention to:
- Socket system & protective conductor
- Mains system (TT vs. TN-C-S)
- RCD requirements, short-circuit and earthing conditions
- Fire protection (cable types, escape routes, wooden buildings)
Example: Electrical installation in a European residential building:
An electrician installs sockets in a vacation home in France. He must comply with NF C 15-100, take the TT mains system into account, and use RCDs. He also checks short-circuit and grounding conditions and uses halogen-free wires due to the wooden construction. This means that the electrical installation complies with regulations and is considered safe, even if it differs in detail from a German installation.
In mechanical engineering:
Design according to harmonized EN/ISO standards as far as possible in order to be well positioned throughout Europe.
Also note:
- Languages for documentation & labeling
- Country-specific operator and testing requirements
- Grid system and connection conditions in the respective target country
Example: Practical example of mechanical engineering in a carpentry workshop
A carpentry workshop in Germany purchases a CNC machine from Italy. The machine is designed in accordance with harmonized EN/ISO standards and bears the CE mark, meaning that it can be used throughout Europe. To ensure safe operation, the carpentry workshop also pays attention to German-language operating instructions, adaptation to the TN-S network, and compliance with national testing and operator obligations. This means that the machine can be operated safely, even if the documentation and connection conditions have been adapted to German law.
Conclusion:
Using sockets, electrical installations, and mechanical engineering correctly
Compliance with standards and regulations is essential in both the electrical installation of buildings and mechanical engineering. Whether in your own home, in a carpentry workshop, or when planning industrial plants, the importance of carefully implementing national rules is particularly evident when it comes to sockets and protective measures. At the same time, you should be aware of the differences between other European countries in order to operate machines and installations safely and in accordance with standards. Those who observe the applicable regulations and consistently apply the basic safety rules ensure safety, legal certainty, and long-lasting systems.
