Harting plugs
Han HvE / HvES inserts

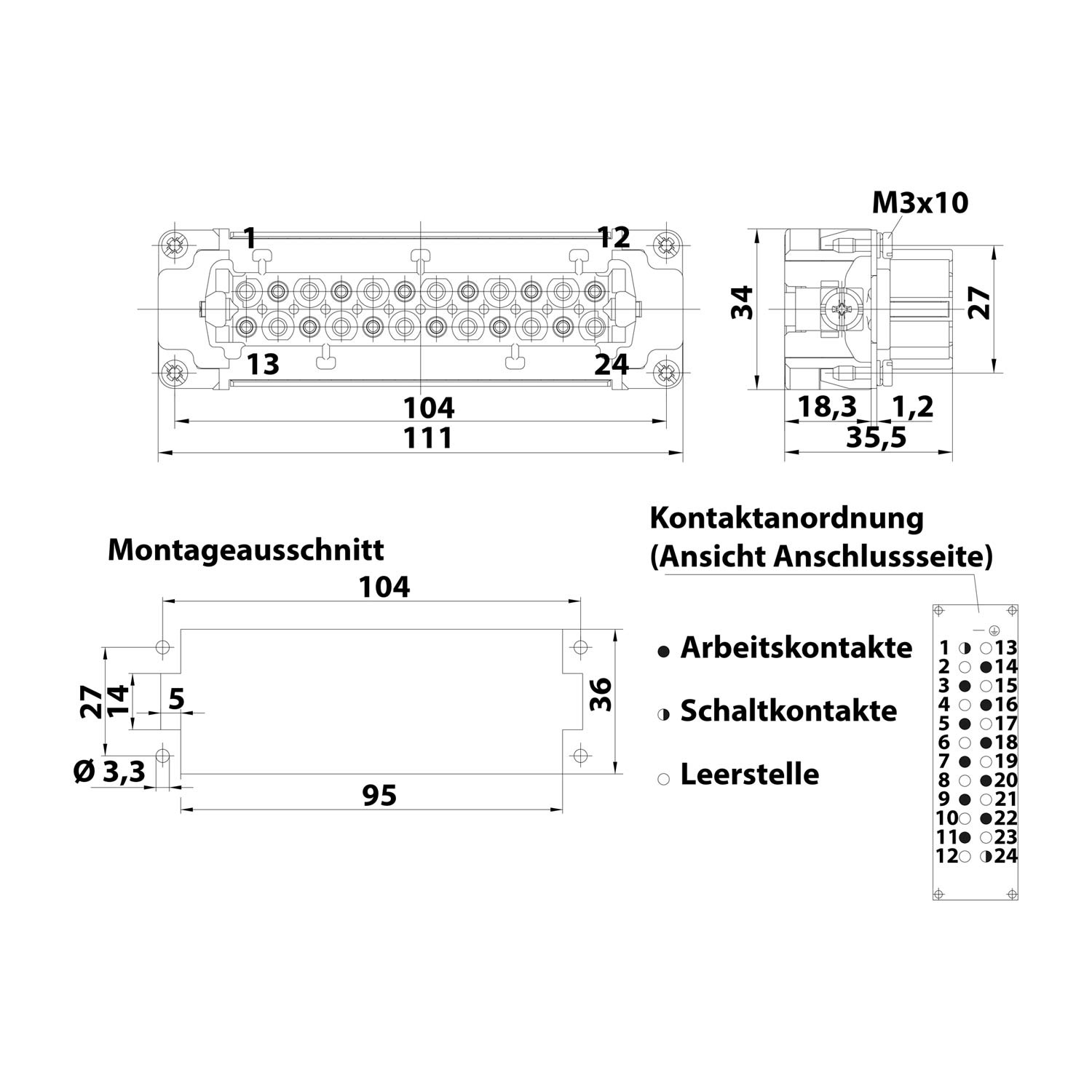

Harting Han® Hv E inserts
- Application in the high-voltage range up to 830 V
- Available in multiple connection technologies
| Number of contacts | 3, 6, 10, 12, 20 |
| Additional contacts | + 2 additional relay contacts, + 4 additional relay contacts |
| Rated current | 16 A |
| Rated voltage | 830 V |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
| Rated voltage in accordance with UL | 600 V |
| Rated voltage in accordance with CSA | 600 V |
| Insulation resistance | >1010 ? |
| Contact resistance | <=1 m? |
| Temperature limits | -40 ... +125°C |
| Mating cycles | >=500 |
| Insert material | polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Contact material | copper alloy |
| Material flammability class in accordance with UL 94 | V-0 |
|
Standards and approvals |
|
Note: Special Han Hv E® housings are required for the Han Hv E® screw connection
Harting Han® 16 / 32 Hv E inserts
- Application in a high-voltage range up to 690 V
- No special tools required
| Number of contacts | 16, 32 |
| Additional contacts | + 2 additional relay contacts, + 4 additional relay contacts |
| Rated current | 16 A |
| Rated voltage conductor-earth | 400 V |
| Rated voltage conductor-conductor | 690 V |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
| Rated voltage in accordance with UL | 600 V |
| Rated voltage in accordance with CSA | 600 V |
| Insulation resistance | >1010 ? |
| Contact resistance | <=1 m? |
| Temperature limits | -40 ... +125°C |
| Mating cycles | >=500 |
| Insert material | polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Contact material | copper alloy |
| Material flammability class in accordance with UL 94 | V-0 |
|
Standards and approvals |
|
Note: Special Han Hv E® housings are required for the Han Hv E® screw connection
Harting Han® Hv E inserts
- Application in a high-voltage range up to 830 V
- Reliable cage-clamp connection
- No special tools required
- Vibration-tested
| Number of contacts | 3, 6, 10, 12, 20 |
| Additional contacts | + 2 additional relay contacts, + 4 additional relay contacts |
| Rated current | 16 A |
| Rated voltage | 830 V |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
| Rated voltage in accordance with UL | 600 V |
| Rated voltage in accordance with CSA | 600 V |
| Insulation resistance | >1010 ? |
| Contact resistance | <=3 m? |
| Temperature limits | -40 ... +125°C |
| Mating cycles | >=500 |
| Insert material | polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Contact material | copper alloy |
| Material flammability class in accordance with UL 94 | V-0 |
|
Standards and approvals |
|
Please note: No mating compatibility with Han Hv E® screw/crimp connection
