Harting plugs

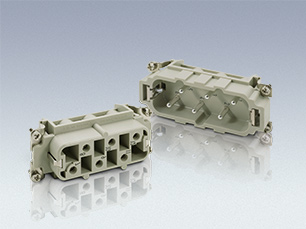

Han HsB inserts - for higher currents
- Ideal voltage supply applications
- Crimp termination
- Screw termination with wire protection
- Connection with standard screwdriver
| Number of contacts | 6, 12 |
| Rated current | 35 A |
| Rated voltage (phase to earth) | 400 V |
| Rated voltage (phase to phase) | 690 V |
| Rated impulse voltage | 6 kV |
| Pollution degree | 3 |
| Rated voltage according to UL | 600 V |
| Rated voltage according to CSA | 600 V |
| Insulation resistance | >1010 ? |
| Volume resistance | <=1 m? |
| Limiting temperature | -40 ... +125°C |
| Mating cycles | >=500 |
| Insert material | polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Contact material | copper alloy |
| Material flammability class in accordance with UL 94 | V-0 |
|
Standards and approvals |
|
