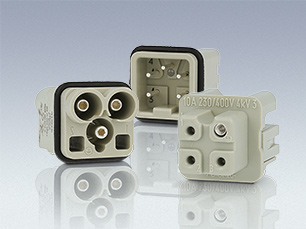

Han® 3A inserts
- Innovative Han-Quick Lock® connection technology with reduced
- assembly times
- No special tools required
- Suitable for the metal and plastic housings of the Han® 3A series
- For currents of up to 10 A
| Number of contacts | 3 |
| Rated current | 10 A |
| Rated voltage conductor-earth | 230 V |
| Rated voltage conductor-conductor | 400 V |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
| Rated voltage in accordance with UL | 600 V |
| Insulation resistance | >1010 ? |
| Temperature limits | -40 ... +125°C |
| Insert material | polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Contact material | copper alloy |
| Material flammability class in accordance with UL 94 | V-0 |
|
Standards and approvals |
|
Han® 3A inserts with HARAX® connection technology
| Number of contacts | 3 |
| Rated current | 10 A |
| Rated voltage conductor-earth | 230 V |
| Rated voltage conductor-conductor | 400 V |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
| Insulation resistance | >1010 ? |
| Temperature limits | -40 ... +125°C |
| Mating cycles | >=500 |
| Protection class in accordance with IEC 60529 | IP65, IP67 |
| Insert material | polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Contact material | copper alloy |
| Material flammability class in accordance with UL 94 | V-0 |
|
Standards and approvals |
|
Han® 4 A inserts
- Innovative Han-Quick Lock® connection technology with reduced assembly times
- No special tools required
- Suitable for the metal and plastic housings of the Han® 3A series • For currents of up to 10 A
| Number of contacts | 4 |
| Rated current | 10 A |
| Rated voltage conductor-earth | 230 V |
| Rated voltage conductor-conductor | 400 V |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
| Rated voltage in accordance with UL | 600 V |
| Insulation resistance | >1010 ? |
| Temperature limits | -40 ... +125°C |
| Mating cycles | >=500 |
| Insert material | polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Contact material | copper alloy |
| Material flammability class in accordance with UL 94 | V-0 |
|
Standards and approvals |
|
Han® 4A SC inserts
- Suitable for housings of size Han® 3A, including the versions Han® M, Han® EMC and Han® HPR
- Up to the protection class IP68
- Suitable for Harting LWL SC contacts
- For multi mode fibres 50 - 62.5 / 125 µm and single mode fibres 9 / 125 µm
- 4 highly precise ceramic sleeves for minimal loss and maximum reliability
- 1 mm POF
| Number of contacts | 4 |
| Insulation resistance | >1010 ? |
| Temperature limits | -40 ... +125°C |
| Mating cycles | >=500 |
| Insert material | polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Contact material | copper alloy |
| Material flammability class in accordance with UL 94 | V-0 |
|
Standards and approvals |
|
