Mushroom buttons with latching and spring function
Mushroom buttons, palm switches and emergency buttons are characterised by easy operation. Typically, mushroom push buttons have two switch positions and stick out from the environment by shape and colour. Our assortment of high-quality and robust mushroom buttons from Schlegel includes illuminated, momentary and latching models for almost every purpose.
What is a mushroom button?
The mostly mushroom-shaped button, which has a signal colour, gives these types of pull or push button their name. Mushroom buttons are typically used as electromechanical switches and are frequently used as emergency stop switches for industrial systems, machine tools or in vehicles.
How does a mushroom button work?
Industrial push-button switches have two switch positions. A distinction is made between momentary and latching models. Mushroom buttons with a momentary control elements naturally return to their original position. If the control element of a latching palm switch is activated, it remains in this position and has to be pulled back to its original position.
Why do you need a mushroom button?
Mushroom buttons are used wherever machines, power tools, as well as conveyor systems and vehicles, need to be switched on and off quickly. Mushroom buttons are very often used as emergency stop switches, as they allow fast and intuitive operation in dangerous situations.
How do you connect a mushroom button?
Depending on the model, mushroom buttons have different connection options. For mechanical buttons, a contact element is also needed, while contact surfaces are already integrated into electromechanical models. The wire connection is typically by clamp.
What type of mushroom switches are there?
Mushroom or palm switches are designed either as mechanical or electromechanical buttons. As well as illuminated mushroom buttons, out assortment of models from Schlegel with momentary or latching function includes
- Mushroom button momentary: All our models have a button drop of 6 mm and are certified according to protection class IP 65. Apart from a square model for an installation opening with a size of 16.2mm, we also have round momentary emergency buttons with a diameter of 22.3mm in stock

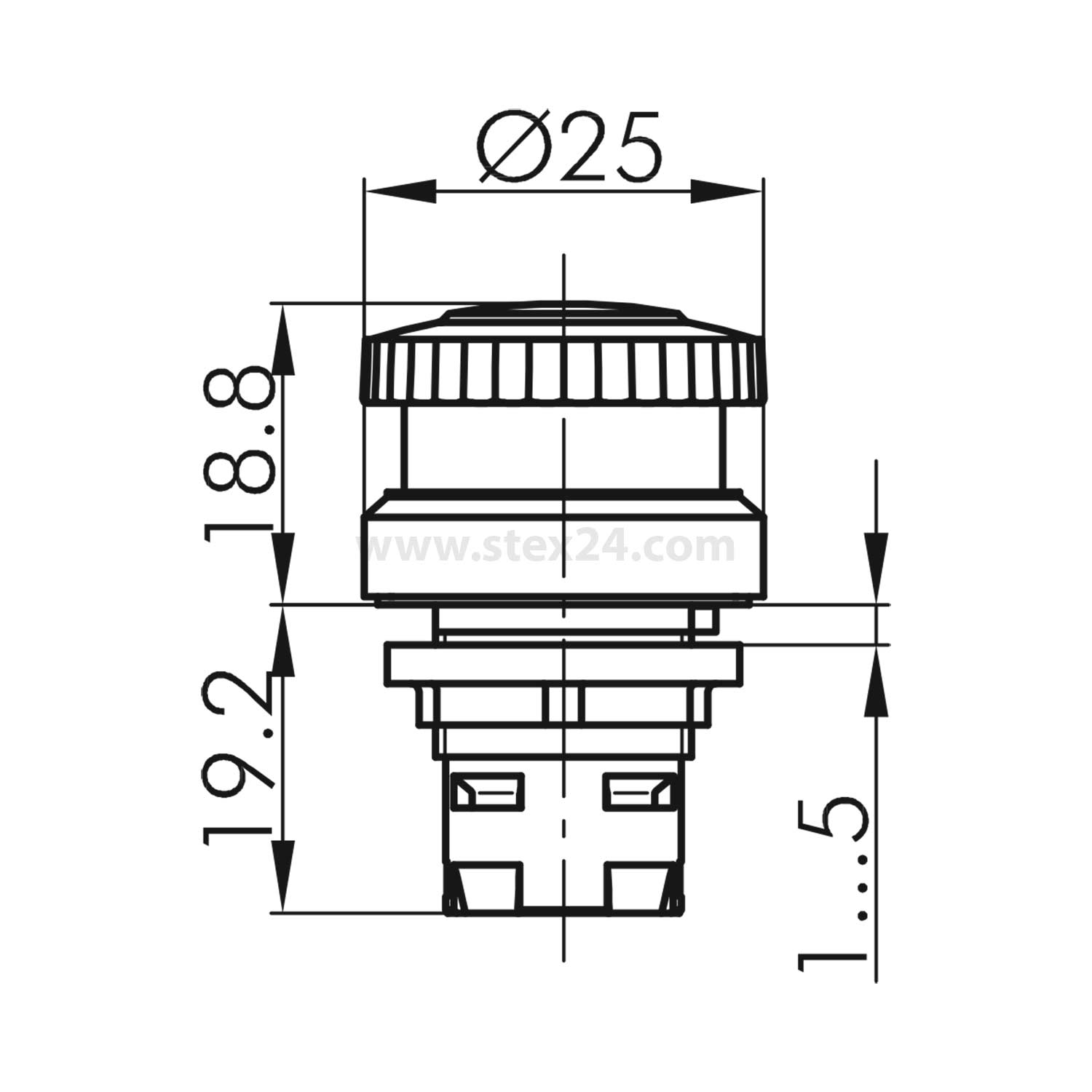

- Mushroom button latching: for applications where a palm switch with latching function is need, round and square Schlegel mushroom buttons are ideal. The Quartex-R model with 6 mm stroke fits installation openings with a diameter or 22.3mm and is certified in accordance with protection class IP65. We have circular latching mushroom buttons in stock in two sizes: 22.3mm and 30.5mm.

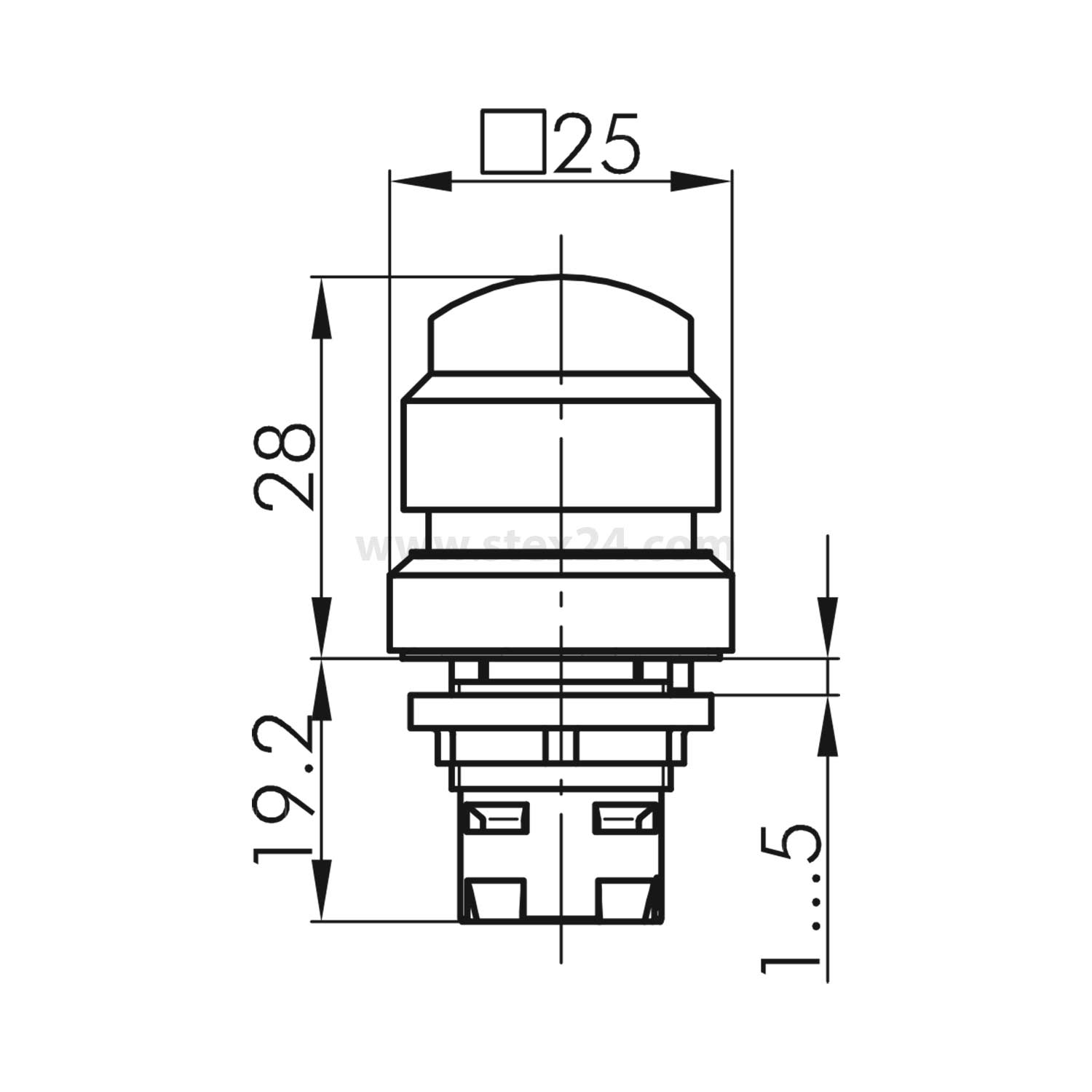

- Mushroom button with 3mm and 6mm stroke: We have square and clockwise-turning lever buttons from the Schlegel Oktron series, as well as robust square and circular emergency buttons with a button drop of 3 mm. All three models are illuminated and certified in accordance with protection class IP65. Our assortment also includes unilluminated emergency buttons with a button drop of 6mm, either round or square.
We have Schlegel mushroom buttons in stock of different sizes and for installation openings with a diameter of 16.2, 22.3, and 30.5mm. Our range includes industrial push button switches for with mushroom buttons for square installation openings with dimensions of 24x24mm
