The protective metal conduit - the solution for shielding and protecting cables
Wherever the installations of cables and wires need to be protected against mechanical influences and abrasion, protective metal conduits are the best solution.
Thanks to the noble appearance of the shiny metal, they are often used for sheathing cables and wires even in visible areas. One particularly noble-looking variant is the stainless steel conduit. However, the main purpose of protective metal conduits is to protect cables and lines from hot chips and mechanical damage. With its product properties, the flexible metal cable conduit meets the highest technical requirements and is very flexible. In order to find the suitable protective tube for every application, the protective metal conduits are available in different versions.
The range includes high-quality and flexible protective metal conduits from the Flexa brand manufacturer. Thanks to its structure, the material metal offers maximum protection and fulfils the Ex standards according to EN 1127-1 and VDE EN/IEC 61386-23. The mechanical properties such as the high flexibility, tensile strength and torsional strength ensure straightforward cladding of cables and wires. The metal conduit is heat-resistant and can therefore be used as reliable cable protection even under conditions involving high temperatures.
Application & Properties of protective metal conduits
The different versions of the electrical conduit made of metal make a broad range of uses in various industries possible. The different product variants are convincing with their excellent product properties with regard to mechanical stress, environmental and chemical properties as well as extensive oil resistance. As a flexible metal tubing with sheathing, the cable sheathing complies with protection class IP68.
Information such as the nominal size with inner and outer diameter, minimum bending radius in the moving and fixed state as well as the temperature range in which the protective metal conduit guarantees maximum protection are used to determine the right product.
The reliable electrical conduit is used in various industries and trades. For example, the protective tube made of metal is processed in the industries ofautomation, plant construction, mechanical engineering, shipbuilding as well as vehicle construction and as electrical wiring conduit.
Safe cable sheathing thanks to protective metal conduits
Whether the flexible metal cable conduit made of different materials is visible or not, the models with the FLEXAgraff-CU-PU, FLEXAgraff-AS, FLEXA SPR-AS, FLEXA SPR-PU, FLEXA SPR-PVC-AS and FLEXA SPR-VA profiles simply offer the right all-round protection for every application, taking into account the desired dimensions as well as the external conditions and quality requirements.
Reliable cable protection especially or shielding
With a bare protective metal conduit, new or retrofit installations of cables and wires are protected against mechanical influences and abrasion. The shiny metals offers a beautiful appearance, which is why this sheathing is also often implemented wherever the cable protection is visible. Due to the excellent product properties, the flexible conduit or also steel corrugated tubing fulfils the complex technical requirements with high flexibility. The various versions of the electrical conduits can be configured to match the application and environmental conditions.
The range from the Flexa brand manufacturer includes extremely flexible and high-quality protective metal conduits which, due to their basic and internal structure, fulfil the approval Ex according to EN 1127-1 and VDE EN/IEC 61386-23. The visually appealing cladding of cables and wires has ideal mechanical properties. The corrugated tubing made of steel guarantees a high shielding factor as well as high torsional strength. This makes it particularly suitable for heavy mechanical loads. The material withstands a temperature load of -50° C to 250° C.
The steel corrugated tubing offers perfect cable protection for versatile applications

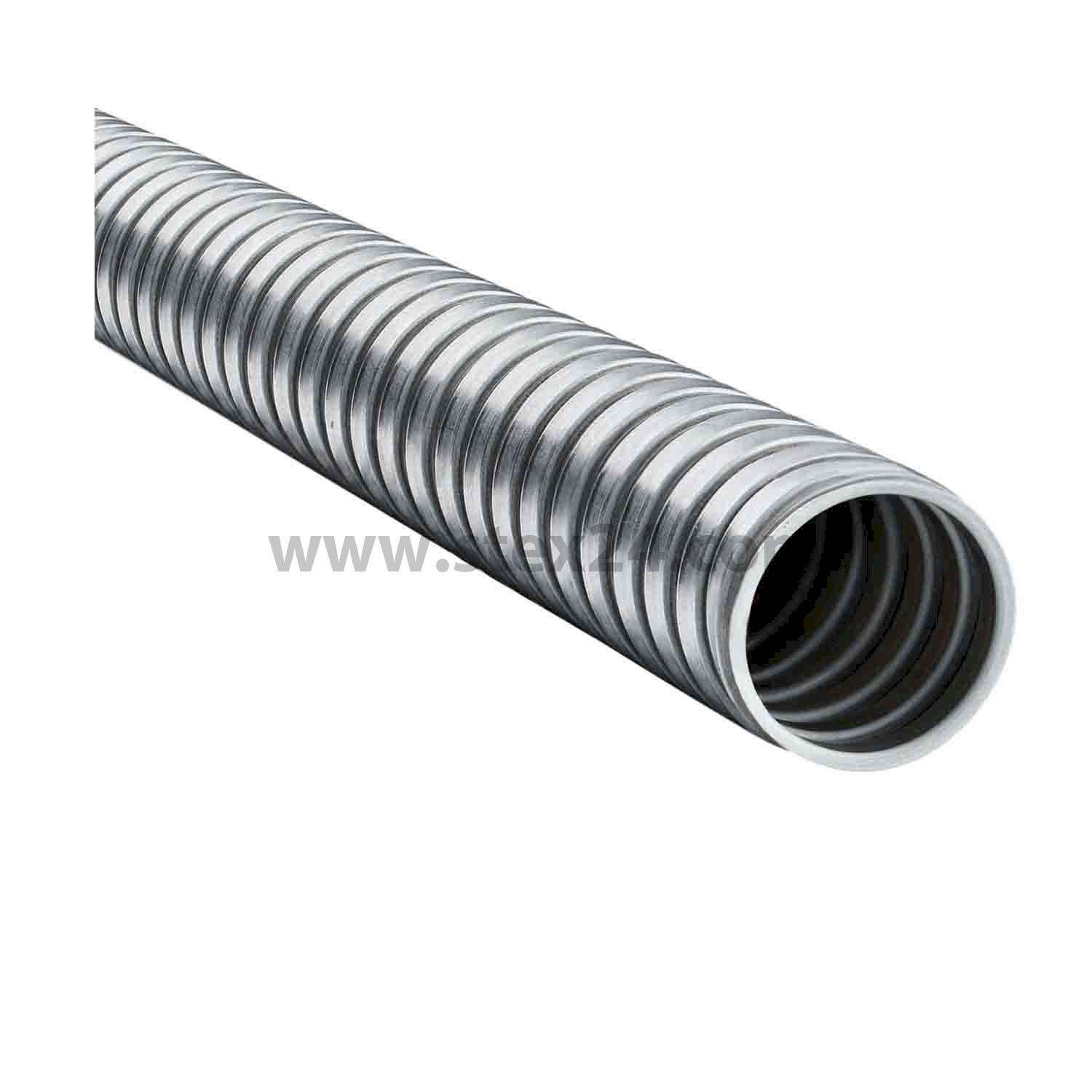

Both variants of the bare protective metal conduit have ideal product properties. The galvanised steel SPR-A protective metal conduit with a hooked profile is highly flexible and has high tensile strength.
The bare protective metal conduit with double-interlocked profile not only has high flexibility and tensile strength but also torsion-resistant properties. The construction, with its galvanised cold strip DC03/04 according to EN 10139, provides even more corrosion protection.
Both cable sheathings comply with protection class IP40. To generate the right product, the corrugated tubing is specified in the different nominal sizes in inner and outer diameter as well as the minimum bending radius in the moving and fixed state.
The reliable cable protection is implemented in a wide range of applications. It is used as a visually appealing protective tube in automation, plant construction, mechanical engineering, shipbuilding as well as vehicle construction, in rail vehicles and in electronics – wherever perfect protection against heavy mechanical load is necessary.
Perfect all-round protection thanks to the bare protective metal conduit
The cable sheathings in the FLEXAgraff-AS types with double-interlocked profile as well asFlexa SPR-AS with hooked profile guarantee maximum protection of wires and cables and look visually appealing thanks to the noble material - in every installation.
