The connection principle of PT Push-in® connection terminal blocks

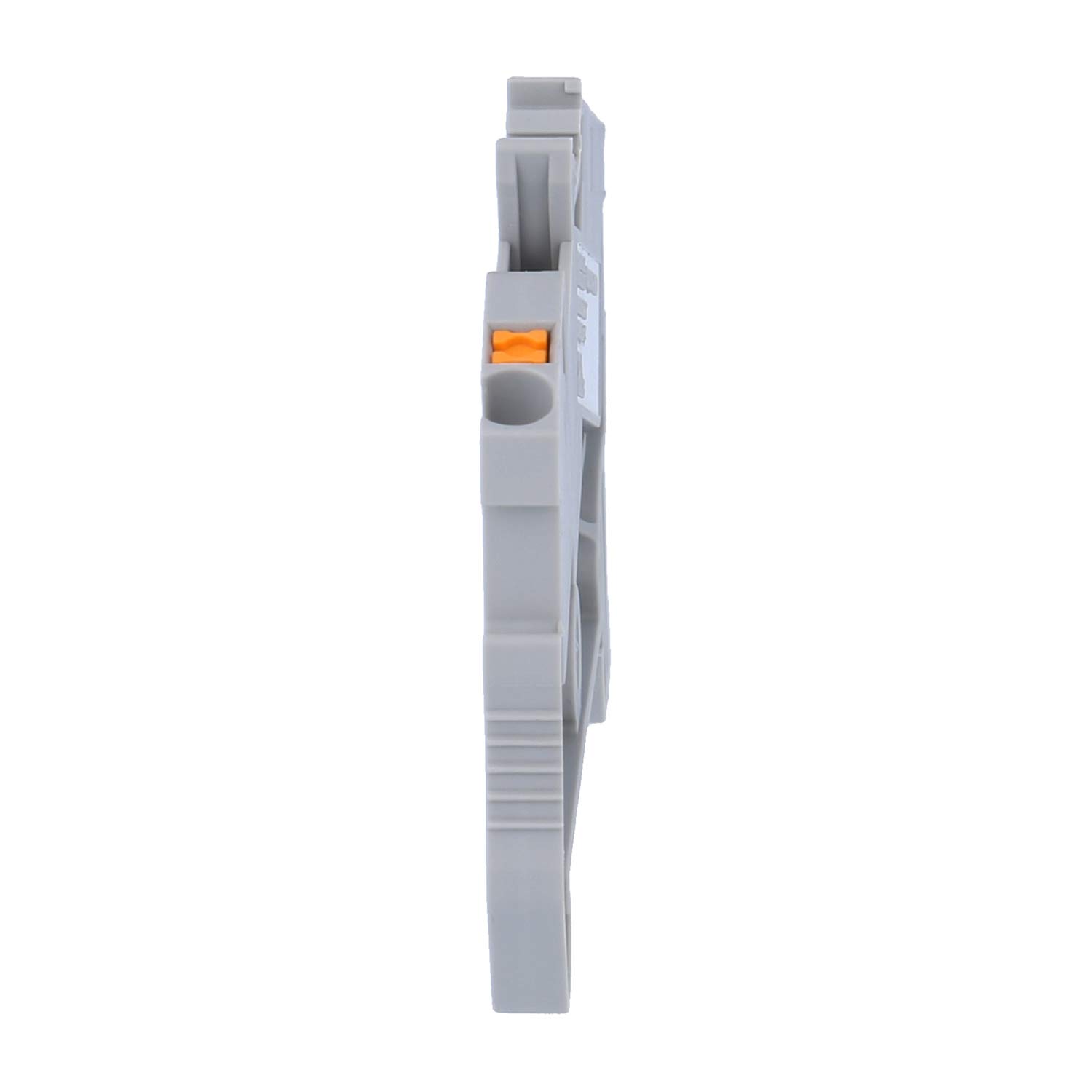

With the PT Push-In® connection terminal block, conductors are wired without any tools and without a loss of quality. There is a suitable terminal block for every requirement (with a conductor cross-section between 0.14 mm² and 95 mm²). The technology is simple: the rigid single core cable or the single core cable with a ferrule (with a conductor cross-section from 0.34 mm²) is pushed directly into the conductor shaft. The contact spring opens automatically and independently ensures the required pressure force against the current bar. The wiring is released mechanically via a colour-coded push button. All types of conductor can be conveniently connected via a front connection with the Push-in® technology. To wire flexible conductors with a conductor cross-section of 0.14 mm² or more without a ferrule, simply press the push button when inserting the conductor.

The advantages of Push-in technology: Easy insertion with the Push-in technology

The contact spring opens automatically when the conductor is inserted. The integrated push button releases the contact again: Push-in easily contacts terminal blocks and automation components. Up to 50% lower insertion force and tool-free wiring are the strengths of the Phoenix Contact terminal block technology for conductors with a cross-section between 0.14 mm² and 150 mm², directly via the contact springs. The safe, time-saving cabling has a high contact quality. Rigid conductors or conductors with ferrules that have a cross-section of 0.25 mm² or more are pushed directly into the conductor shaft. The contact spring opens automatically when the conductor is inserted and ensures the required pressure force against the current bar. High-quality surfaces made of copper alloys ensure minimal contact resistance. The contact spring is made of high-quality spring steel and provides for maximum contact force and a vibration-resistant and gas-tight connection.

The types of PT Push-in® connection terminal block "

• Feed-through terminal blocks
• PE terminal blocks
• Double-level terminal blocks
• Double-level PE terminal blocks
• Triple-level terminal blocks
• Triple-level PE terminal blocks
• Protective conductor terminal blocks
• High-current terminal blocks
• Diode terminal blocks
• Component terminal blocks
• Fuse terminal blocks
• Disconnect terminal blocks
• Initiator and actuator terminal blocks
• Blocked terminal blocks

1. Fatigue-free work thanks to the low insertion force
Easy insertion for rigid conductors or conductors pre-assembled with ferrules that have a conductor cross-section of 0.14 mm² or more, with the maximum conductor pull-out force at the same time.

2. Push button for releasing the contacts
It is easy to release the conductors via the push button, without direct contact with live parts. To wire flexible conductors of 0.14 mm² or more without ferrules, you just need to press the push button when inserting the conductor. Safe wiring and operation by means of the push button in a contrasting colour. This can be operated with all standard screwdrivers.

3. First choice in confined spaces
3.5 mm wide terminal blocks for space-critical applications. Connection of all types of conductor with a convenient front connection.

4. Extremely durable – full approval
The Push-in terminal blocks are vibration-resistant in accordance with the railway standard DIN EN 50155, shock- and corrosion-resistant in accordance with the current shipbuilding indexes and certified in the process engineering sector with the protection type “increased safety” Ex e. The terminal blocks have the full approval package for all industries worldwide and for safety thanks to a high flammability rating.

Accessories for PT Push-in® connection terminal blocks

You can find the original accessories, such as plug-in bridges, reducing bridges, isolating plugs or component connectors in the category “Terminal block accessories”. The appropriate original labelling accessories are available for you in the categories ”Terminal block accessories” and "Labelling – Marking materials”.
