Harting hoods and housings in size Han 10A
Harting connector housings of the Han 10A size/series made from die-cast aluminium or high-performance plastic are suitable for use in every industrial area. The housings are suitable for Harting inserts Han 10A, Han 15D, Han Staf 14 depending on the type with straight or lateral cable outlet or cable outlet on the front. Apart from the standard designs, we electromagnetically shielded Han 10A housings and eco models made from weather-proof plastic. A benefit of the Han 10A housings: they support the Harting Click & Mate technology for a drastically reduced installation time. The Harting Han 10A size, thanks to its narrow and space-saving design, is one of the standard housing for industrial applications.
Our Harting Han 10A housings at a glance
| Harting housing series: | Han EMC & EMC/B, Han Eco |
| Harting housing materials: | metal |
| Suitable Harting inserts: | Han 10A, Han 15D, Han Staf 14 |
| Number of pins: | 10, 14, 15 |
| Connection technologies: | screw connection, crimp connection, solder connection |
| Voltage: | max. 250 V |
| Current: | max. 16 A |
Han 10A EMC
Cables that need to be shielded against electromagnetic interference are best installed in 10A EMC connector housings. We offer bulkhead mounted housings and hoods with straight and lateral cable outlet, which can be closed by single locking levers. Our Harting Han 10A EMC housing:
- Han 10A EMC hood: available in a high profile either with straight or lateral cable outlet and three thread sizes (M25, PG16, PG21). All EMC hoods fulfil the requirements of protection class IP65.

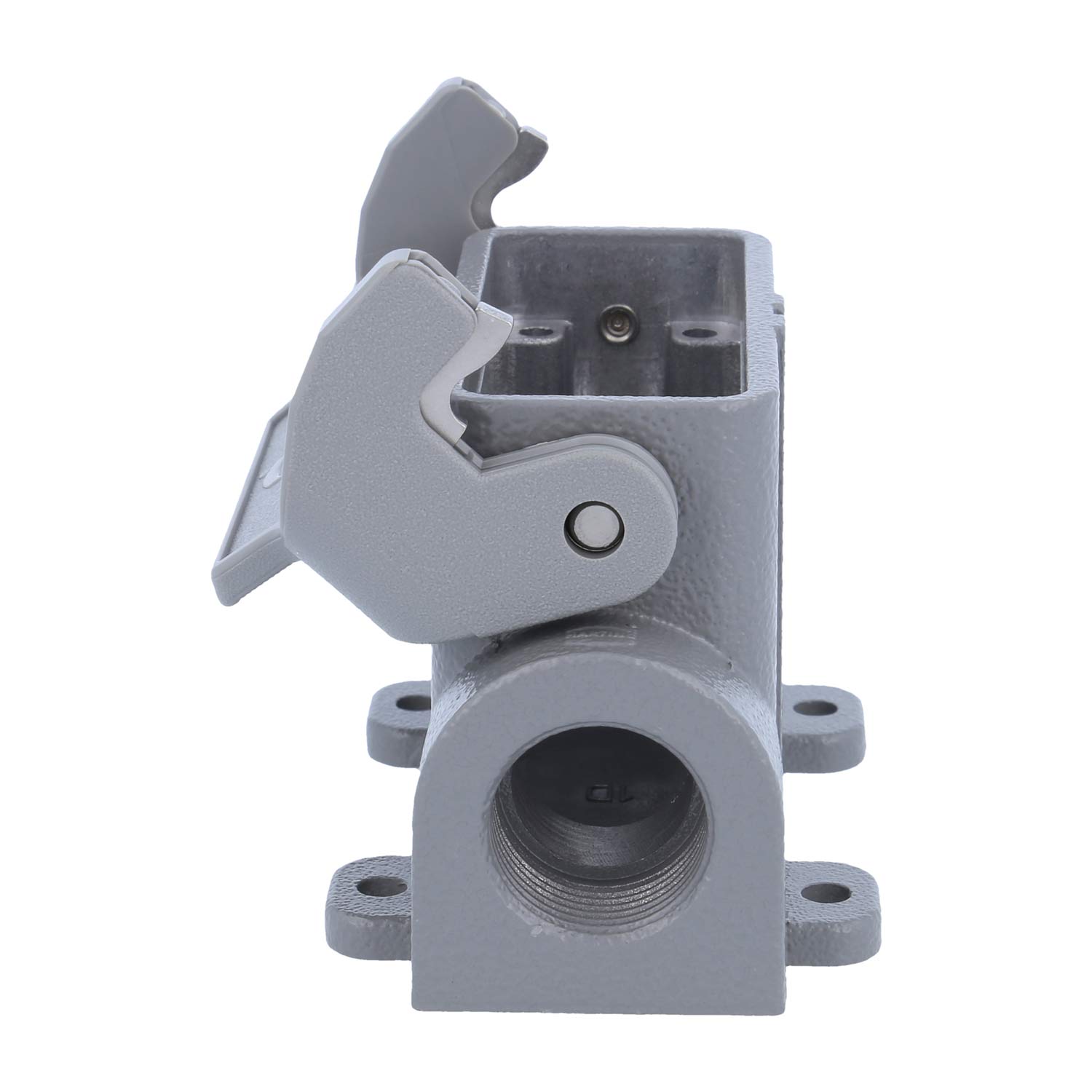

- Han 10A EMC bulkhead mounted housing: Low profile with an Easy Lock lever and high-quality seal made from NBR (nitrile rubber). Suitable for a temperature range from -40°C to 125°C.
Han 10A standard housing
Our Han 10A standard housings are characterised by their excellent price-performance ratio. Thanks to the robust construction of high-strength die-cast aluminium, they are corrosion resistant and very long-lived. Our assortment includes all types for almost every area of application and space available. Whether bulkhead mounted, hood, flush mounted, cable to cable or cup housing: We have models of the Han 10A series without or with lateral, straight cable outlets or cable outlets on the front. Apart from high profile versions, we also have the following low profile models for applications with limited space available.

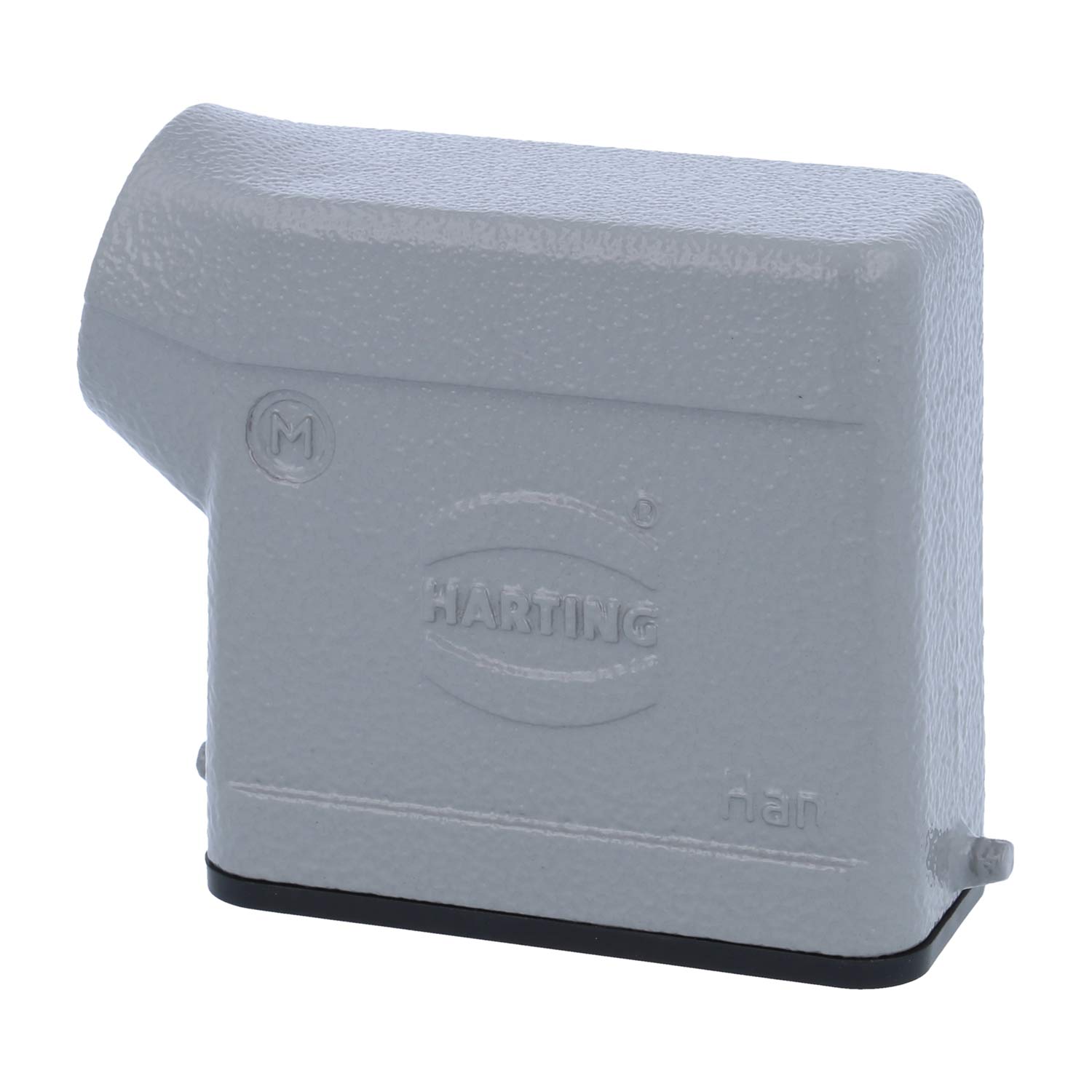

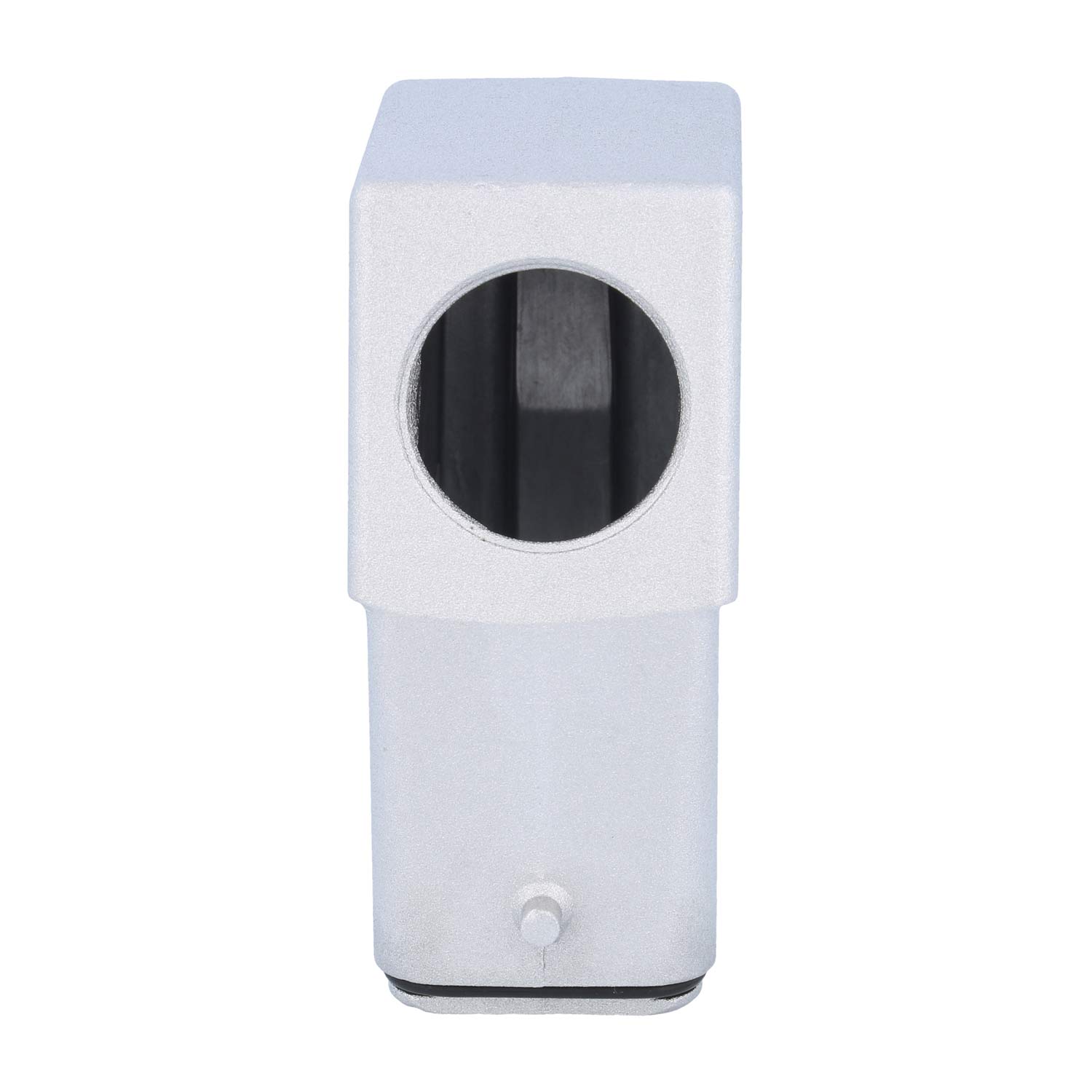

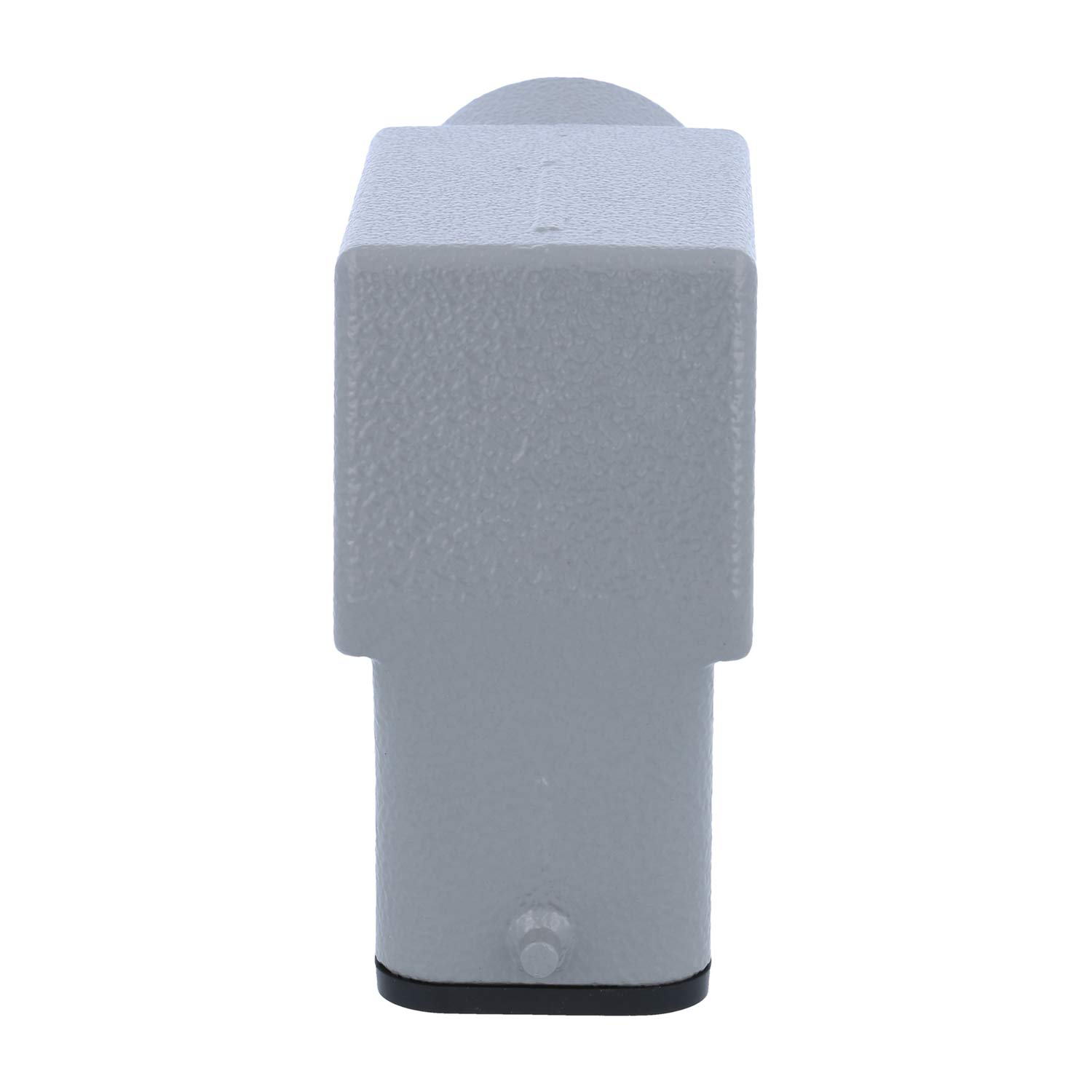

- Han 10A standard hood with lateral cable outlet. Available in three thread sizes M16, M20 and PG13.5 each with a lever on the lower section.

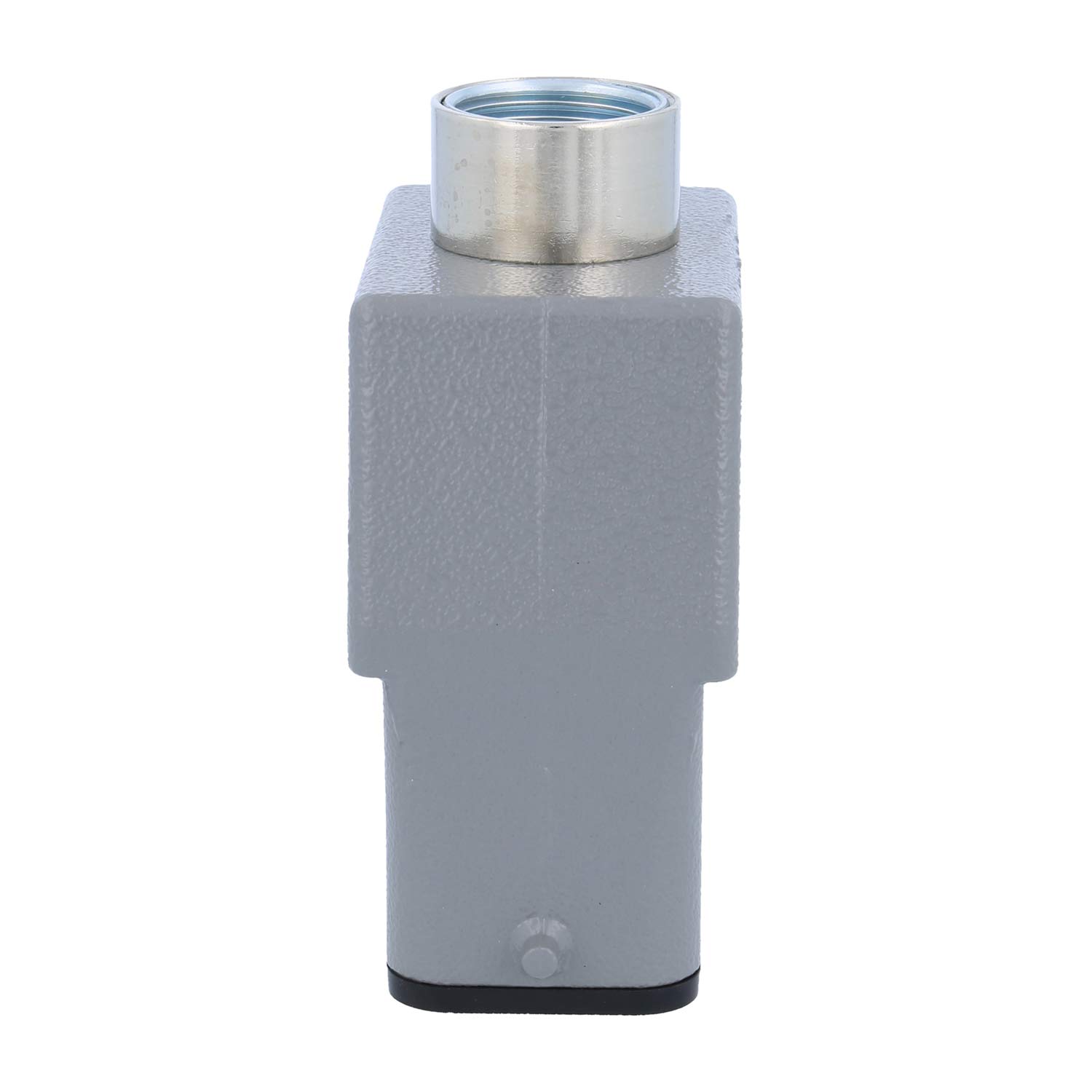

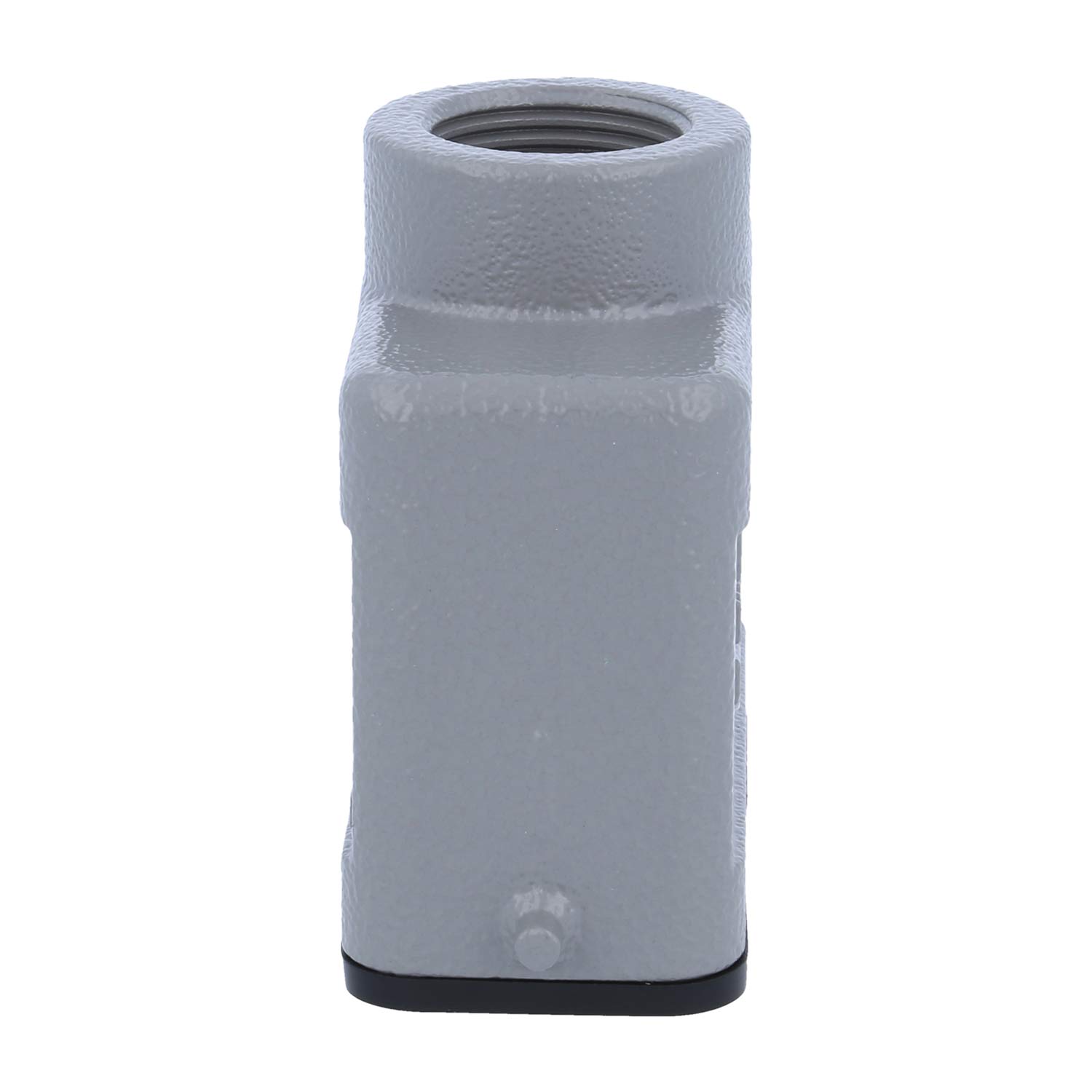

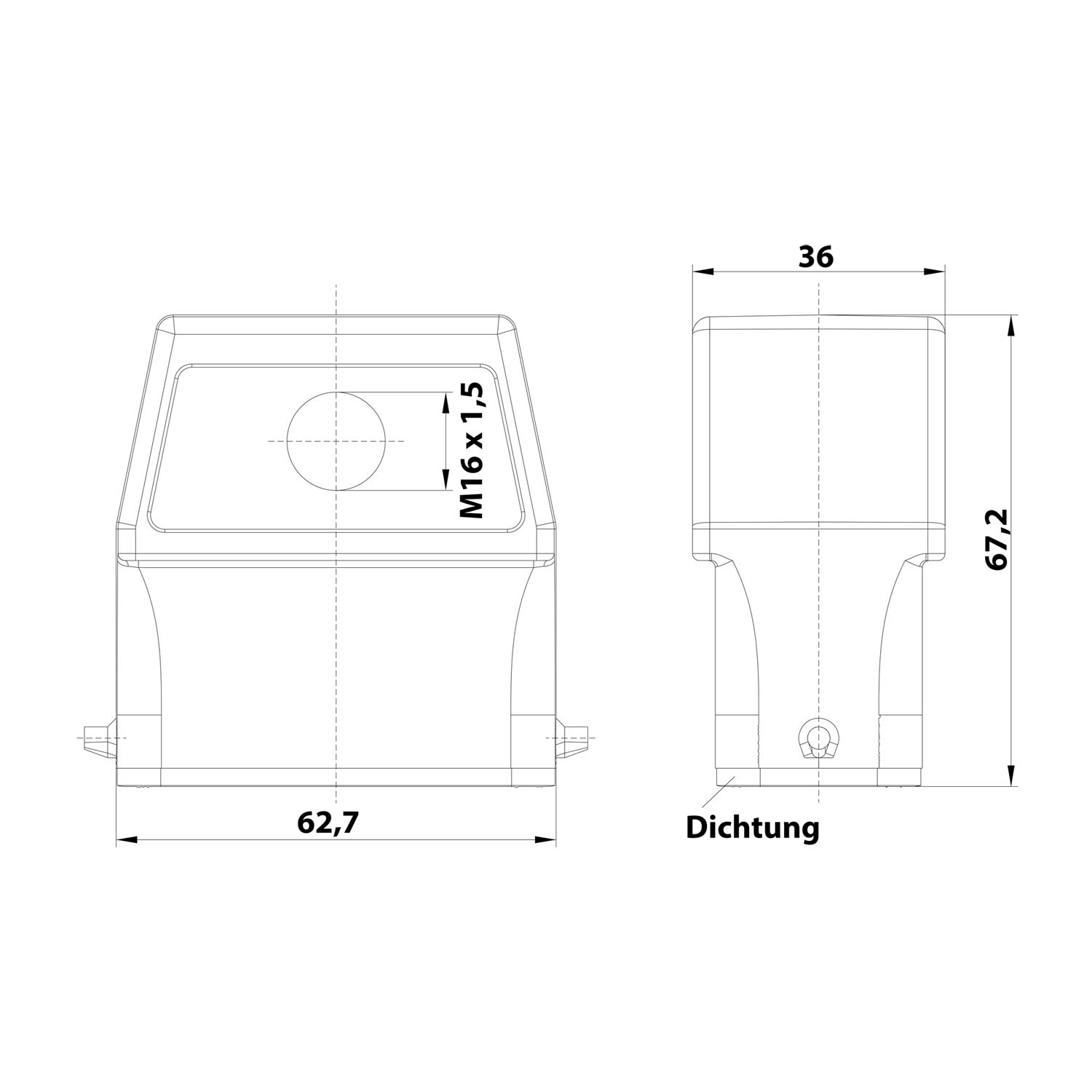

- Han 10A standard hoods made from die-cast aluminium and with IP65 certification. Available with a straight cable outlet in thread sizes: M16, M20 and PG13.5.

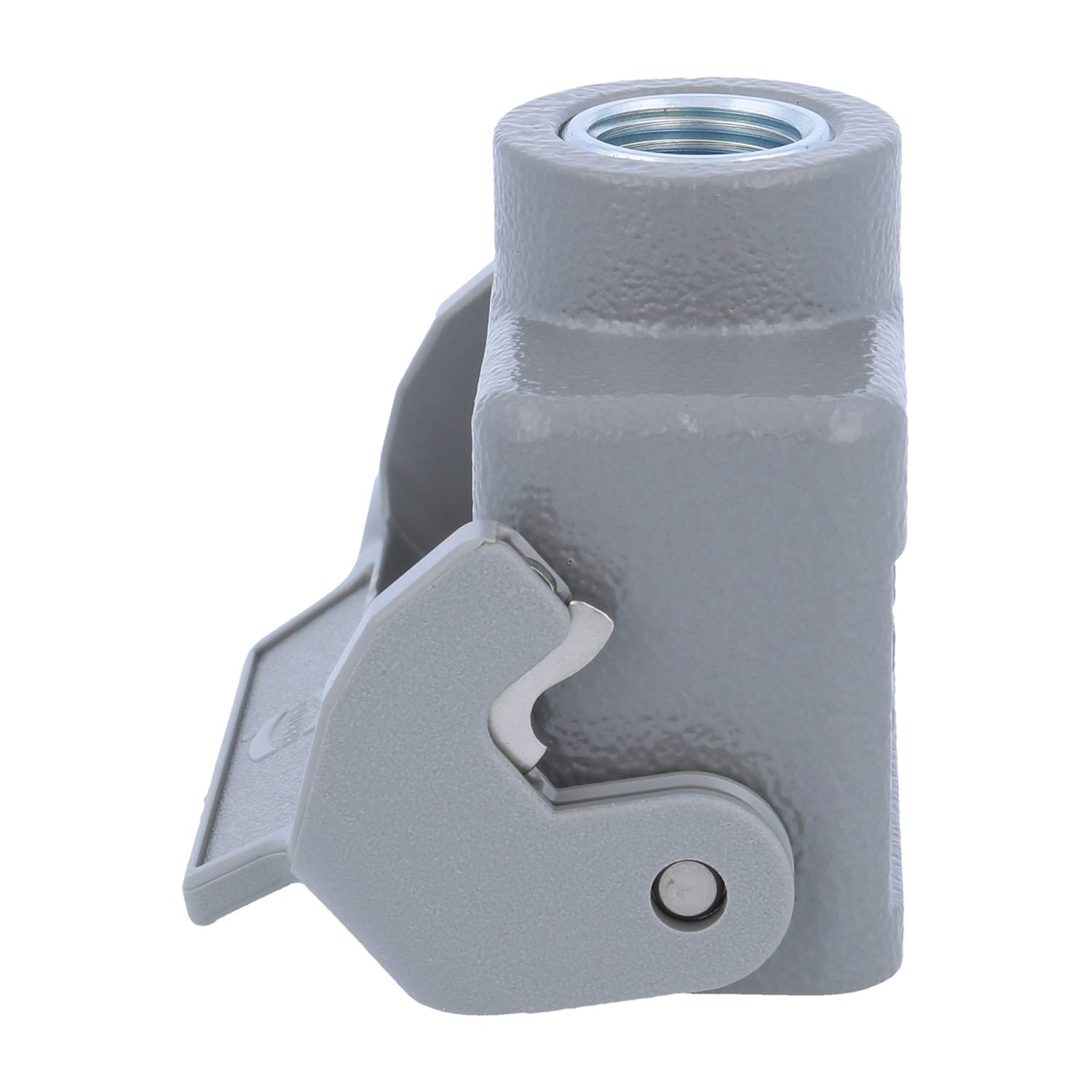

- Han 10A standard cable to cable housing with straight cable outlet, in thread sizes: M16, M20 and PG16.5.
| Limit temperature | -40 ... +125 °C |
| Protection class according to IEC 60529 | IP65 |
| Protection class according to UL 50 / UL 50E | 4, 4X, 12 |
| Housing material | Die-cast aluminium |
| Housing surface | Powder-coated |
| Colour of housing | RAL 7037 (dust-grey) |
| Material of seal | NBR |
| Material of lock | Polycarbonate (PC), stainless steel |
| Colour of lock | RAL 7037 (dust-grey) |
| Material flammability class according to UL 94 (locking lever) | V-0 |
Han 10A Eco
Corrosion-resistant, lightweight and fully compatible with metal covers of sizes 10A and 16A: The Han10A Eco housings are available as bulkhead mounted housings, surface mounted housings, cable to cable housings and hoods. For easy switch cabinet cabling, they have either a lateral and straight cable outlet and are compatible with 10A and 16A metal hoods. Our assortment of Harting Han 10A housings includes the following types:
- Han 10A Eco bulkhead mounted housing: as a version for industrial or outside applications. With a plastic single locking lever, with and without protective cap.
- Han 10A Eco flush mounted housing: with lateral cable outlet and a single locking lever for locking. Also available as a version with protective cap for outside applications.
- Han 10A Eco cable to cable housing: available with a cable gland in sizes M20 or M25. The cable to cable housing has a straight cable outlet. Locking is achieved with a stable plastic single locking lever.
