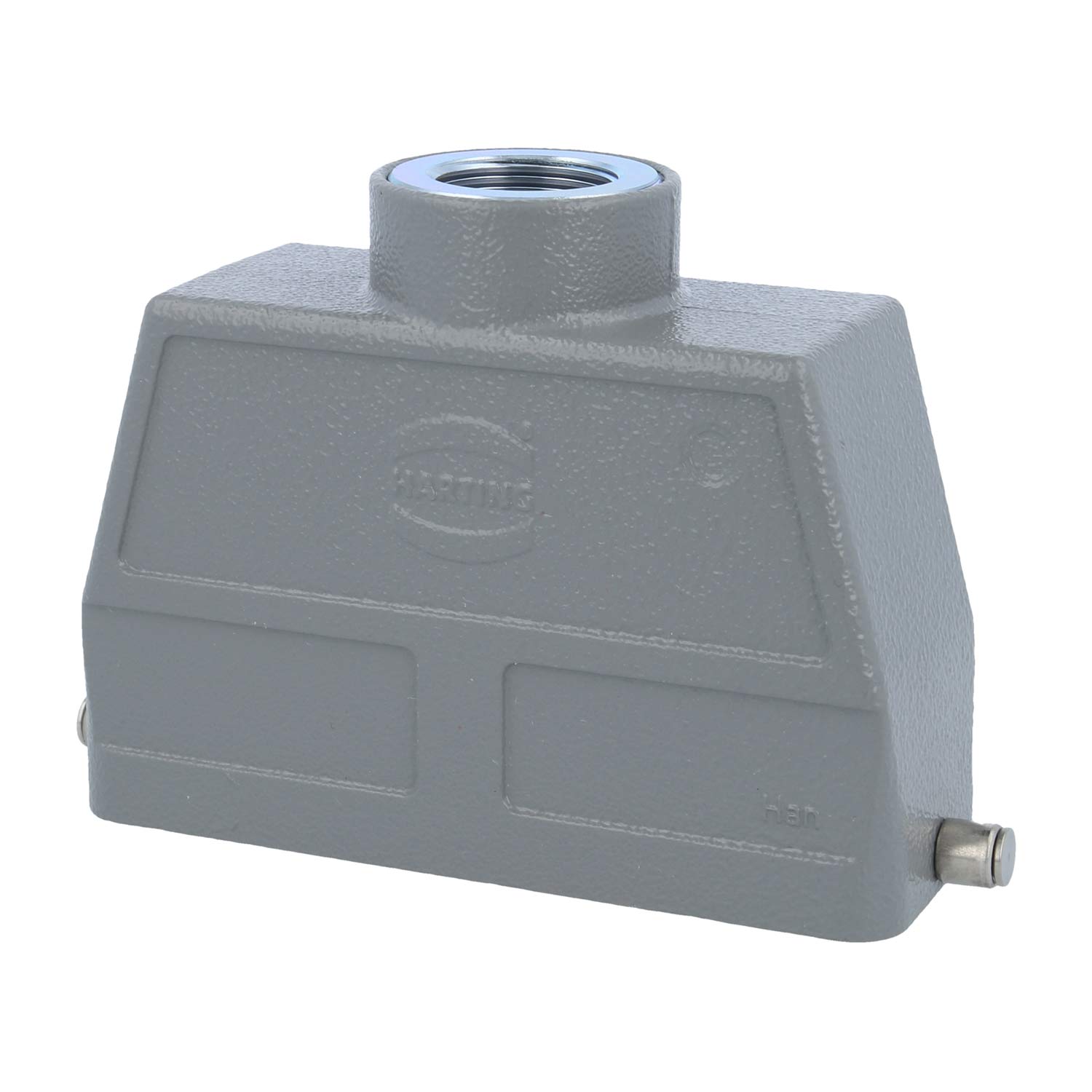

Housings in size Han 24B

Housings with lots of space for a large number of inserts

Thanks to their variability, Han 24B connectors are suitable both for smaller and large projects in industry. Connector inserts with 10 to 108 pins offer enough room for complex projects. Our Han 24B housings, which we have in stock in every size and type, are perfectly matched to the Harting connectors. Whether bulkhead mounted, flush mounted or cable to cable housings: We offer Han 24B housings, which withstand the hardest environmental conditions, are shielded and thanks to IP65/IP69K certification are not sensitive to penetrating water, dust and contact. In addition, the Han 24B housing series is extremely flexible with regard to locking: depending on the model the housings have single locking levers, double locking levers, central levers and a screw or bayonet locking system.

Our Harting Han 24B housings at a glance

Han 24B EMC

Cabling for sensitive measuring technology demands shielded Harting hoods and housings with EMC suitability. Our assortment of Han 24B EMC housings with electromagnetic shielding and for areas of use with a high ambient temperature includes all common types and shapes. We offer EM-suitable bulkhead mounted housings, flush mounted housings, hoods and cup housings as well as panel feed-through housings.

Han 24B standard housings

The proven and cost-effective standard housings made from die-cast aluminium are suitable for almost every area of use thanks to the large number of housing shapes.

Han 24B HvE / Hv ES

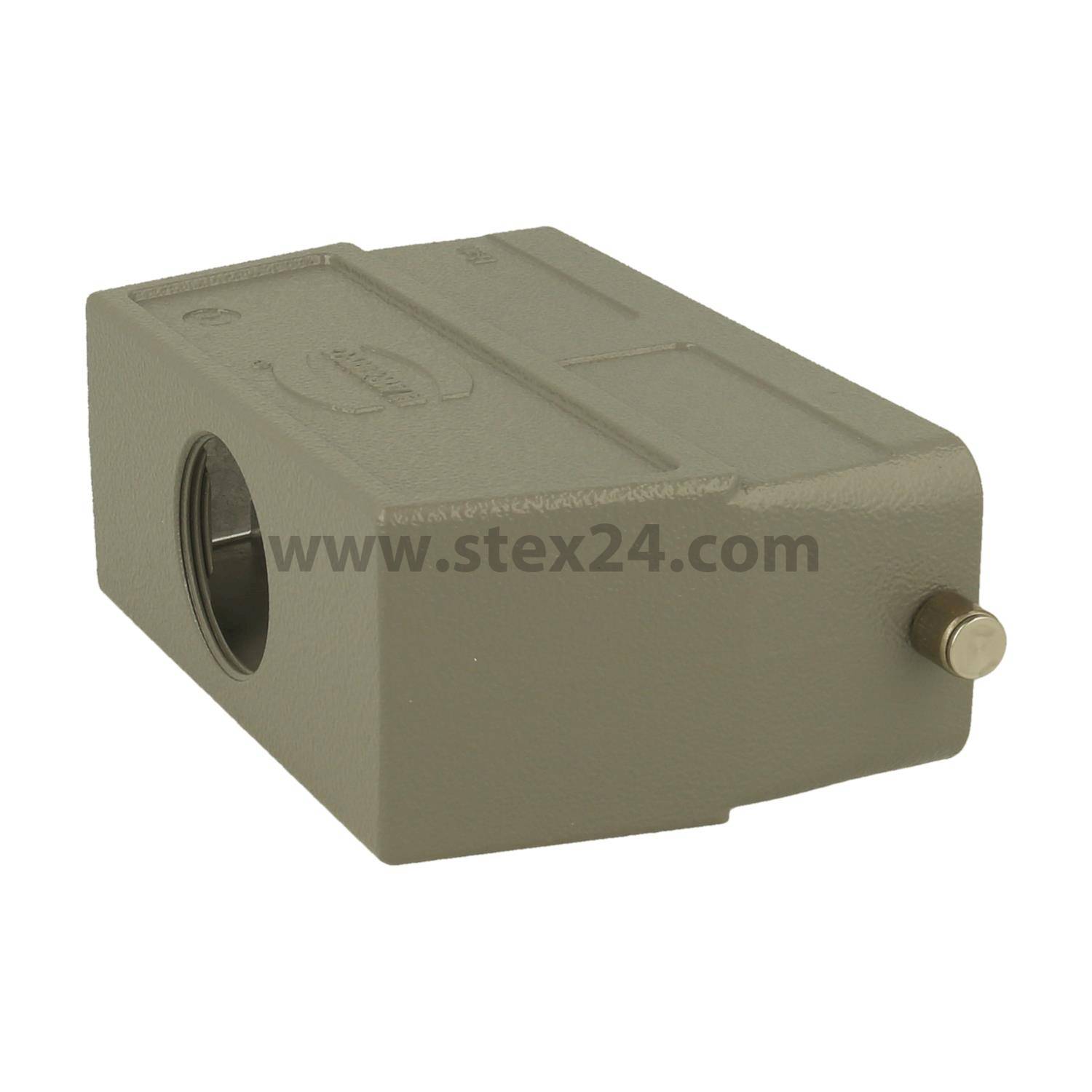

High-voltage systems with a voltage above 630V and up to 100A can easily be installed with connectors from Harting. We have the matching housings from the Han 24B HvE/Hv ES series as bulkhead mounted housings, flush mounted housings, cable to cable housings or hoods with lateral or straight cable outlet. The connector locking is achieved for these housings either with two double locking levers or two levers fixed to the lower section.

Han 24B Eco

Suitable for industrial applications and outdoor use, the Han 24B Eco housings impress with their long service life and a fair price.

Han 24B HMC

Optimal for cabling machines that are moved frequently and are operated at different locations. The Han 24B housings cope undamaged with 10,000 switching cycles.

Han 24B High Temp

Whether model of the type 24b-agg-qb as low profile bulkhead mounted housing or as a high profile flush mounted housing with straight or lateral cable outlet: We have every common size of Han 24B High Temp housings. Designed for temperatures up to max. 200°C, they take Harting connector inserts with 10 to 108 pins.

Han 24B Ex

The high demands of explosion protection are fulfilled by our Han 24B EX housings in the available models: Bulkhead mounted housings and hoods. With cable entries up to size M32, ideal for Harting connector inserts with up to 108 pins.

Han 24B M

Sealed housings, which are water and dust-protected in accordance with protection class IP65.

Han 24B HP and Han 24B HPR

Both housing types fulfil the requirements of protection class IP 69K. Direct, high-pressure water jets and dust cannot enter. The extremely robust housings of the Harting Han 24B HPR series are ideal for use under extreme conditions.

Han 24B for 2 inserts

Suitable for the installation of two Harting inserts of types: 6E, 6ES, 10EE, 24DD, and modular frames with 2 modules.
