Harting Han Brid series - for industrial communication
The Han-Brid® series combines a data and energy interface in a very compact space. A 50 V power supply can always be connected in the Han Brid® connector family. The current carrying capacity of the power supply is 10 A for all components, so nothing stands in the way of a bus structure with max. 50 V voltage supply to decentralised modules. There are several transmission media available for data transmission in the Han-Brid® family:
- Han-Brid® F.O. for fibre optic cables made of plastic or with HCS®* fibre
- Han-Brid® Cu for the use of shielded twisted pair wires
- Han-Brid® Quintax 3 A for coax cables with large diameter
- Han-Brid® Quintax 3 A for four- or eight-wire bus systems with complete shield connection
- Han-Brid® RJ45 C for Ethernet applications
- Han-Brid® USB / FireWire for fast data exchange
The contact inserts can be used both in standard plastic or metal hoods and housings with glued seal of the Han® 3 A series. The protection class of the hoods and housings corresponds to DIN EN 60 529, IP 65. The Han® 3 HPR hoods and housings are available for higher requirements. These achieve protection class IP 68.
Energy supply:
- Han D® pin and jack with standard crimp contacts (order crimp contacts separately)
- Rated current 10 A
- Rated voltage 50 V
- Connection range 0.14 - 2.5 mm²
Han-Brid® F.O.
- Suitable for the accommodation of all HP Versatile Link (Horizontal Package) transmitters and receivers
- Data rates: Standard 12 Mbit/s - suitable for all common field bus systems
- Contact insert accommodates HP crimp contacts - suitable for the fibre types POF and HCS®*
- Temperature range -40 °C ... +70 °C
" Han-Brid® Quintax 3 A "
- Connection possibility for shielded four-/eight-wire cable
- Connection possibility for coaxial cable with large diameter
- Application for all four-wire bus systems
- Suitable for shielded wires 3 - 9.5 mm
- Shield transmission independent of housing potential
- Connection for wires in accordance with DIN EN 50 173, Cat. 5
- Temperature range -40 °C ... +70 °C Han-Brid® RJ45 C
- Can accommodate standard-RJ45 pin and jack, shielded versions
- Connection for wires in accordance with DIN EN 50 173, Cat. 5
- Device-side connection is via a PCB which can be designed as a module or part of the device PCB
- Assembly using standard tools
- Insulated body for 2 Han D® pin or jack contacts combinable with electrical bus connection
- Rated current 10 A
- Rated voltage 24 V
- Connection range 0.14 - 2.5 mm²
| Number of contacts | 1, 4, 8 |
| Additional contacts | + shielding + 2 energy contacts |
| Insulation resistance | >1010 ? |
| Limit temperature | -40 ... +125°C |
| Mating cycles | >=500 |
| Insert material | polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Contact material | copper alloy |
| Material flammability class in accordance with UL 94 | V-0 |
|
Standards and approvals |
|
Notes:
Caution! Han-Brid® Quintax can only be used in the long version in Han® HPR hoods and housings!
Crimping tools: Note on use of crimping technology
The specified wire cross-sections refer to the geometric cross-section of the cable or wire used.
Assembly instructions
1. Strip the cable and double the shield braiding back.
2. Crimp the Han D® contacts on.
3. Make the Han D® contacts latch into the corresponding contact chambers of the insulator.
4. Insert the insulated body with cable into the opened shield hood. The coding lug of the shield hood must engage in the longitudinal groove of the insulated body.
5. Use the clamp (small opening for cable outer diameter from 3 ... 6 mm, large opening for cable outer diameter from 6 ... 9.5 mm) to clamp the cable to the doubled-back shield braiding.
6. Check wiring. Close the shield hood with the cover and insert into the corresponding chamber of the Quintax module.
" Han-Brid® Cu "
- Connection possibility for shielded two-wire lines
- Insulating body for 2 Han D® pin or jack contacts
- Large shield connection and shield transfer thanks to shield plate and shield springs
- Connection on the device side via a PCB which can be designed as a modular PCB or part of the device PCB
- Contact insert for the bulkhead mounted housing or cable to cable housing is always equipped with a shield spring
Bus termination:
- Active bus termination connector in pin and socket version
- Standard Han® 3 A housing
- Supply of termination network via the electrical contacts of Han-Brid®
- Integrated, galvanically separated DC/DC transformer 24 V / 5 V
| Number of contacts | 2 |
| Additional contacts | + 4 electrical contacts 10 A + option for PE |
| Rated current | 10 A |
| Rated voltage | 50 V |
| Rated impulse voltage | 0.8 kV |
| Degree of soiling | 3 |
| Insulation resistance | >1010 ? |
| Limit temperature | -40 ... +125 °C |
| Mating cycles | >=500 |
| Insert material | Polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Hood and housing material | Polycarbonate (PC), die-cast zinc |
| Hood and housing colour | RAL 9005 (jet black), RAL 7037 (dust grey) |
| Material flammability class according to UL 94 | V-0 |
|
Standards and approvals |
|
" Han-Brid® USB "
- Application for all Han® 3 A hoods with glued seal
- Simple and cost-effective connection through insertion of a patch cable
- Tension relief through cable ties
| Number of contacts | 2 |
| Additional contacts | + USB |
| Rated current | 1 A |
| Rated voltage | 50 V |
| Rated impulse voltage | 0.8 kV |
| Degree of soiling | 3 |
| Insulation resistance | >1010 ? |
| Volume resistance | >=4 m? |
| Limit temperature | -40 ... +85 °C |
| Mating cycles | >=500 |
| Insert material | Polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Material flammability class according to UL 94 | V-0 |
|
Standards and approvals |
|
" Han-Brid® FireWire "
- Application for all Han® 3 A housings
- Hood with glued seal
- Simple and cost-effective connection through insertion of a patch cable
- Tension relief through cable ties
- Compatible with IEEE 1394 Han® 4 A SC
- Can be used in housings of size Han® 3 A including the versions Han® M, Han® EMC and Han® HPR
- Up to protection class IP 68
- Receptacle for FOC-SC contacts; up to 4 SC contacts per connector
- For 1 mm POF • For multi-mode fibres 50 - 62.5 / 125 um and single-mode fibres 9 / 125 um
- 4 high-precision ceramic hoods for minimum attenuation and maximum reliability
| Number of contacts | 2 |
| Additional contacts | + FireWire |
| Rated current | 1 A |
| Rated voltage | 50 V |
| Rated impulse voltage | 0.8 kV |
| Degree of soiling | 3 |
| Insulation resistance | >1010 ? |
| Volume resistance | >=4 m? |
| Limit temperature | -40 ... +85 °C |
| Mating cycles | >=500 |
| Insert material | Polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Material flammability class according to UL 94 | V-0 |
|
Standards and approvals |
|
" Han-Brid® LWL "
- Suitable for the accommodation of all HP Versatile Link (Horizontal Package) transmitters and receivers
- Data rates: Standard 12 Mbit/s - suitable for all common field bus systems
- Contact insert can accommodate HP crimp contacts – suitable for the fibre types POF and HCS®
| Number of contacts | 2 |
| Additional contacts | + 4 electrical contacts 10 A + option for PE |
| Rated current | 10 A |
| Rated voltage | 50 V |
| Rated impulse voltage | 0.8 kV |
| Degree of soiling | 3 |
| Insulation resistance | >1010 ? |
| Limit temperature | -40 ... +125 °C |
| Mating cycles | >=500 |
| Insert material | Polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Material flammability class according to UL 94 | V-0 |
|
Standards and approvals |
|
" Han-Brid® Quintax 3 A with coaxial contact "
| Number of contacts | 1 |
| Additional contacts | + shield |
| Rated current | 10 A |
| Rated voltage | 50 V |
| Rated impulse voltage | 0.8 kV |
| Degree of soiling | 3 |
| Volume resistance | <=3 m? |
| Volume resistance, shield | <=100 m? |
| Wave impedance | 75 ? |
| Limit temperature | -40 ... +125 °C |
| Mating cycles | >=500 |
| Insert material | Polycarbonate (PC) |
| Shield material | Die-cast zinc, nickel-plated |
| Insert colour | RAL 7032 (pebble grey) |
| Contacts material | Copper alloy |
| Material flammability class according to UL 94 | V-0 |
|
Standards and approvals |
|
Crimping tools: Note on use of crimping technology
The specified wire cross-sections refer to the geometric cross-section of the cable or wire used.
" Han-Brid® RJ45 C "
- Can accommodate standard RJ45 pin and jack, shielded variants
- Connection for wires in accordance with DIN EN 50173, Cat. 5
- Device-side connection is via a PCB which can be designed as a module PCB or part of the device PCB
- Connection using standard tools • Insulated boy for 2 Han D® pin or jack contacts combinable with electrical bus connection
| Number of contacts | 2 |
| Additional contacts | + RJ45 |
| Rated current | 10 A |
| Rated voltage | 24 V |
| Rated impulse voltage | 0.8 kV |
| Degree of soiling | 3 |
| Insulation resistance | >1010 ? |
| Limit temperature | -40 ... +70 °C, -40 to +125 °C |
| Mating cycles | >=500 |
| Core outer diameter | <=1.6 mm |
| Transmission properties | Cat. 5, Class D up to 100 MHz |
| Data rate | 10 Mbit/s, 100 Mbit/s |
| Insert material | Polycarbonate (PC) |
| Insert colour | RAL 7032 (pebble grey) |
| Material flammability class according to UL 94 | V-0 |
|
Standards and approvals |
|

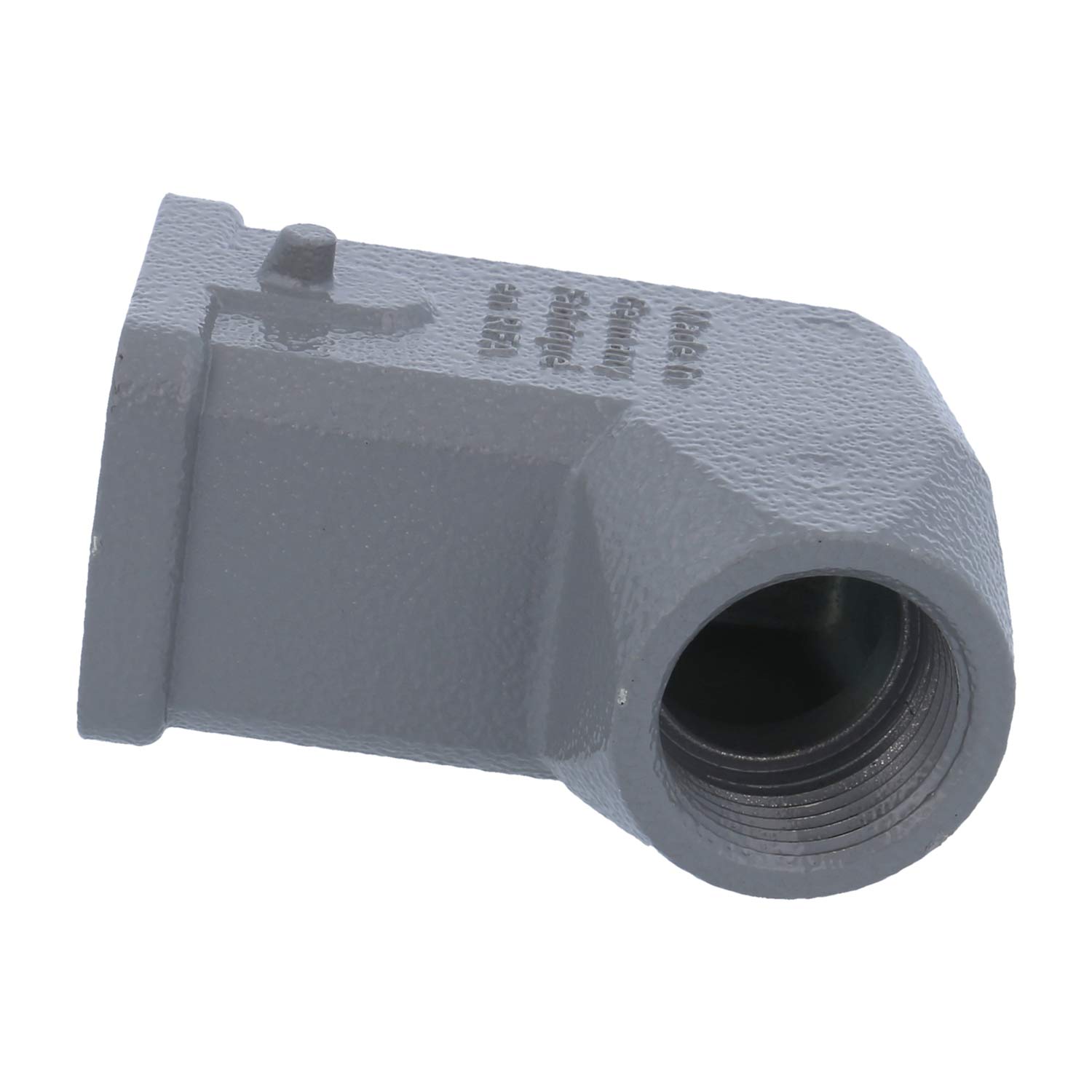

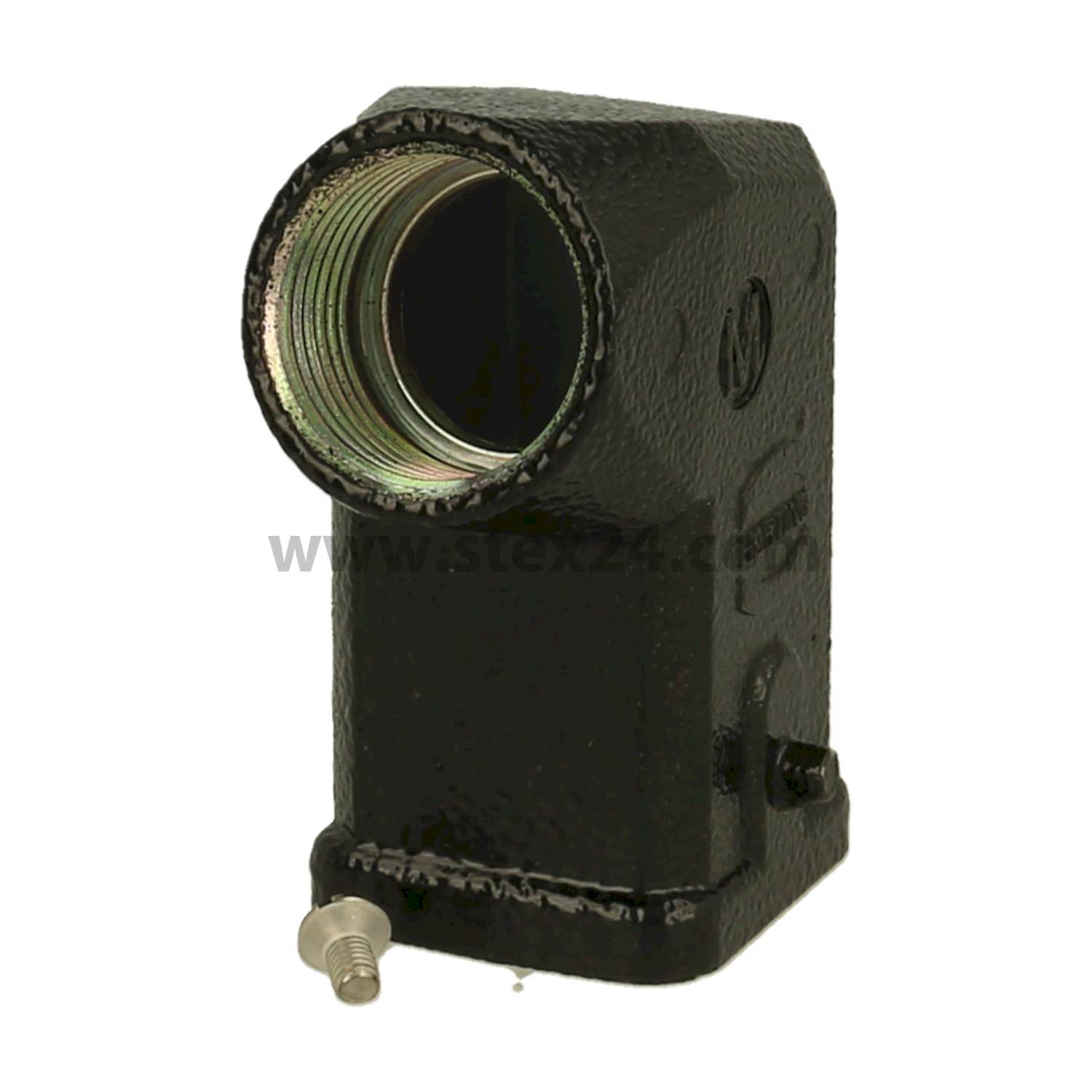

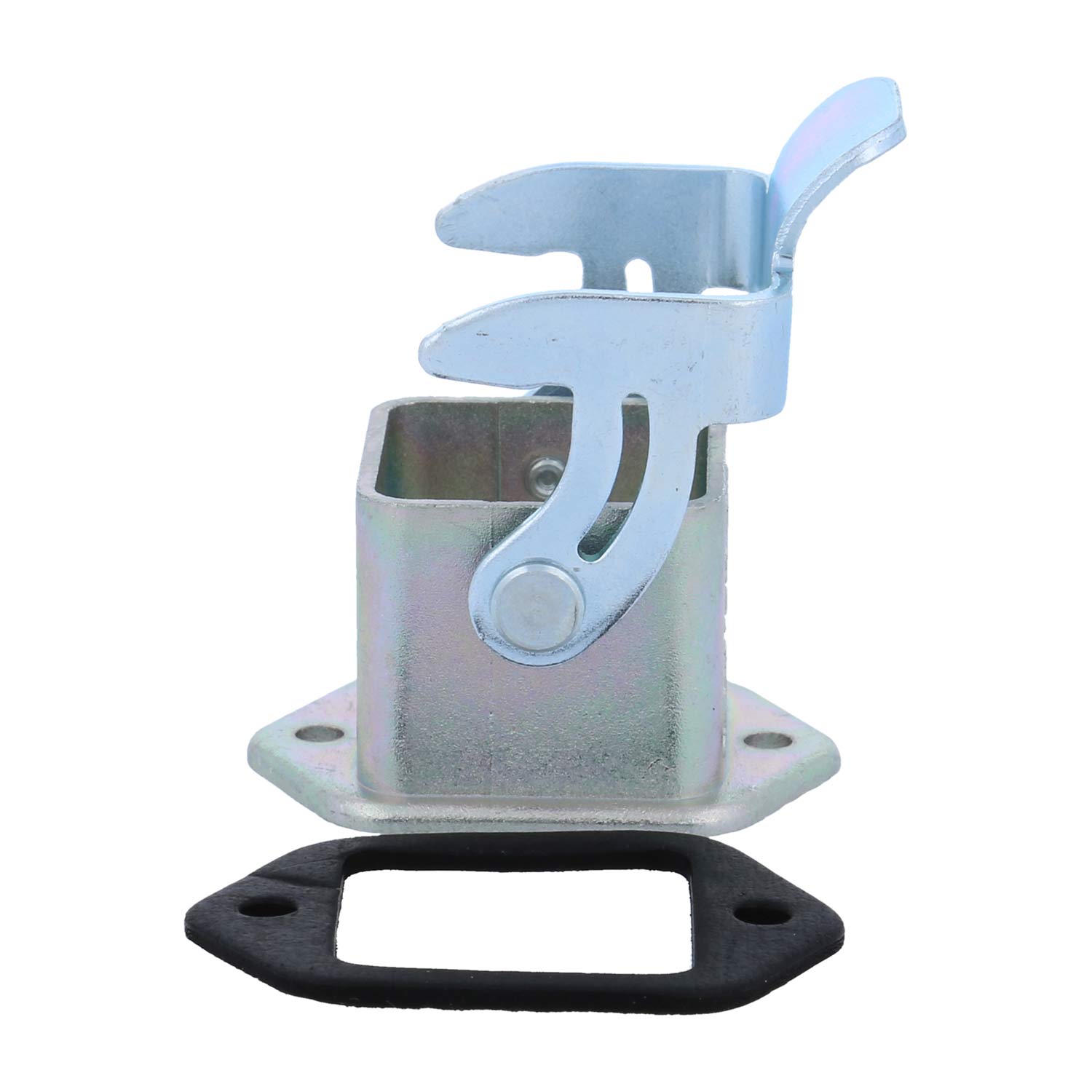

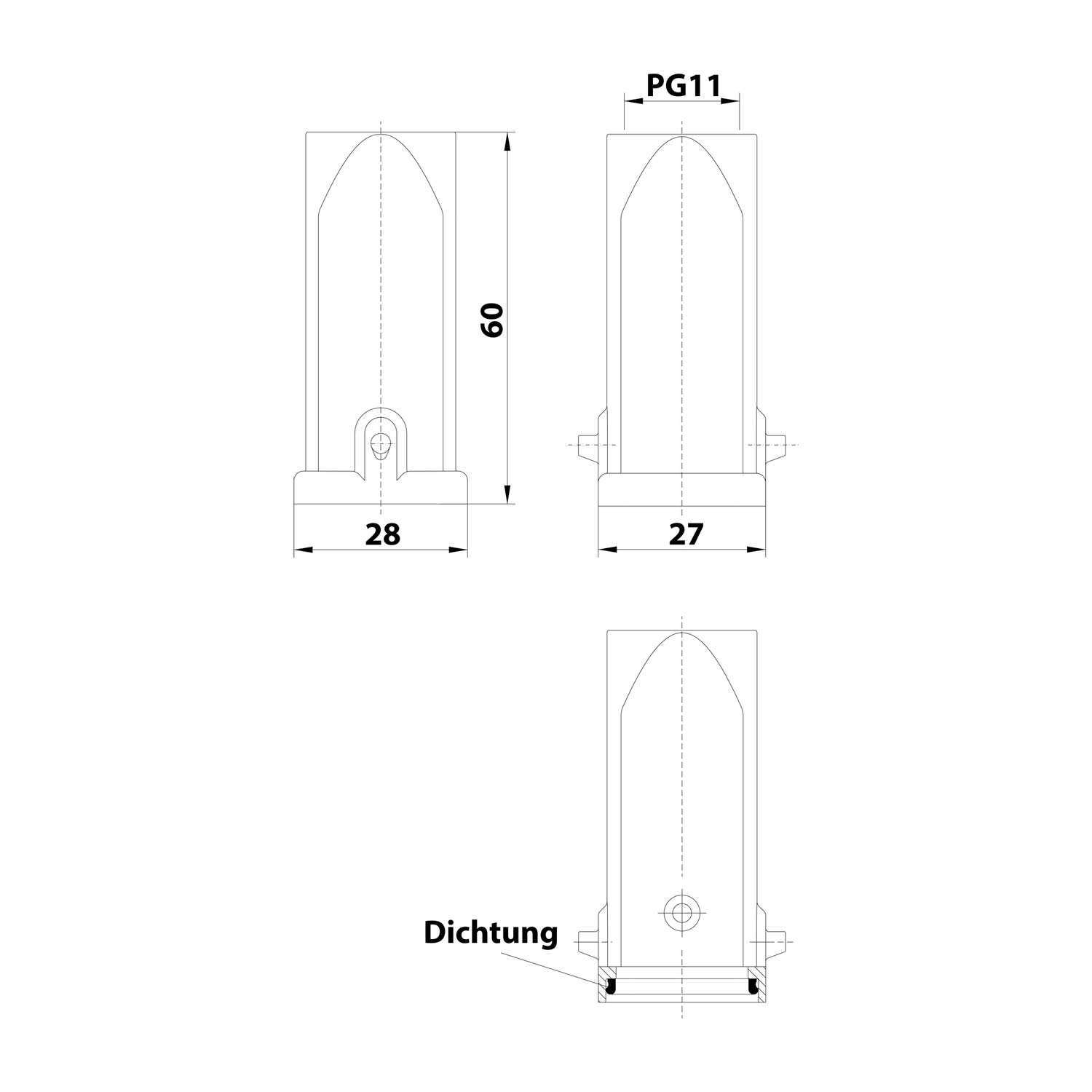

" Metal hoods and housings Han Brid® 3 A "
- Housing for industrial applications
- With glued seal
| Limit temperature | -40 ... +125 °C |
| Protection class according to IEC 60529 | IP44, IP65 / IP67, with sealing screw 09 20 000 9918 |
| Protection class according to UL 50 / UL 50E | 12 |
| Hood and housing material | Die-cast zinc |
| Hood and housing surface | Powder-coated |
| Hood and housing colour | RAL 7037 (dust grey) |
| Seal material | NBR |
| Standards and approvals |
|
Note:
The special hoods with glued seal can be combined with standard housings

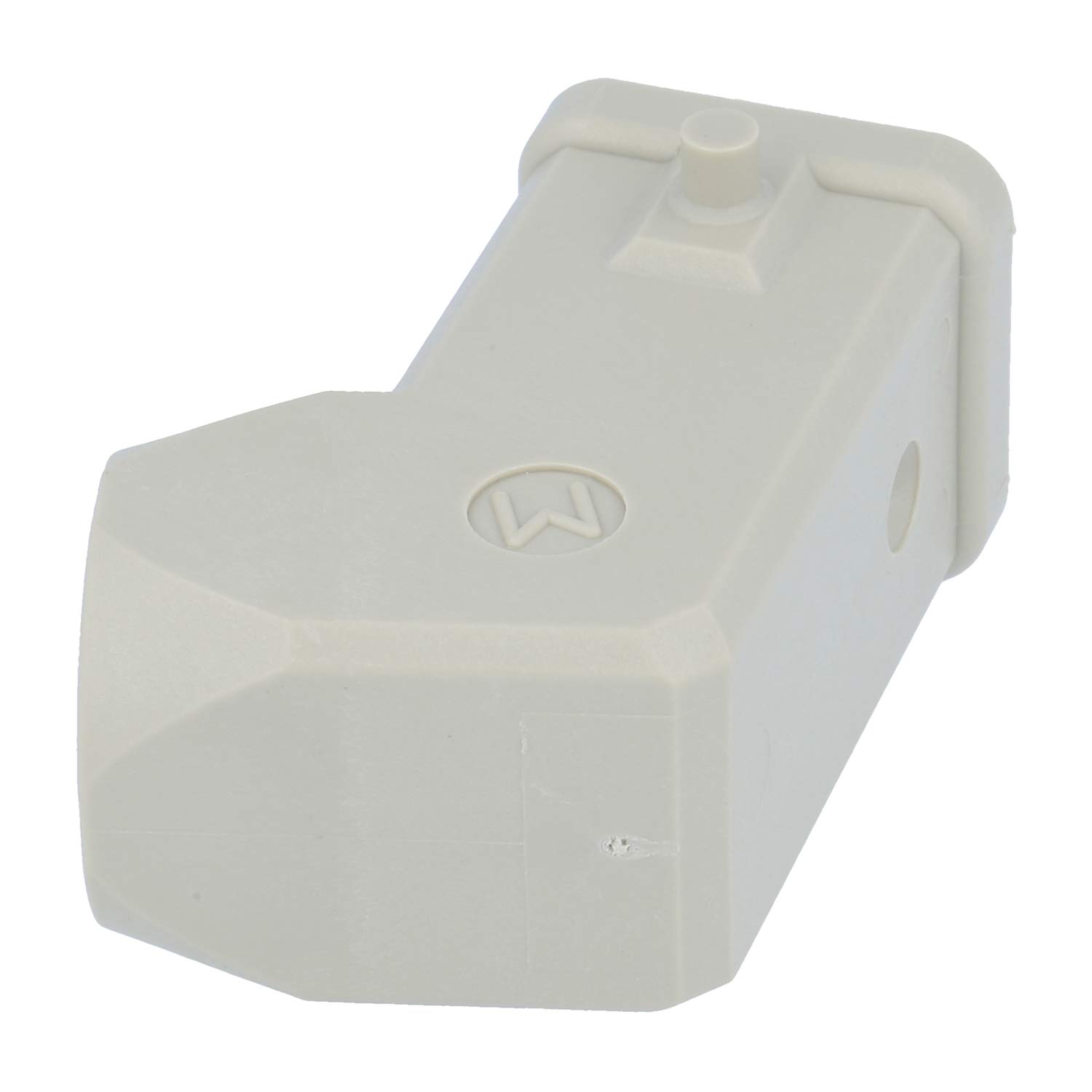

" Plastic hoods and housings Han Brid® 3 A "
- Housing for industrial applications
- With glued seal
| Limit temperature | -40 ... +125 °C |
| Protection class according to IEC 60529 | IP44, IP65 / IP67, with sealing screw 09 20 000 9918 |
| Protection class according to UL 50 / UL 50E | 4, 4X, 12 |
| Hood and housing material | Polycarbonate (PC) |
| Hood and housing colour | RAL 7032 (pebble grey), RAL 9005 (jet black) |
| Seal material | NBR |
| Material flammability class according to UL 94 | V-0 |
| Standards and approvals |
|
Note:
The special hoods with glued seal can be combined with standard housings
"
