Han High Temp hoods and housings and inserts for temperatures up to +200°C
By using high-quality temperature-resistant materials, a unique connector has been created, which can be used in a wide range of applications. Due to its exceptional resistance to temperatures up to 200°C, machines and plants that would otherwise need to be set up in a cumbersome and inflexible way, can now also be supplied with connectors. For users, this offers decisive advantages such as:
- Optimising electromechanical planning: Machine parts exposed to high ambient temperatures can be constructed in a modular format
- Optimising work processes: Reducing maintenance costs by reducing the wiring complexity
- Optimising the after sales sector: Reducing downtimes through maintenance-friendly applications
Overall constructions

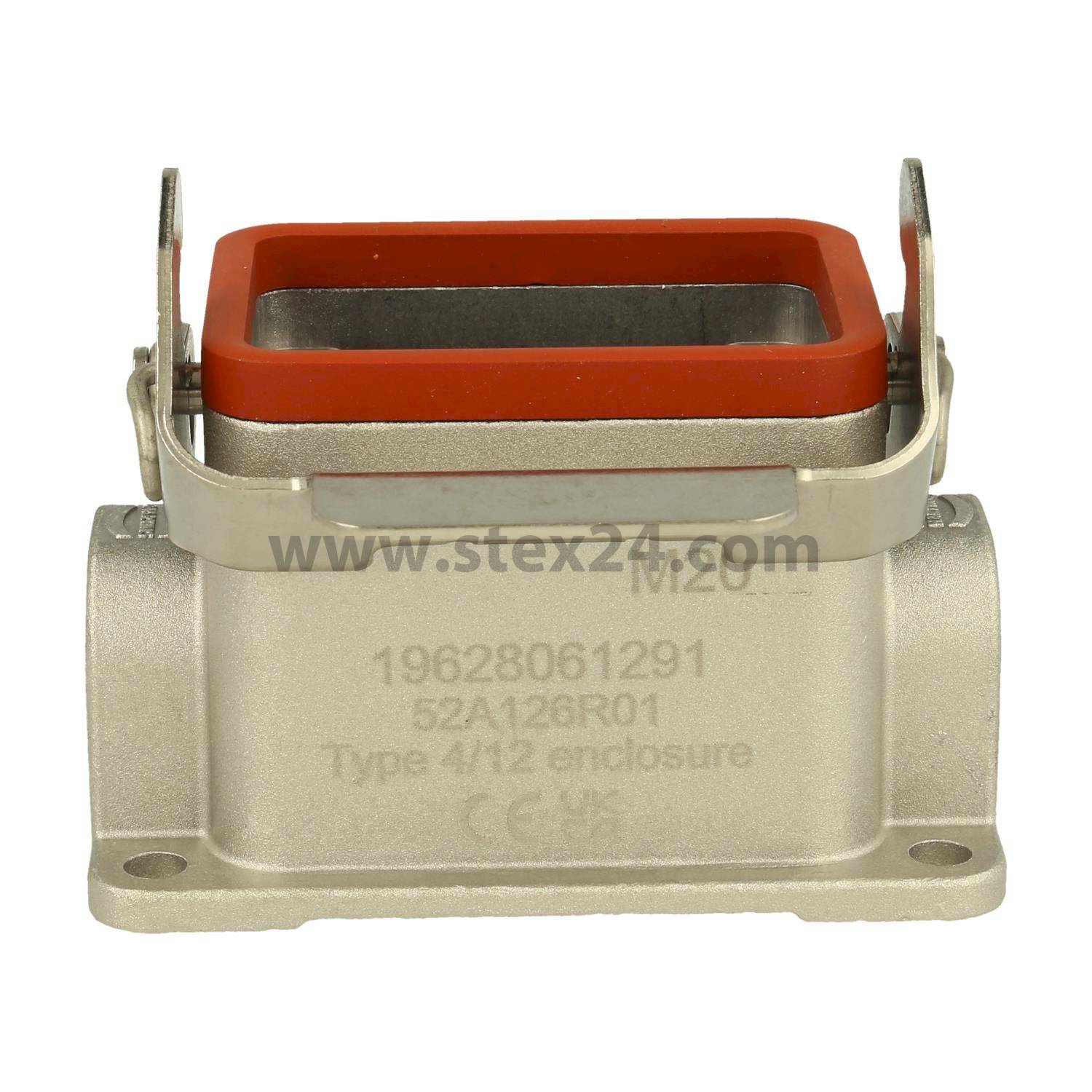

The principle construction of the Han® High Temp interface consists of a bulkhead mounted housing on the housing side and a hood on the cable side.
Housing: The surface of the proven die-cast aluminium housing has been highly compressed to achieve excellent non-stick properties. This is paired with a special non-stick coating on the seal of the mounting side. This enables simple handling without a strong sticking effect.
Contact inserts: The centrepiece of a connector is the contact insert. With the Han® High Temp series, this is of course very durable. The LCP injection-moulded insulator offer maximum temperature resistance and optimal mechanical stability.
Contacts: Whether screw or crimp termination technology, the new temperature resistant contacts offer secure contact transmission with low transition resistance, even at extreme temperatures. Han® High Temp connectors are durable and reliable over their entire lifespan!

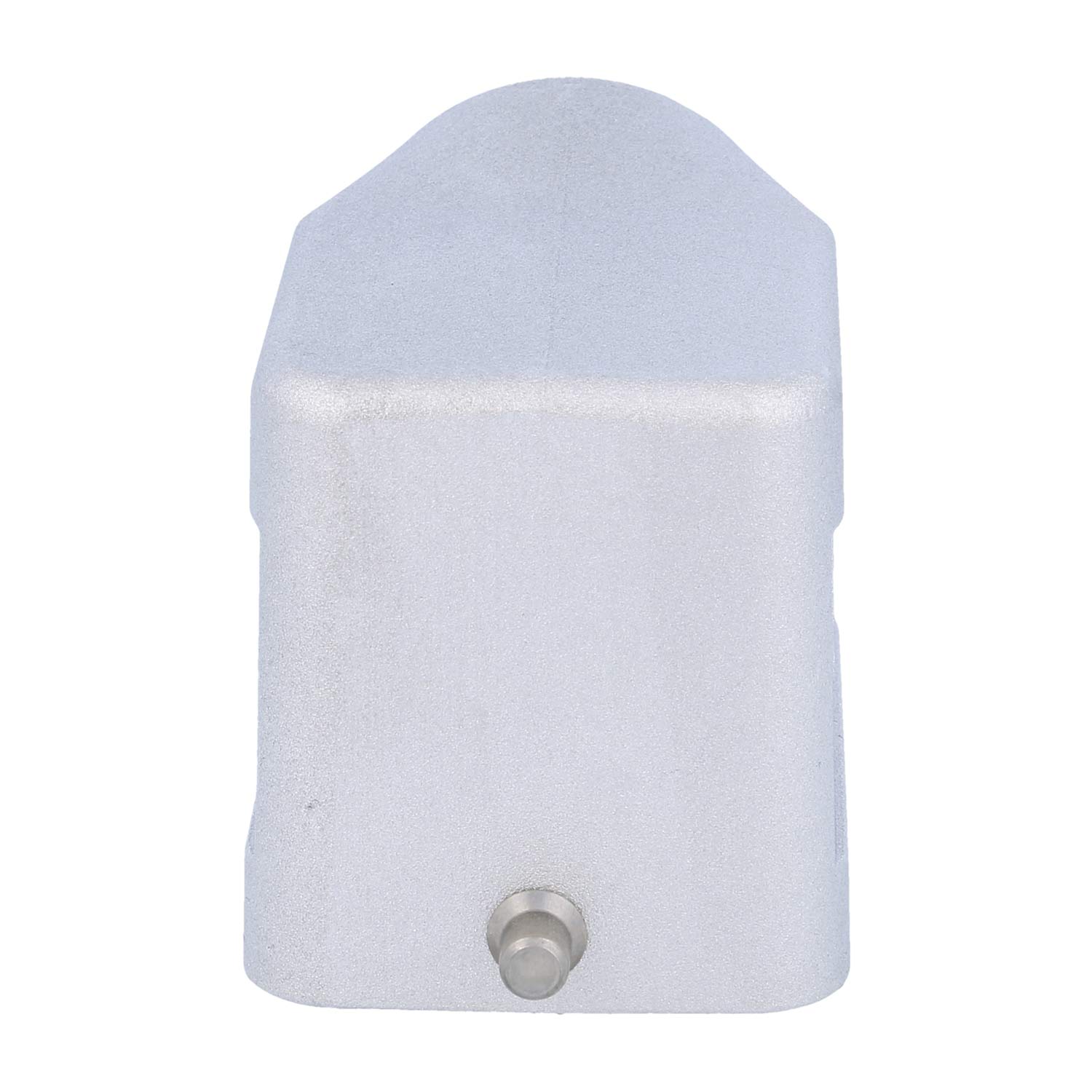

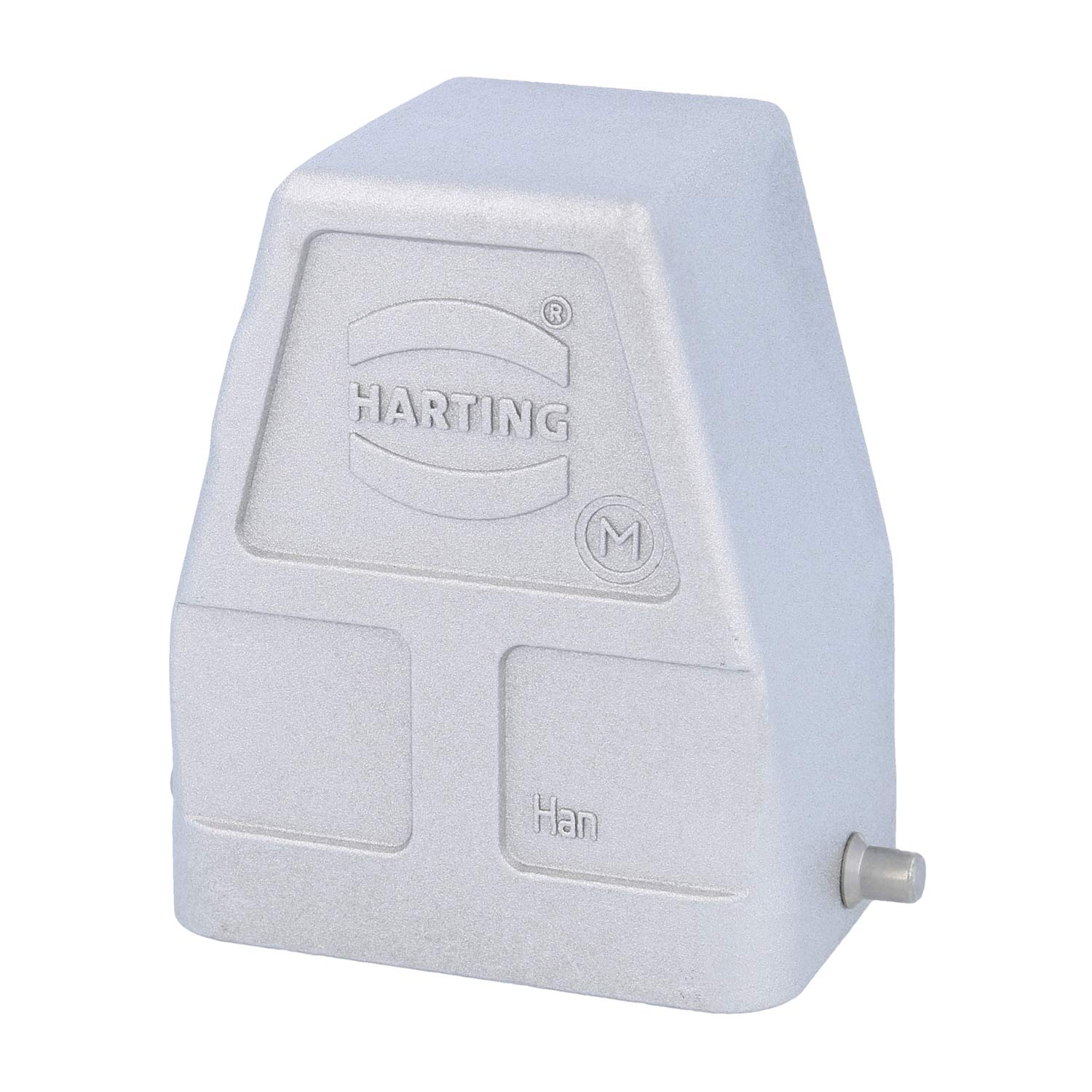

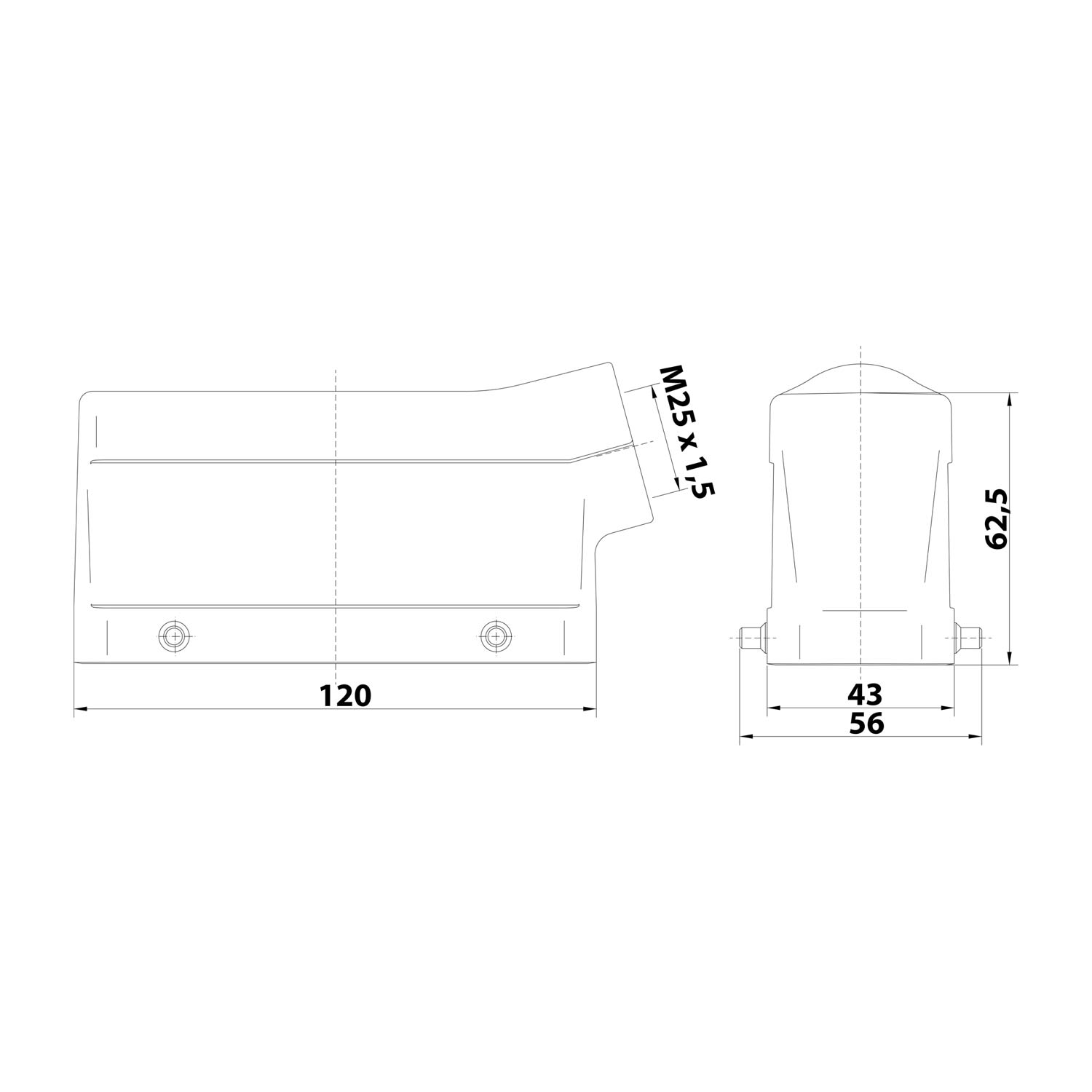

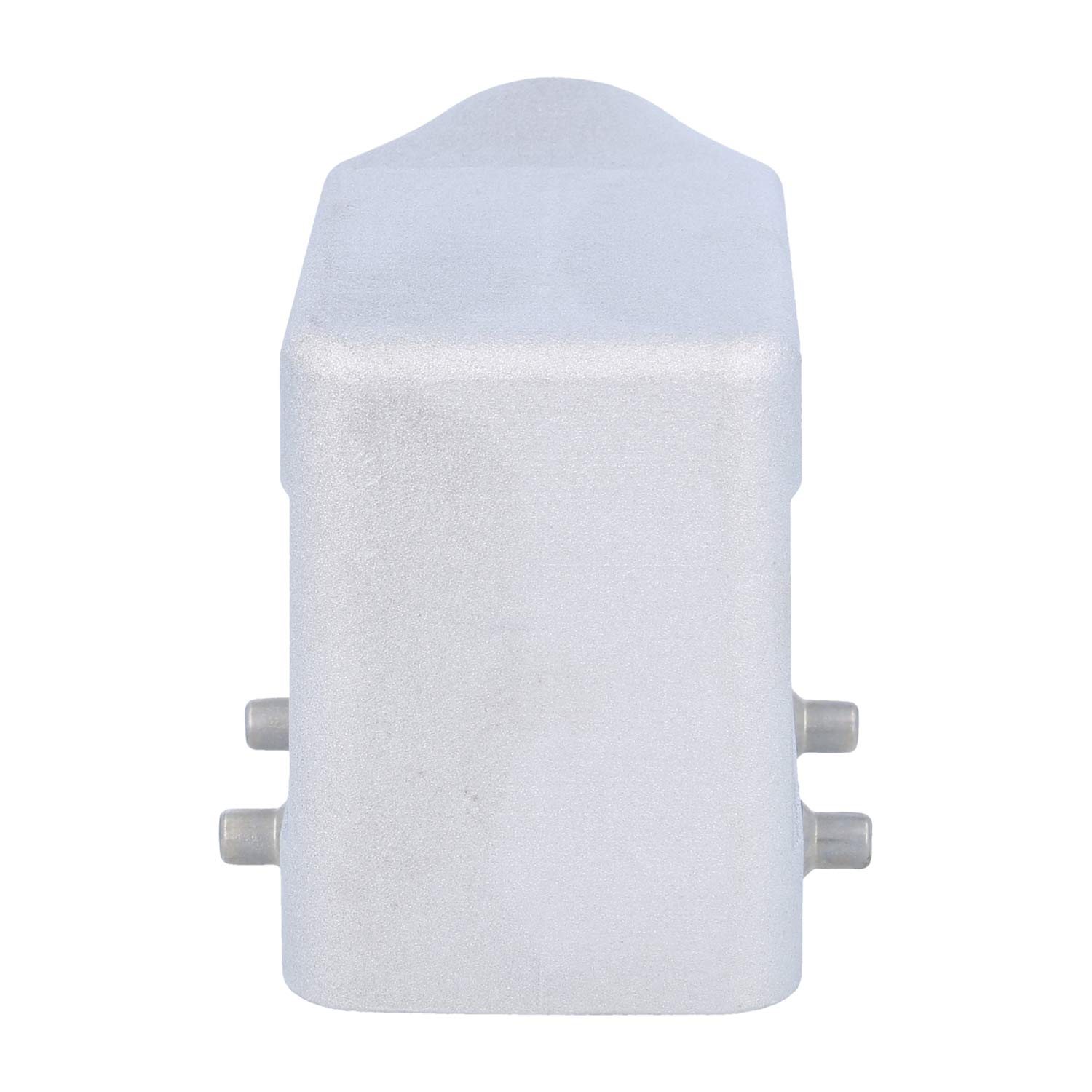

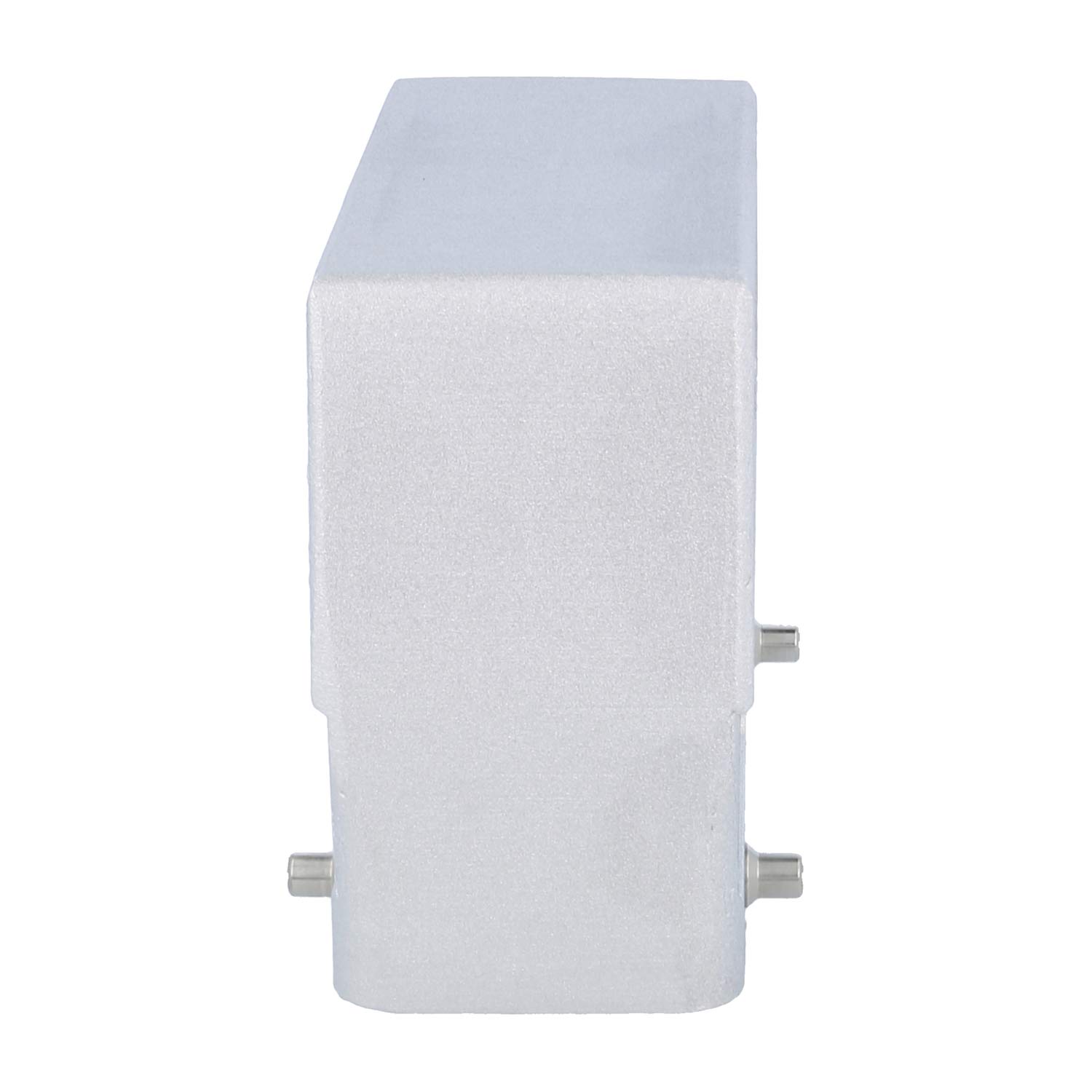

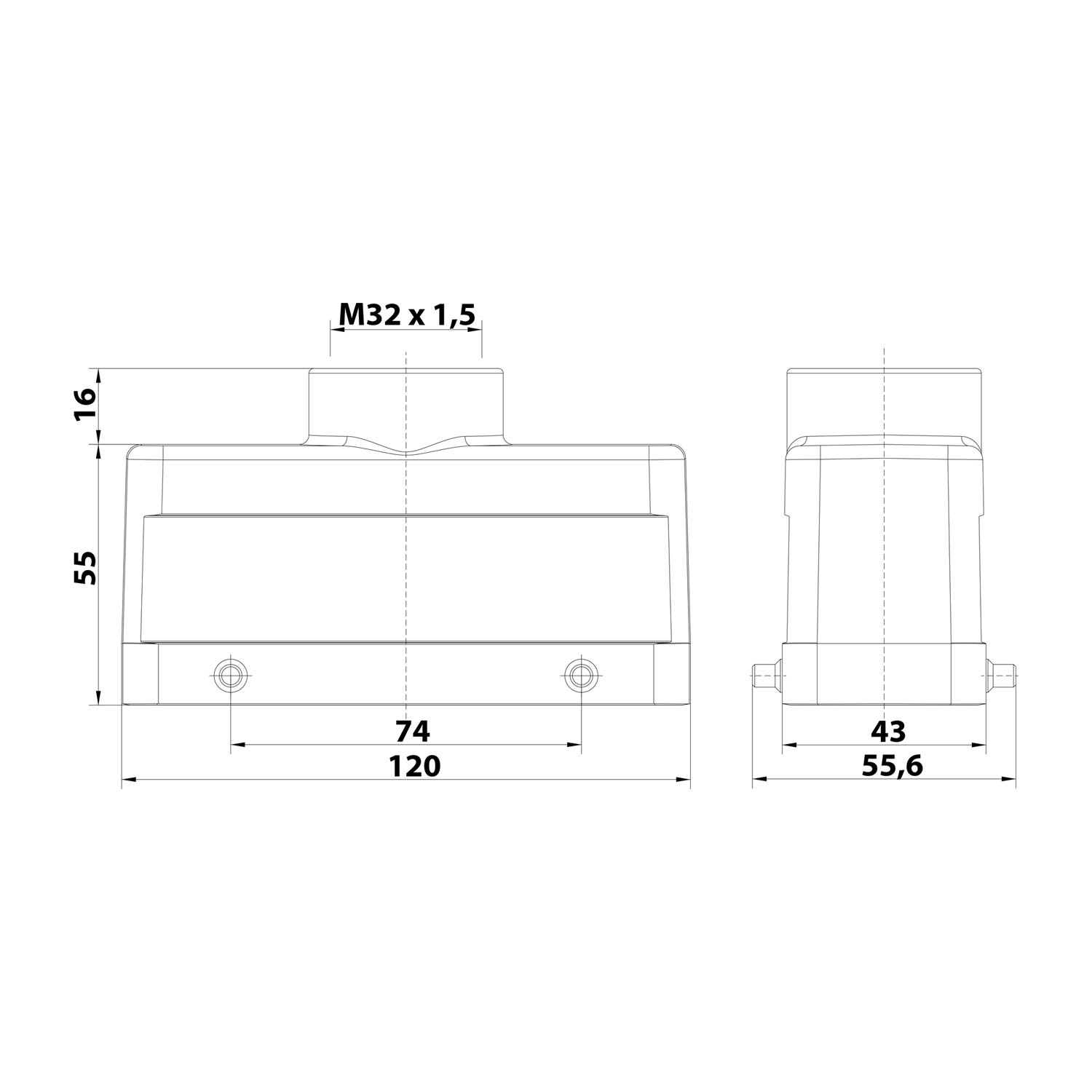

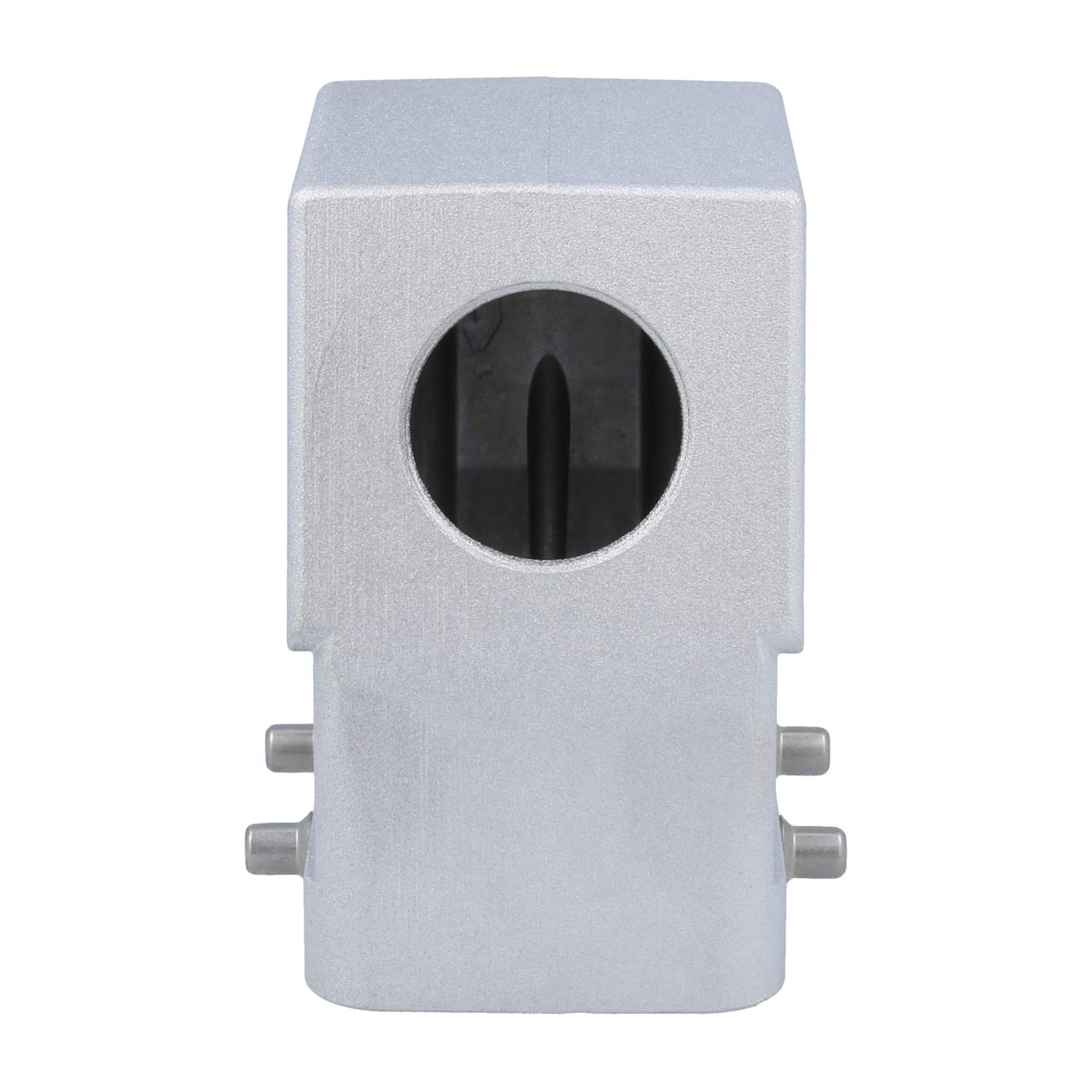

Han® High Temp hoods and housings
- For extreme temperatures up to 200°C
- All components (contacts, insulation material, housings, seals and earthing elements) are designed to be temperature resistant
- Corrosion resistant metal housings
| Temperature limit | -40 ... +125°C, -40 to +200°C with Han® High Temp components |
| Protection class according to IEC 60529 | IP65 |
| Protection class according to UL 50 / UL 50E | 4, 12 |
| Material, housing | Die-cast aluminium |
| Surface, housing | Uncoated |
| Colour, housing | Unpainted |
| Material, seal | FPM |
| Colour, seal | Red |
| Material, lock | Stainless steel |
| Lock type | Single locking lever, double locking lever |
|
Standards and approvals |
|
Han High Temp inserts
- For extreme temperatures up to 200°C
- All components (contacts, insulation material, housings, seals and earthing elements) are designed to be temperature resistant
| Number of contacts | 6, 10, 16, 24 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated impulse voltage | 6 kV |
| Pollution degree | 3 |
| Insulation resistance | >1010 ? |
| Volume resistance | <=1 m? |
| Temperature limit | -40 ... +200°C with Han® High Temp components |
| Mating cycles | >=500 |
| Material, insert | Liquid-crystal polymer (LCP) |
| Material, contacts | Copper alloy |
| Material flammability classification according to UL 94 |
V-0 |
|
Standards and approvals |
|
|
Note: |
The Han® High Temp Crimp inserts are to be used exclusively with the special Han® High Temp contacts. |
Han® Q 5/0 High Temp inserts
| Number of contacts | 5 |
| Rated current | 16 A |
| Rated voltage conductor-earth | 230V |
| Rated voltage conductor-conductor | 400V |
| Rated impulse voltage | 4 kV |
| Degree of pollution | 3 |
| Insulation resistance | >1010 ? |
| Temperature limit | -40 ... +200°C with Han® High Temp components |
| Mating cycles | >=500 |
| Material, insert | Liquid-crystal polymer (LCP) |
| Colour, insert | Black |
| Material flammability classification according to UL 94 |
V-0 |
