Variant
light grey
10063590 WISKA Reduction M/M from M50x1.5 at M32x1.5 KRM-M50/M32 Hexagon Polyamide (PA) Connection thread 12.0 mm
Article No.:
104105
Old Article No.:
382650032
Manufacturer Article No.:
10063590
Manufacturer:
Expected additions: 5
✓ No packaging units, no minimum order value
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €8.15 |
| from 25 piece | €7.34 |
| from 50 piece | €6.52 |
| from 100 piece | €5.71 |
| from 200 piece | €4.89 |
from €8.15
Discount group:
V2

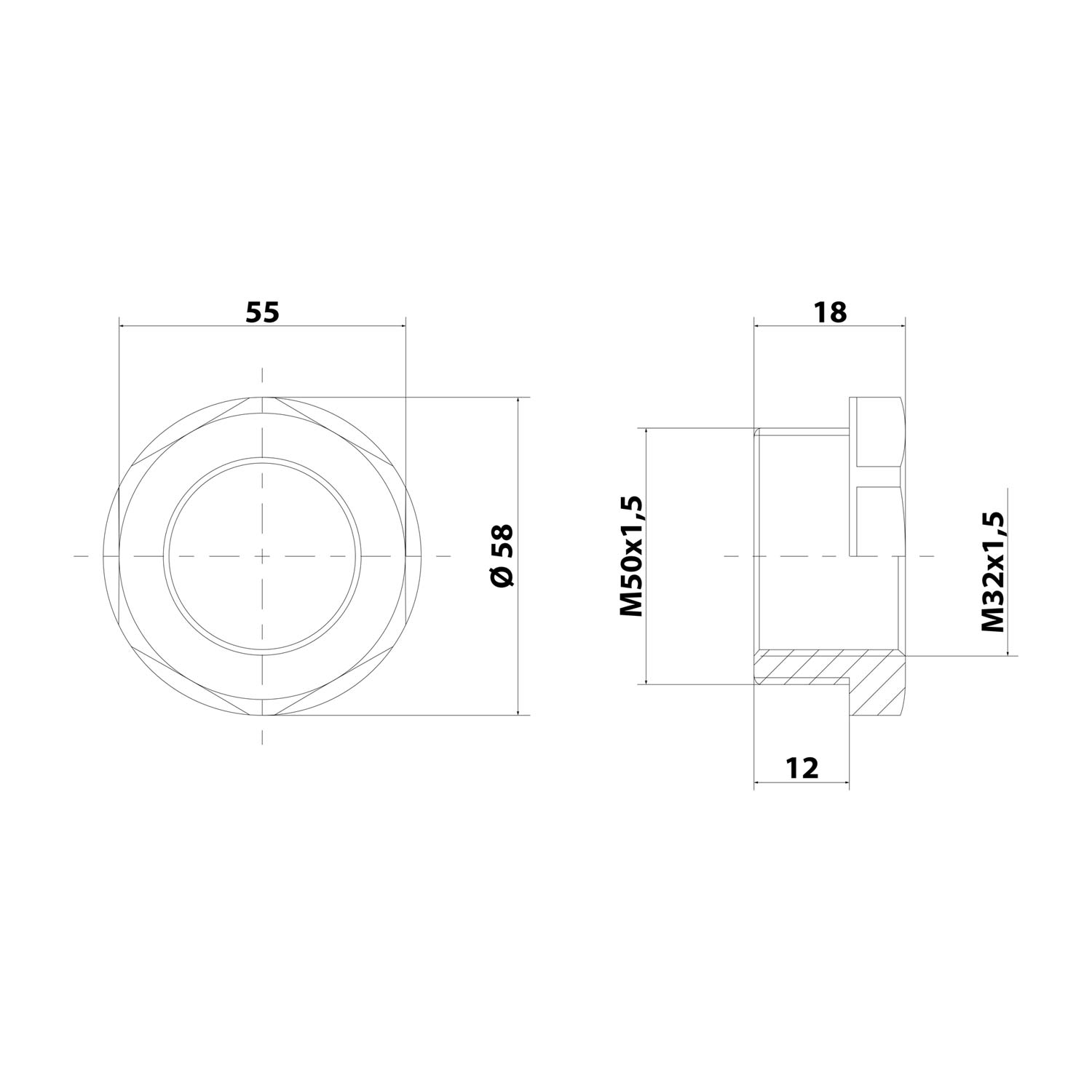

10063590 WISKA Reduction M/M from M50x1.5 at M32x1.5 KRM-M50/M32 Hexagon Polyamide (PA) Connection thread 12.0 mm:
| Type: | Reduction M/M |
| Series: | Reduction |
| Type: | Hexagon |
| Thread length: | Connection thread: 12.0 mm |
| External thread: | M50x1.5 |
| Internal thread: | M32x1.5 |
| Dimensions: | Height: 18.0 mm |
| Width across flats: | SW55 |
| Temperature range: | Range of application: -40°C to 100°C |
| Protection class: | IP54 |
| Material: | Reduction: Polyamide (PA) |
| Colour: | Colour shade: light grey RAL 7035 |
| Features: | - Enables the use of cable connectors whose connection threads are smaller than existing threaded holes. - Glass fibre reinforced, for high mechanical stability. |
| Fire behaviour: | -halogen-free |
| Matching data: | Metric cable connectors |
10063590 WISKA Reduction M/M from M50x1.5 at M32x1.5 KRM-M50/M32 Hexagon Polyamide (PA) Connection thread 12.0 mm:
| Manufacturer: | WISKA |
| Manufacturer designation: | 10063590 |
| Manufacturer Short description: | KRM, métrique |
| Customs tariff number: | 39269097 |
| EAN: | 4007685019446 |
| Classifications: | - ECLASS 5.1.4 27149109 - ECLASS 7.1 27149109 - ETIM-8.0 EC000938 - UNSPSC EC000938 |
The photographs and graphics are not to scale and are not detailed images of the respective products.
Manufacturer or responsible person for the product: WISKA Hoppmann GmbH, Kisdorfer Weg 28, 24568 Kaltenkirchen, Germany
