Variant
double folded

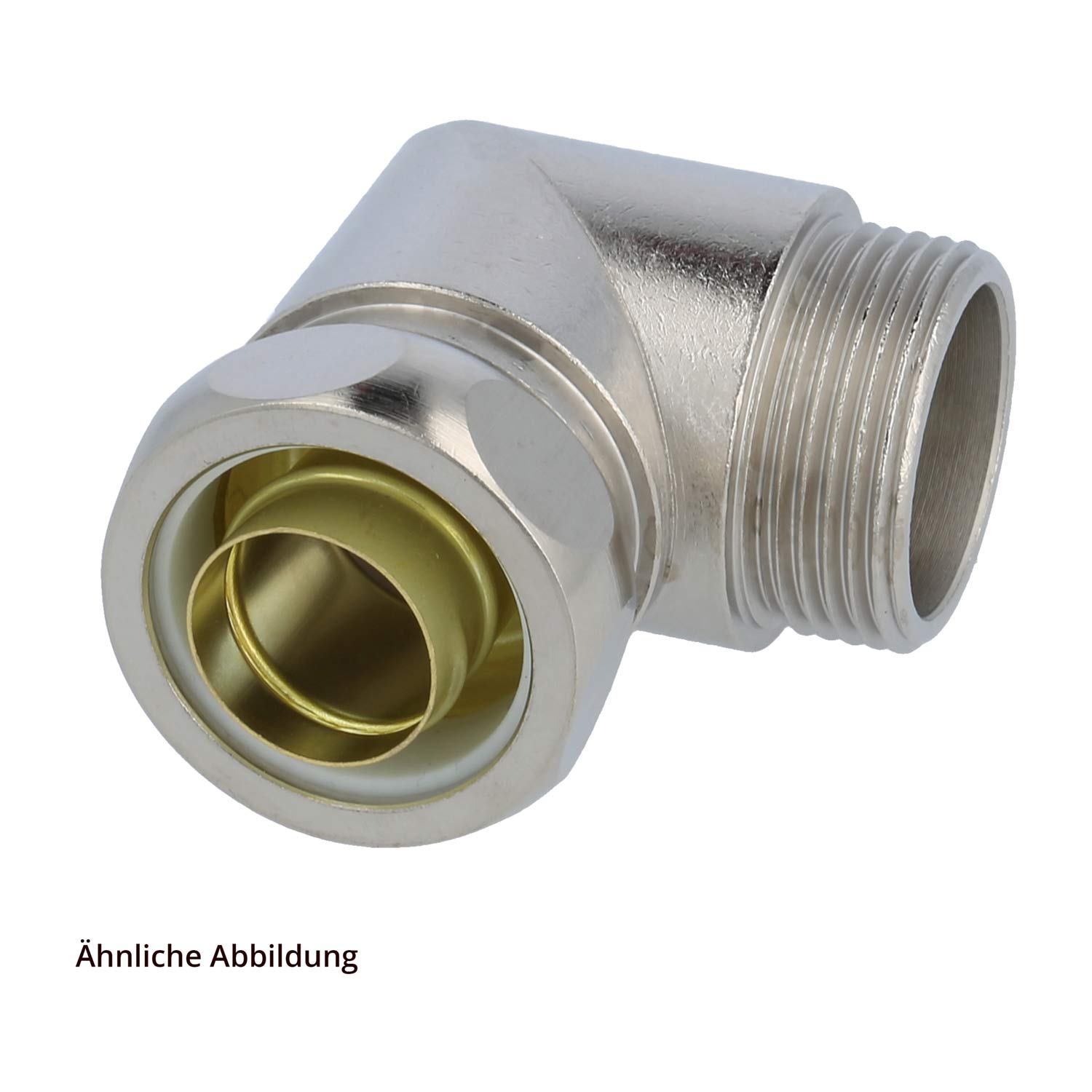

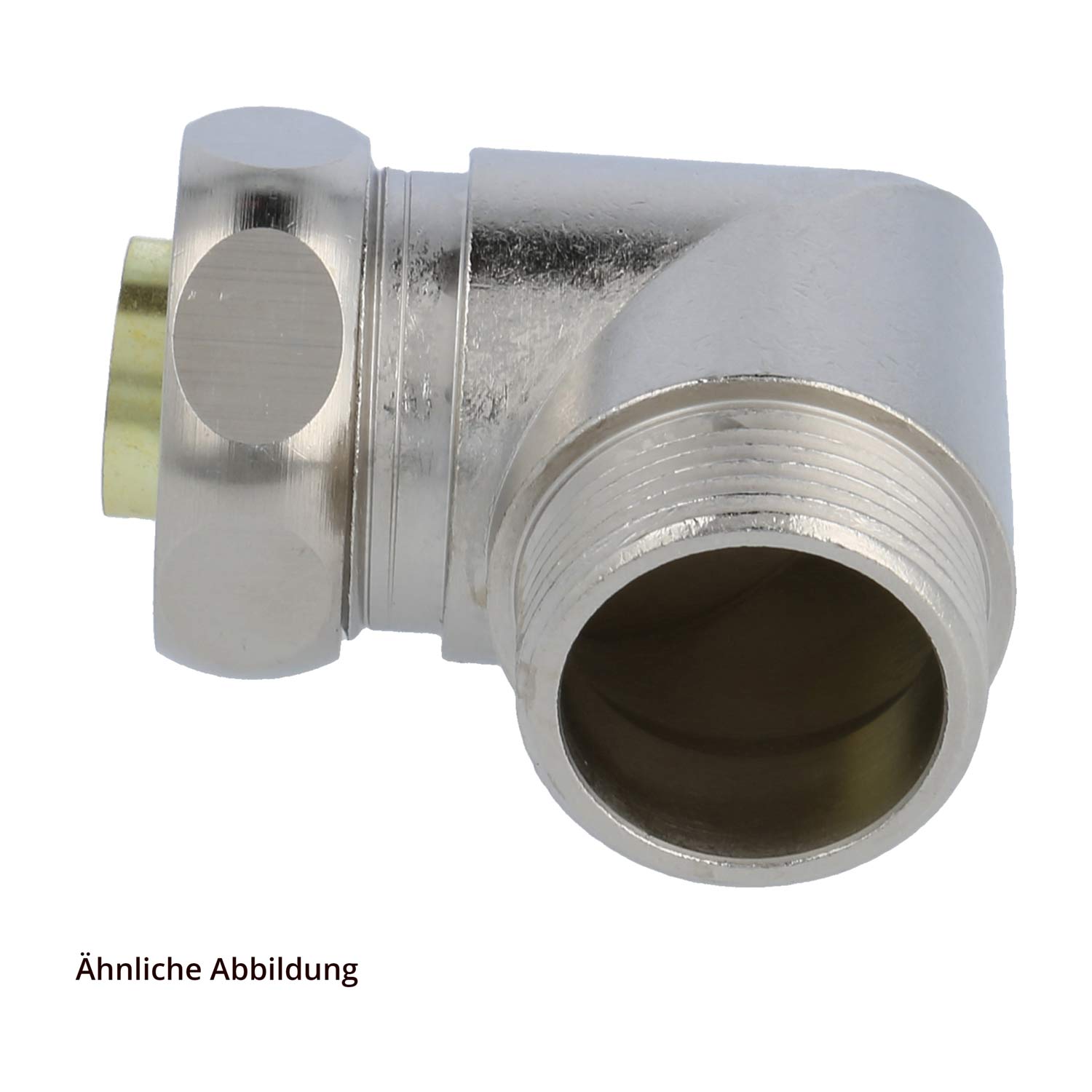

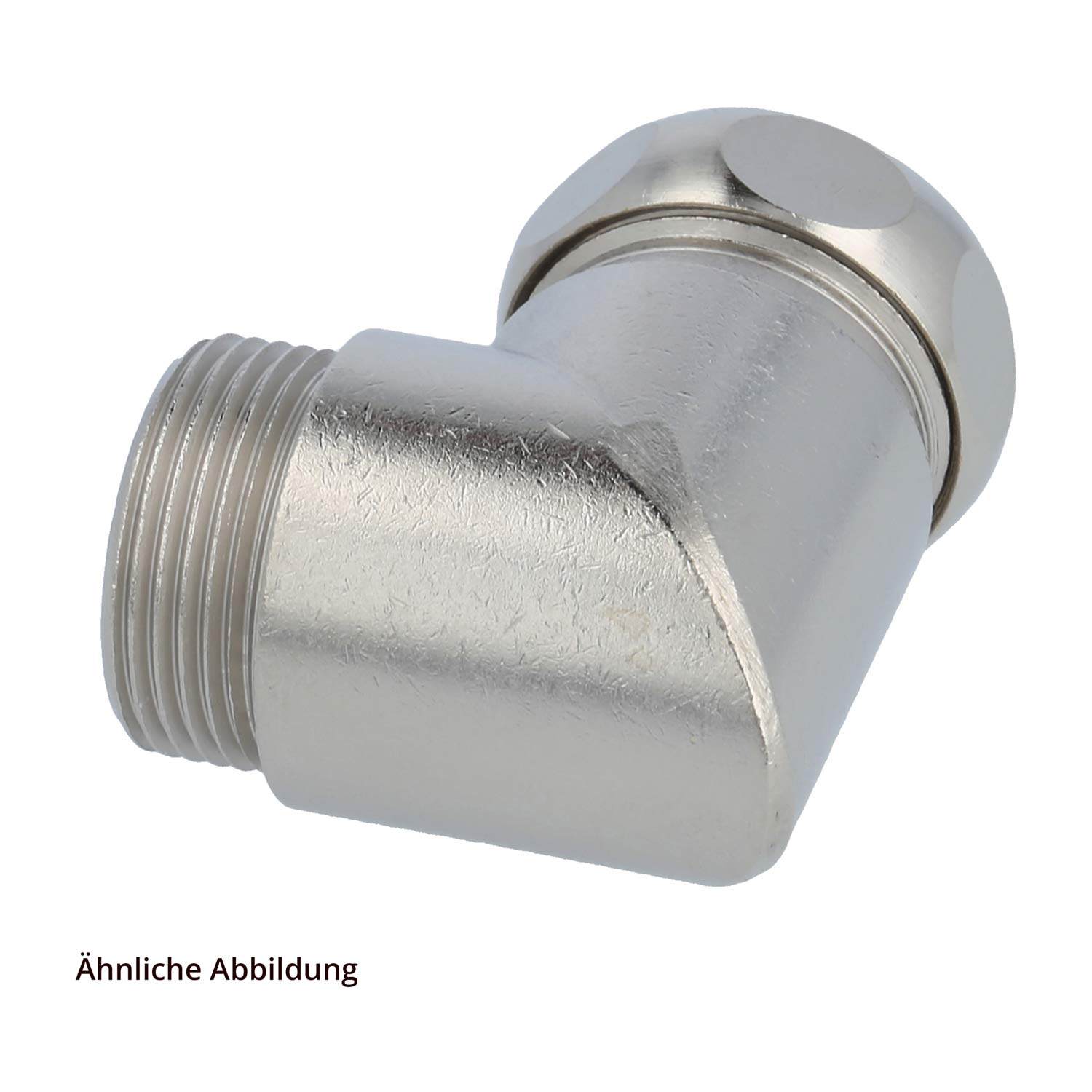

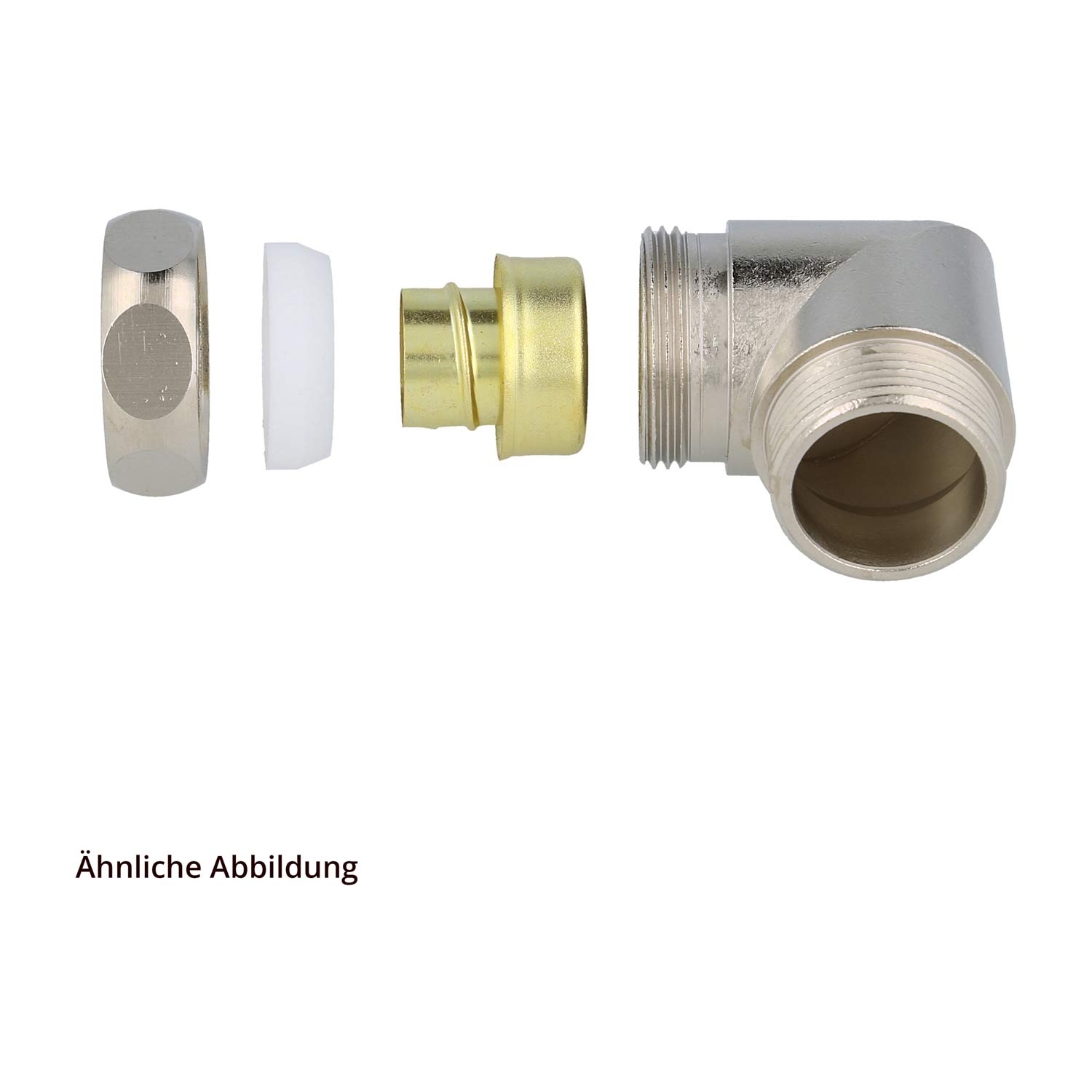

15010537040 FLEXA USW-M Metal fitting 90 degree angle Thread M40x1.5 for Tube outer diameter 36.0 mm for Tube inner diameter 27.0 mm
✓ Cutting for free - even for several cuts ✓ By the meter ex stock ✓ No packaging units, no minimum order value ✓ 80,000 metres of protective conduit on 1000 drum courts directly from stock
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €118.17 |
| from 10 piece | €111.42 |
| from 25 piece | €104.67 |
| from 50 piece | €97.90 |
from €118.17
Discount group:
Q1
15010537040 FLEXA USW-M Metal fitting 90 degree angle Thread M40x1.5 for Tube outer diameter 36.0 mm for Tube inner diameter 27.0 mm:
| Type: | Metal fitting |
| Design: | 90 degree angle |
| Type: | with external thread |
| Size: | fixed |
| Thread: | M40x1.5 |
| Thread length: | Connection thread: 10.0 mm |
| For Tube outer diam.: | 36.0 mm |
| For Tube inner diameter: | 27.0 mm |
| Inner diameter: | 26.5 mm |
| Dimensions: | Height: 67.0 mm |
| Width across flats: | SW45 |
| Temperature range: | Range of application: -40°C to 125°C |
| Protection class: | IP66 |
| Suitable for: | FLEXAgraff-SI-ASF |
| Material: | Screw connection: Brass (CuZn) nickel-plated Cap nut: Brass (CuZn) nickel-plated Seal: Thermoplastic elastomer (TPE) O-ring: Nitrile rubber (NBR) Inner spout/end spout: Brass (CuZn) |
| Colour: | Colour shade: silver |
| Features: | - High dust protection. - Force-fit connection of tube and fitting. - Faultless earthing. - Cover the ends of the tube. - Incl. inner grommet, sealing ring and O-ring. - Housing with hexagonal key surface. |
| Mechanical: | -tensile strength -vibration-proof |
| Environment: | -liquid-tight |
| Matching data: | Angled metal connectors, cable conduits |
15010537040 FLEXA USW-M Metal fitting 90 degree angle Thread M40x1.5 for Tube outer diameter 36.0 mm for Tube inner diameter 27.0 mm:
| Manufacturer: | FLEXA |
| Manufacturer designation: | 15010537040 |
| Manufacturer Short description: | USW-M, nickel-plated laiton AD 36, M 40 |
| Aliases: | - 1 5010 537 040 - 1.5010.537.040 - 1-5010-537-040 - 5010537040 - 5010 537 040 - 5010.537.040 - 5010-537-040 |
| Customs tariff number: | 74122000 |
| EAN: | 4025113202529 |
| Classifications: | - ECLASS 5.1.4 27189225 - ECLASS 7.1 27439203 |
