Variant
with steel mesh

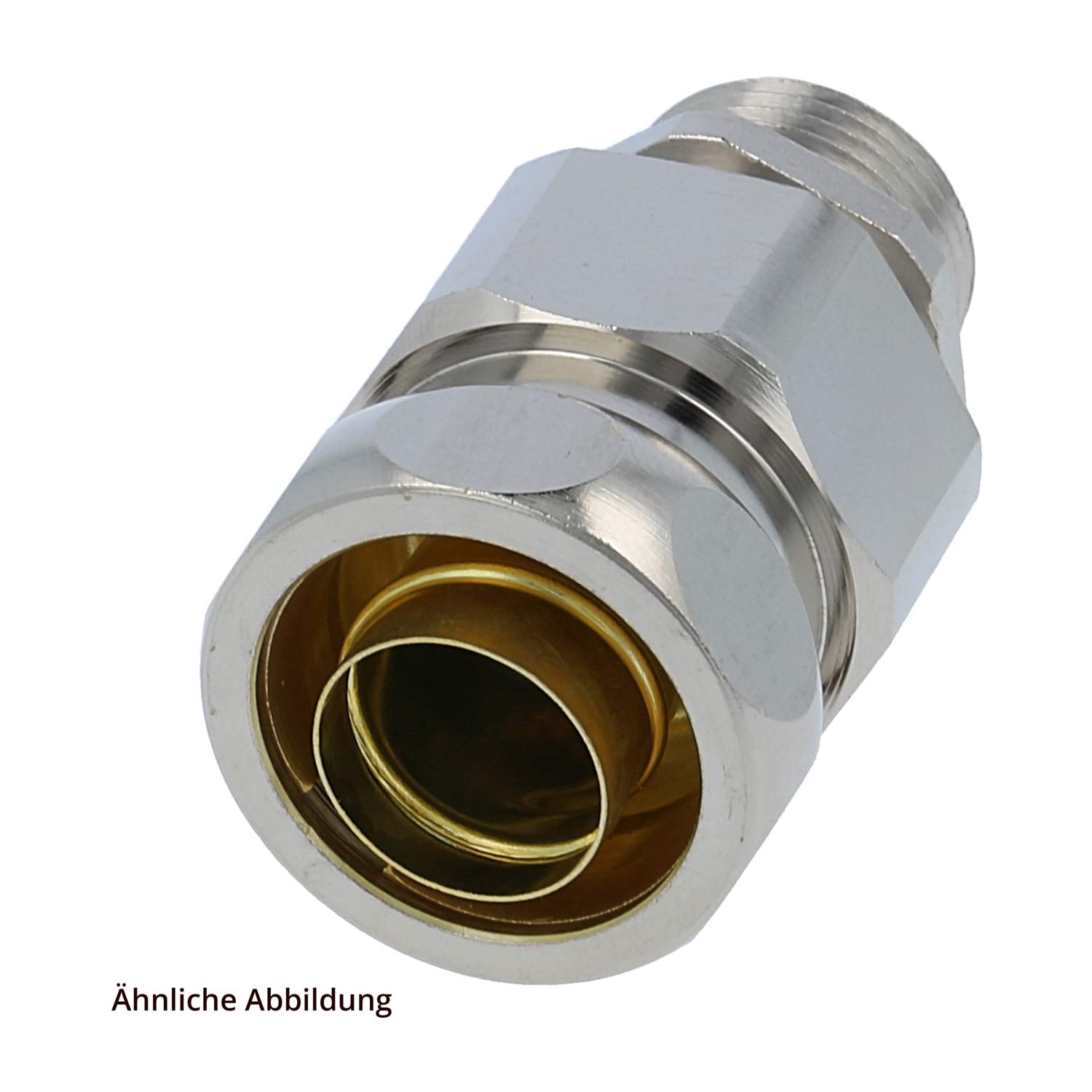

15017335025 FLEXA USZ-M Metal fitting straight Thread M25x1.5 for Tube outer diameter 27.0 mm for Tube inner diameter 20.0 mm
✓ Cutting for free - even for several cuts ✓ By the meter ex stock ✓ No packaging units, no minimum order value ✓ 80,000 metres of protective conduit on 1000 drum courts directly from stock
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €87.85 |
| from 10 piece | €82.82 |
| from 25 piece | €77.80 |
| from 50 piece | €72.79 |
| from 100 piece | €67.77 |
from €87.85
Discount group:
Q2
15017335025 FLEXA USZ-M Metal fitting straight Thread M25x1.5 for Tube outer diameter 27.0 mm for Tube inner diameter 20.0 mm:
| Type: | Metal fitting |
| Design: | straight |
| Type: | with external thread and strain relief |
| Size: | fixed |
| Thread: | M25x1.5 |
| Thread length: | Connection thread: 11.0 mm |
| For Tube outer diam.: | 27.0 mm |
| For Tube inner diameter: | 20.0 mm |
| Inner diameter: | 21.0 mm |
| Clamping range: | 12.5 mm - 19.0 mm |
| Dimensions: | Height: 61.0 mm |
| Width across flats: | SW30 / SW36 |
| Temperature range: | Range of application: -40°C to 100°C |
| Protection class: | IP54 |
| Suitable for: | SPR-PVC-EDU-AS |
| Material: | Screw connection: Brass (CuZn) nickel-plated Cap nut: Brass (CuZn) nickel-plated Thrust collar: Brass (CuZn) O-ring: Nitrile rubber (NBR) Inner spout/end spout: Brass (CuZn) |
| Colour: | Colour shade: silver |
| Features: | - High dust protection. - Force-fit connection of tube and fitting, with strain relief. - Faultless earthing. - Cover the ends of the tube. - Incl. inner grommet, brass pressure ring (EMC) and O-ring. - Housing with hexagonal key surface rotatable. |
| Mechanical: | -tensile strength -vibration-proof |
| Environment: | -liquid-tight |
| Matching data: | Straight metal connectors, cable conduits |
15017335025 FLEXA USZ-M Metal fitting straight Thread M25x1.5 for Tube outer diameter 27.0 mm for Tube inner diameter 20.0 mm:
| Manufacturer: | FLEXA |
| Manufacturer designation: | 15017335025 |
| Manufacturer Short description: | USZ-M, nickel-plated laiton AD 27, M 25 |
| Aliases: | - 1 5017 335 025 - 1.5017.335.025 - 1-5017-335-025 - 5017335025 - 5017 335 025 - 5017.335.025 - 5017-335-025 |
| Customs tariff number: | 74122000 |
| EAN: | 4025113273857 |
| Classifications: | - ECLASS 5.1.4 27189225 - ECLASS 7.1 27439203 |
Matching products
The photographs and graphics are not to scale and are not detailed images of the respective products.
Manufacturer or responsible person for the product in: FLEXA GmbH + Co KG, Darmstädter Straße 184, 63456 Hanau-Steinheim, Germany
