Variant
IP 68 / IP 69K

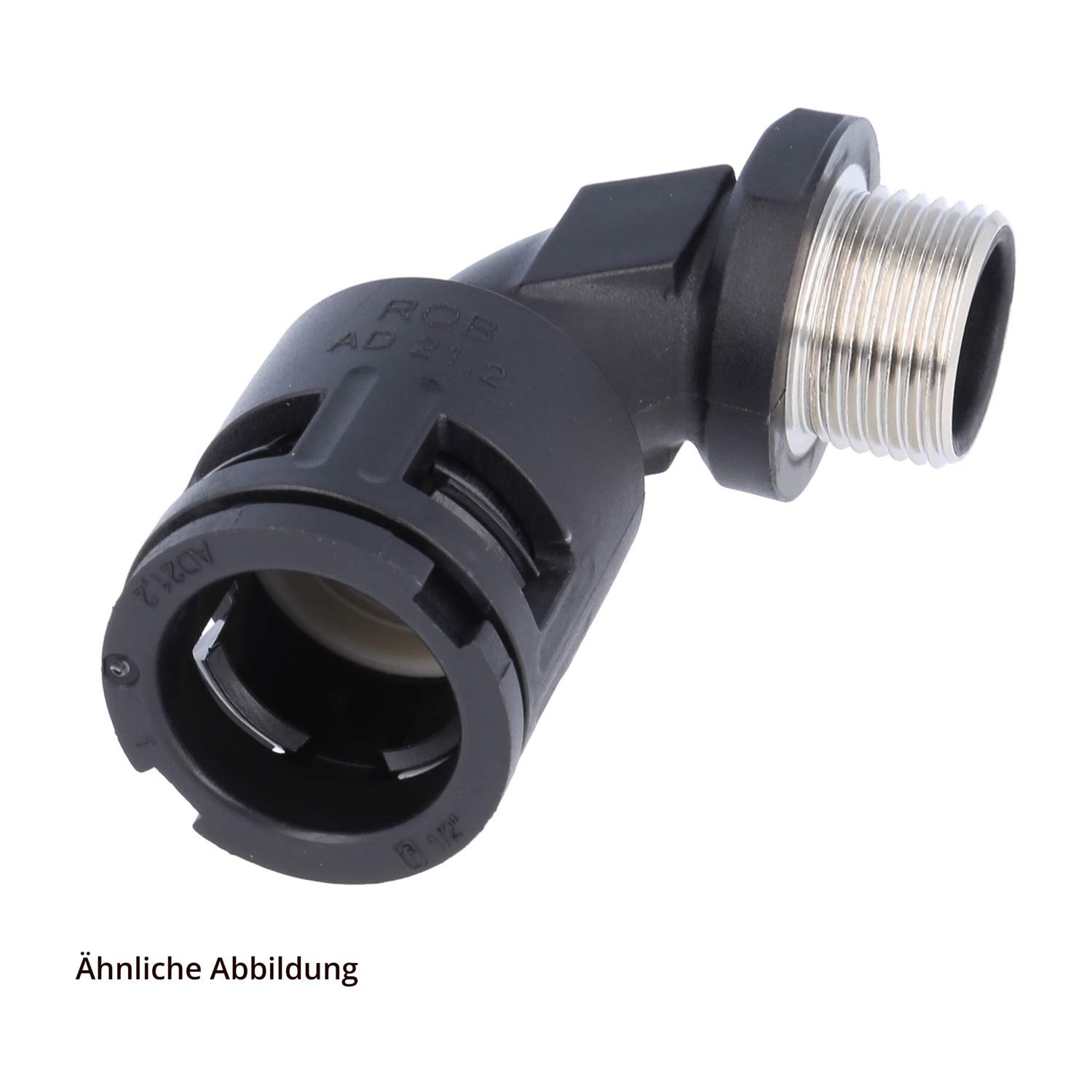

15020088236 FLEXA RQBK90-P Quick release fitting 90 degree bend Thread PG36x1588 for Tube outer diameter 42.5 mm high density with brass male thread
✓ Cutting for free - even for several cuts ✓ By the meter ex stock ✓ No packaging units, no minimum order value ✓ 80,000 metres of protective conduit on 1000 drum courts directly from stock
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €36.05 |
| from 10 piece | €32.44 |
| from 25 piece | €28.83 |
| from 50 piece | €25.24 |
| from 100 piece | €21.62 |
from €36.05
Discount group:
Q2
15020088236 FLEXA RQBK90-P Quick release fitting 90 degree bend Thread PG36x1588 for Tube outer diameter 42.5 mm high density with brass male thread:
| Type: | Quick release fitting |
| Design: | 90 degree bend |
| Type: | with brass male thread |
| Size: | high density |
| Thread: | PG36x1588 |
| Thread length: | Connection thread: 17.0 mm |
| For Tube outer diam.: | 42.5 mm |
| Inner diameter: | 36.0 mm |
| Dimensions: | Height: 111.0 mm |
| Width across flats: | SW58 |
| Temperature range: | Range of application: -40°C to 120°C |
| Protection class: | IP68 / IP69K |
| Material: | Screw connection: Polyamide (PA) Sealing insert: Thermoplastic elastomer (TPE) O-ring: Perbunan (NBR) Connection thread: Brass (CuZn) nickel-plated |
| Colour: | Colour shade: black |
| Features: | - PG brass male thread. - High torque of the threaded connection. - Incl. O-ring and flat sealing ring |
| Fire behaviour: | -halogen-free |
| Mechanical: | -cut-resistant -high mechanical load capacity |
| Environment: | -UV-resistant |
| Chemical: | -largely acid resistant -silicon-free -cadmium-free -largely solvent resistant |
| Oil resistant: | -oil-resistant -petrol-resistant |
| Matching data: | Angled PA connector, cable conduits, corrugated tubing connector |
15020088236 FLEXA RQBK90-P Quick release fitting 90 degree bend Thread PG36x1588 for Tube outer diameter 42.5 mm high density with brass male thread:
| Manufacturer: | FLEXA |
| Manufacturer designation: | 15020088236 |
| Manufacturer Short description: | RQBK90-P, black OD 42.5, PG 36 |
| Aliases: | - 1 5020 088 236 - 1.5020.088.236 - 1-5020-088-236 - 5020088236 - 5020 088 236 - 5020.088.236 - 5020-088-236 |
| Customs tariff number: | 39174000 |
| EAN: | 4025113185778 |
| Classifications: | - ECLASS 5.1.4 27189225 - ECLASS 7.1 27439204 |
CAD data for the development and planning of projects.
The extended terms-of-use apply.
Matching products
The photographs and graphics are not to scale and are not detailed images of the respective products.
Manufacturer or responsible person for the product in: FLEXA GmbH + Co KG, Darmstädter Straße 184, 63456 Hanau-Steinheim, Germany
