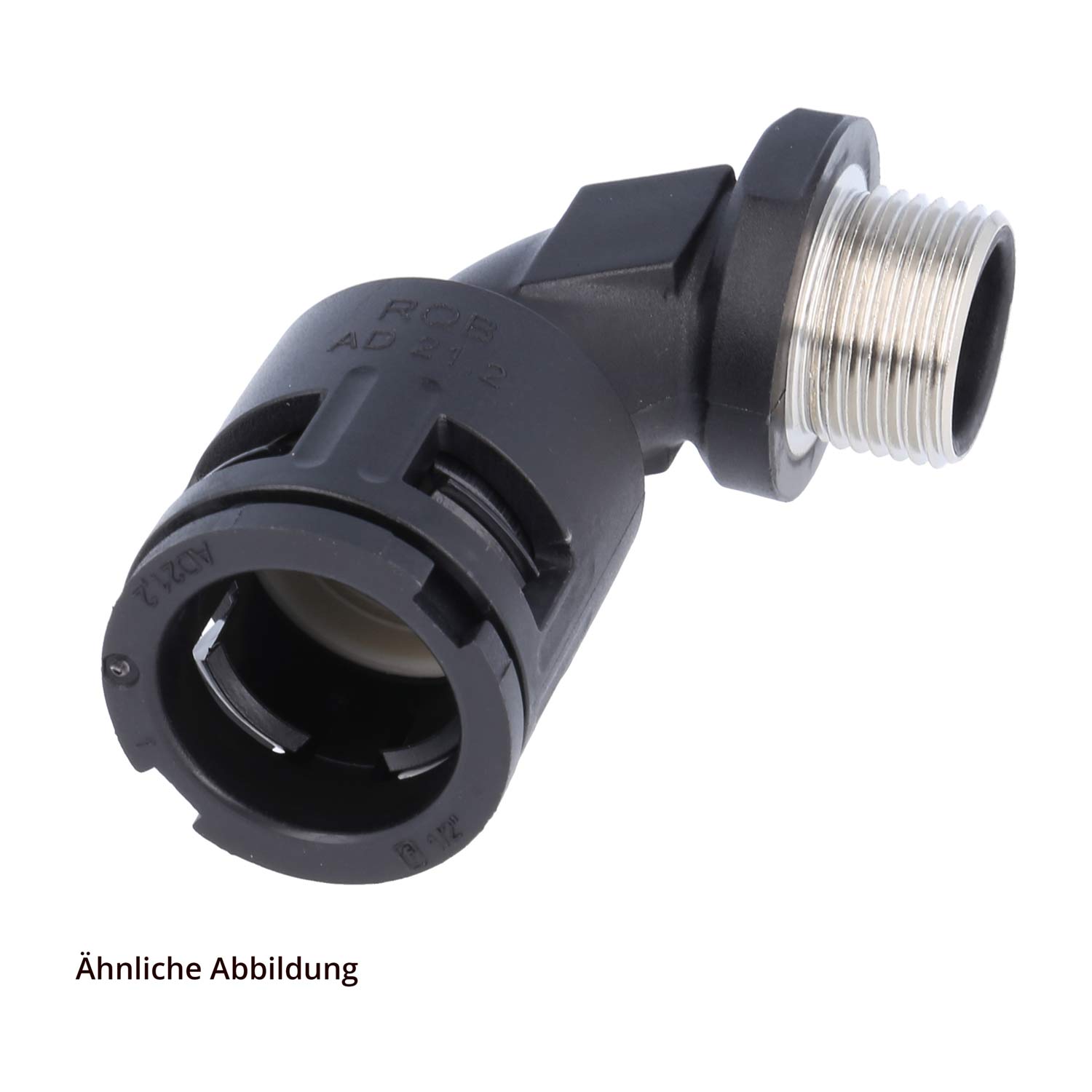

15105042240 FLEXA RQBK90-M Quick release fitting 90 degree bend Thread M40x1.5 for Tube outer diameter 42.5 mm high density with brass male thread
✓ Cutting for free - even for several cuts ✓ By the meter ex stock ✓ No packaging units, no minimum order value ✓ 80,000 metres of protective conduit on 1000 drum courts directly from stock
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €29.18 |
| from 25 piece | €26.26 |
| from 50 piece | €23.35 |
| from 100 piece | €20.42 |
from €29.18
Discount group:
Q1
15105042240 FLEXA RQBK90-M Quick release fitting 90 degree bend Thread M40x1.5 for Tube outer diameter 42.5 mm high density with brass male thread:
| Type: | Quick release fitting |
| Design: | 90 degree bend |
| Type: | with brass male thread |
| Size: | high density |
| Thread: | M40x1.5 |
| Thread length: | Connection thread: 17.0 mm |
| For Tube outer diam.: | 42.5 mm |
| Inner diameter: | 31.5 mm |
| Dimensions: | Height: 111.0 mm |
| Width across flats: | SW48 |
| Temperature range: | Range of application: -40°C to 120°C |
| Protection class: | IP68 / IP69K |
| Material: | Screw connection: Polyamide (PA) Sealing insert: Thermoplastic elastomer (TPE) O-ring: Perbunan (NBR) Connection thread: Brass (CuZn) nickel-plated |
| Colour: | Colour shade: black |
| Features: | - Metric brass male thread. - High torque of the threaded connection. - Incl. O-ring and flat sealing ring |
| Fire behaviour: | -halogen-free |
| Mechanical: | -cut-resistant -high mechanical load capacity |
| Environment: | -UV-resistant |
| Chemical: | -largely acid resistant -silicon-free -cadmium-free -largely solvent resistant |
| Oil resistant: | -oil-resistant -petrol-resistant |
| Matching data: | Angled PA connector, cable conduits, corrugated tubing connector |
15105042240 FLEXA RQBK90-M Quick release fitting 90 degree bend Thread M40x1.5 for Tube outer diameter 42.5 mm high density with brass male thread:
| Manufacturer: | FLEXA |
| Manufacturer designation: | 15105042240 |
| Manufacturer Short description: | RQBK90-M, black OD 42.5, M 40 x 1.5 |
| Aliases: | - 1 5105 042 240 - 1.5105.042.240 - 1-5105-042-240 - 5105042240 - 5105 042 240 - 5105.042.240 - 5105-042-240 |
| Customs tariff number: | 39174000 |
| EAN: | 4025113193742 |
| Classifications: | - ECLASS 5.1.4 27189225 - ECLASS 7.1 27439204 |
