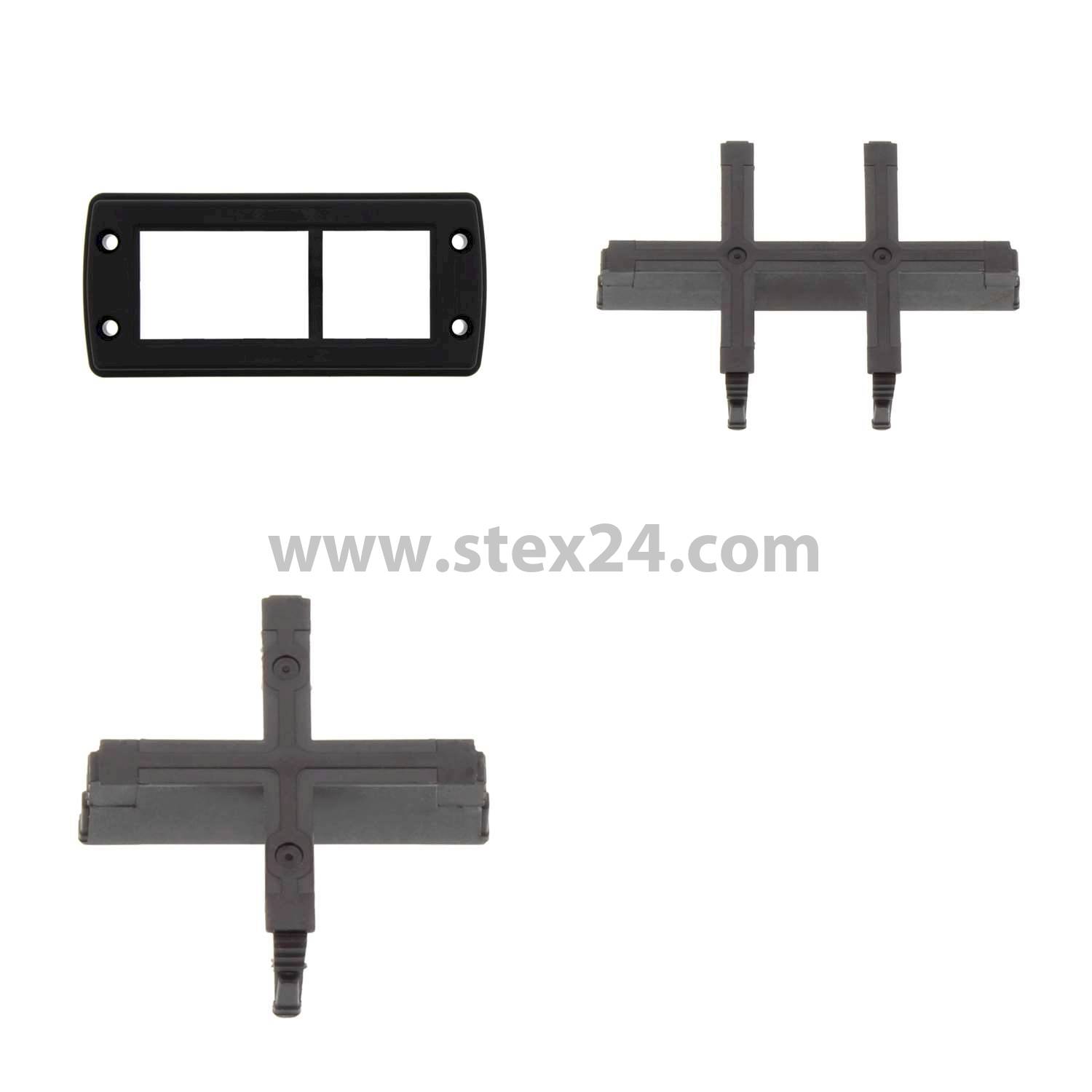

28500.1045K CONTA-CLIP Frame cable entry KDS-SR Including inlay 4 and 6-way for small, large and double sealing elements, inlays 1, 2, 4 and 6-way Mounting cut-out 113.5 mm x 46.0 mm
Article No.:
232955
Manufacturer Article No.:
28500.1045K
Manufacturer:
CONTA-CLIP
✓ Also available in a SET – Precise & time-saving! ✓ Expandable at any time due to the modular system ✓ Individually ex stock
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €40.95 |
€40.95
Business notice:
Contents of the SET: Frame cable entry, Inlay core size 1x4-way for 4-way divider and inlay core size 1x6-way for 6-way divider.
Discount group:
I1
28500.1045K CONTA-CLIP Frame cable entry KDS-SR Including inlay 4 and 6-way for small, large and double sealing elements, inlays 1, 2, 4 and 6-way Mounting cut-out 113.5 mm x 46.0 mm:
| Type: | Frame cable entry |
| Series: | KDS-SR |
| Size: | Including inlay 4 and 6-way |
| Mounting cut-out: | Length: 113.5 mm Wide: 46.0 mm |
| Mounting dimensions: | Screw-on hole Number: 4 Screw-on hole Diameter: 5.5 mm Length: 130.0 mm Wide: 32.0 mm |
| Dimensions: | Length: 153.0 mm Wide: 70.0 mm Height: 19.6 mm |
| Tightening torque Mounting screws: | 3.0Nm |
| Temperature range: | -40°C to 120°C |
| Protection class: | IP66 |
| Protection class NEMA: | 1/4X/12 |
| Suitable for: | small, large and double sealing elements, inlays 1, 2, 4 and 6-way |
| Material: | Cable connector: Polyamide (PA6.6) glass fibre reinforced Seal: Polyurethane basis (PUR) |
| Colour: | Colour shade: deep black RAL 9005 |
| Approvals / Standards: | Fire behaviour according to UL: V0 according to UL94 -UL 508A UR-File-no E489821 -CSA 22.2 No. 14-18. File-no E489821 |
| Features: | - Deliverable: Frame cable entry, Inlay core size 1x4-way for 4-way divider and inlay core size 1x6-way for 6-way divider. |
| Fire behaviour: | -halogen-free |
| Chemical: | -silicon-free |
28500.1045K CONTA-CLIP Frame cable entry KDS-SR Including inlay 4 and 6-way for small, large and double sealing elements, inlays 1, 2, 4 and 6-way Mounting cut-out 113.5 mm x 46.0 mm:
| Manufacturer: | CONTA-CLIP |
| Manufacturer designation: | 28500.1045K |
| Manufacturer Short description: | SET of 10 frames, 2x inserts |
| Aliases: | - 28500 1045K - 28500.1045K - 28500-1045K |
| Customs tariff number: | 39259020 |
| EAN: | 4069948281199 |
| Classifications: | - ECLASS 5.1.4 22105101 - ECLASS 7.1 27189217 |
