Variant
Core size: small

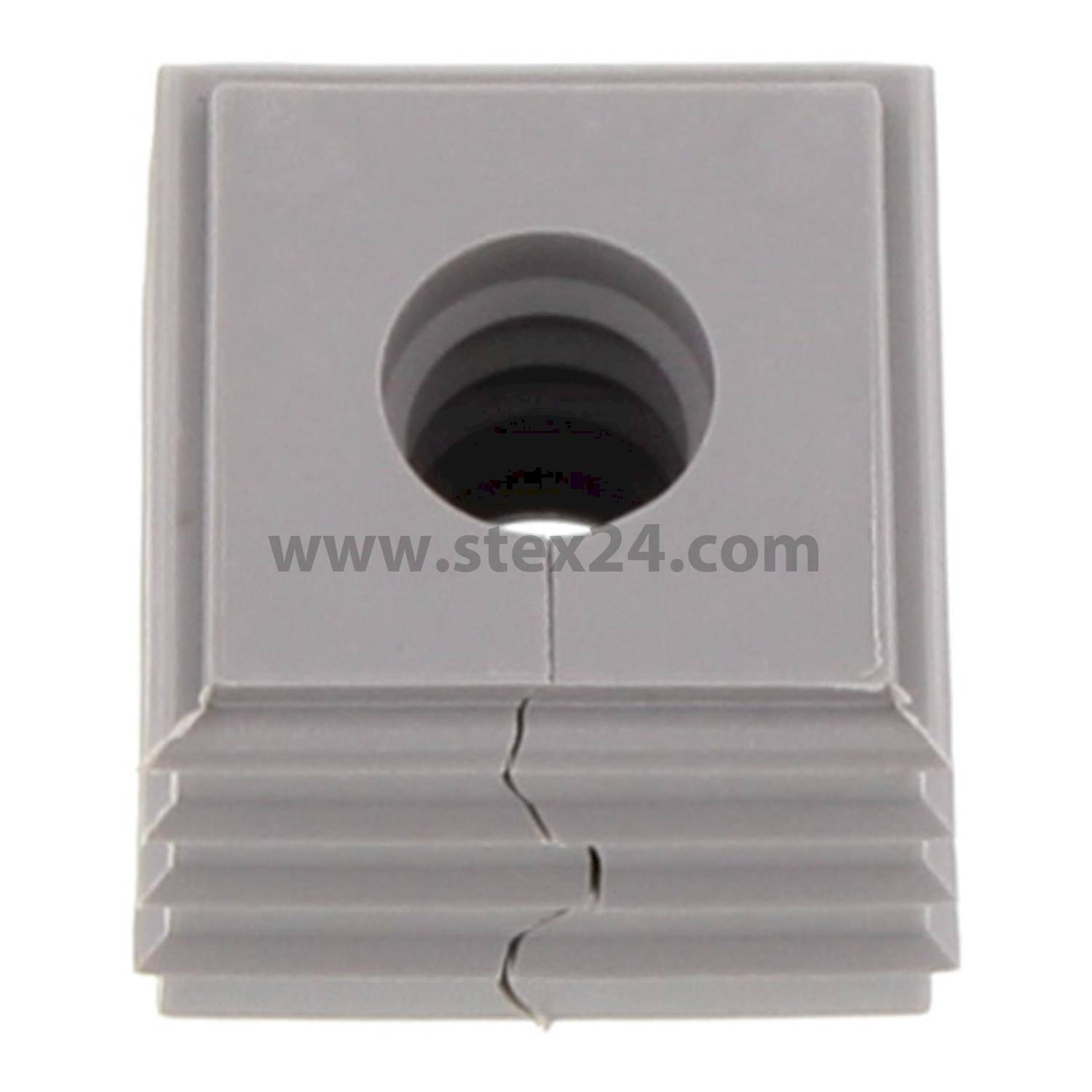

28569.6 CONTA-CLIP Cable gro mmet sealing element KDS-DE small Clamping range 8.0 mm - 9.0 mm Temperature range -40°C to 90°C Protection class IP66
Article No.:
232787
Manufacturer Article No.:
28569.6
Manufacturer:
CONTA-CLIP
✓ no packing units, no minimum order value ✓ pieces available from stock
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €2.09 |
| from 75 piece | €1.89 |
| from 150 piece | €1.68 |
| from 300 piece | €1.46 |
| from 600 piece | €1.26 |
from €2.09
Discount group:
I1
28569.6 CONTA-CLIP Cable gro mmet sealing element KDS-DE small Clamping range 8.0 mm - 9.0 mm Temperature range -40°C to 90°C Protection class IP66:
| Type: | Cable gro mmet sealing element |
| Series: | KDS-DE |
| Size: | small |
| Clamping range: | 8.0 mm - 9.0 mm |
| Dimensions: | Length: 20.3 mm Wide: 20.3 mm Height: 17.7 mm |
| Temperature range: | -40°C to 90°C |
| Protection class: | IP66 |
| Protection class NEMA: | 1/4X/12 |
| Material: | Cable grommet: Thermoplastic elastomer (TPE) |
| Colour: | Colour shade: light grey RAL 7035 |
| Approvals / Standards: | Fire behaviour according to UL: V0 according to UL94 -UL 508A UR-File-no E489821 -CSA 22.2 No. 14-18. File-no E489821 |
| Features: | - Strain relief based on DIN EN 62444. |
| Fire behaviour: | -halogen-free |
| Chemical: | -silicon-free |
28569.6 CONTA-CLIP Cable gro mmet sealing element KDS-DE small Clamping range 8.0 mm - 9.0 mm Temperature range -40°C to 90°C Protection class IP66:
| Manufacturer: | CONTA-CLIP |
| Manufacturer designation: | 28569.6 |
| Manufacturer Short description: | KDS-DE 8-9 GR |
| Aliases: | - 28569 6 - 28569.6 - 28569-6 |
| Customs tariff number: | 39259020 |
| EAN: | 4044211211073 |
| Classifications: | - ECLASS 5.1.4 22105101 - ECLASS 7.1 27189217 |
