Variant
for sealing element, small

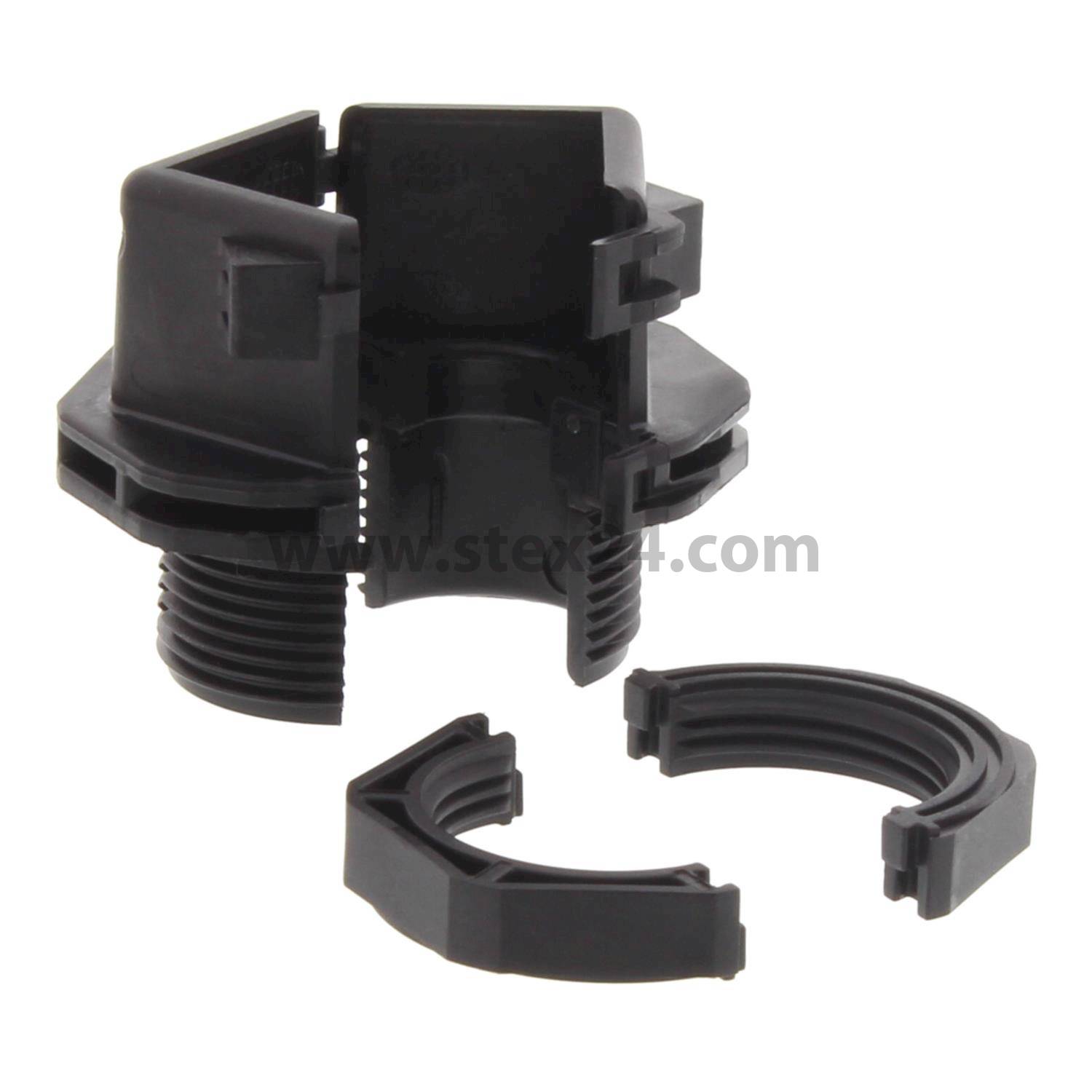

28611.4 CONTA-CLIP Cable connector divisible KDS-KV M25x1.5 for one sealing elements, small Mounting cut-out Diameter 25.2 mm
Article No.:
232820
Manufacturer Article No.:
28611.4
Manufacturer:
CONTA-CLIP
✓ no packing units, no minimum order value ✓ pieces available from stock
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €6.24 |
| from 25 piece | €5.60 |
| from 50 piece | €4.99 |
| from 100 piece | €4.37 |
from €6.24
Discount group:
I2
28611.4 CONTA-CLIP Cable connector divisible KDS-KV M25x1.5 for one sealing elements, small Mounting cut-out Diameter 25.2 mm:
| Type: | Cable connector divisible |
| Series: | KDS-KV |
| Size: | M25x1.5 |
| Thread: | Size: M25x1.5 Thread length: 15.0 mm |
| Mounting cut-out: | Diameter: 25.2 mm |
| Dimensions: | Height: 38.7 mm Diameter: 40.0 mm Overall height: 23.7 mm |
| Width across flats: | SW38 |
| Tightening torque max.: | 3.0 Nm |
| Temperature range: | -40°C to 120°C |
| Protection class: | IP66 |
| Suitable for: | one sealing elements, small |
| Material: | Screw connection: Polyamide (PA6.6) glass fibre reinforced Locknut: Polyamide (PA6.6) glass fibre reinforced Sealing ring: Thermoplastic elastomer (TPE) |
| Colour: | Colour shade: deep black RAL 9005 |
| Approvals / Standards: | Fire behaviour according to UL: V0 according to UL94 |
| Features: | - With split locking nut. |
| Fire behaviour: | -halogen-free |
| Chemical: | -silicon-free |
28611.4 CONTA-CLIP Cable connector divisible KDS-KV M25x1.5 for one sealing elements, small Mounting cut-out Diameter 25.2 mm:
| Manufacturer: | CONTA-CLIP |
| Manufacturer designation: | 28611.4 |
| Manufacturer Short description: | KDS-KV M25 BK |
| Aliases: | - 28611 4 - 28611.4 - 28611-4 |
| Customs tariff number: | 39269097 |
| EAN: | 4044211208943 |
| Classifications: | - ECLASS 5.1.4 22105101 - ECLASS 7.1 27189217 |
