Variant
black

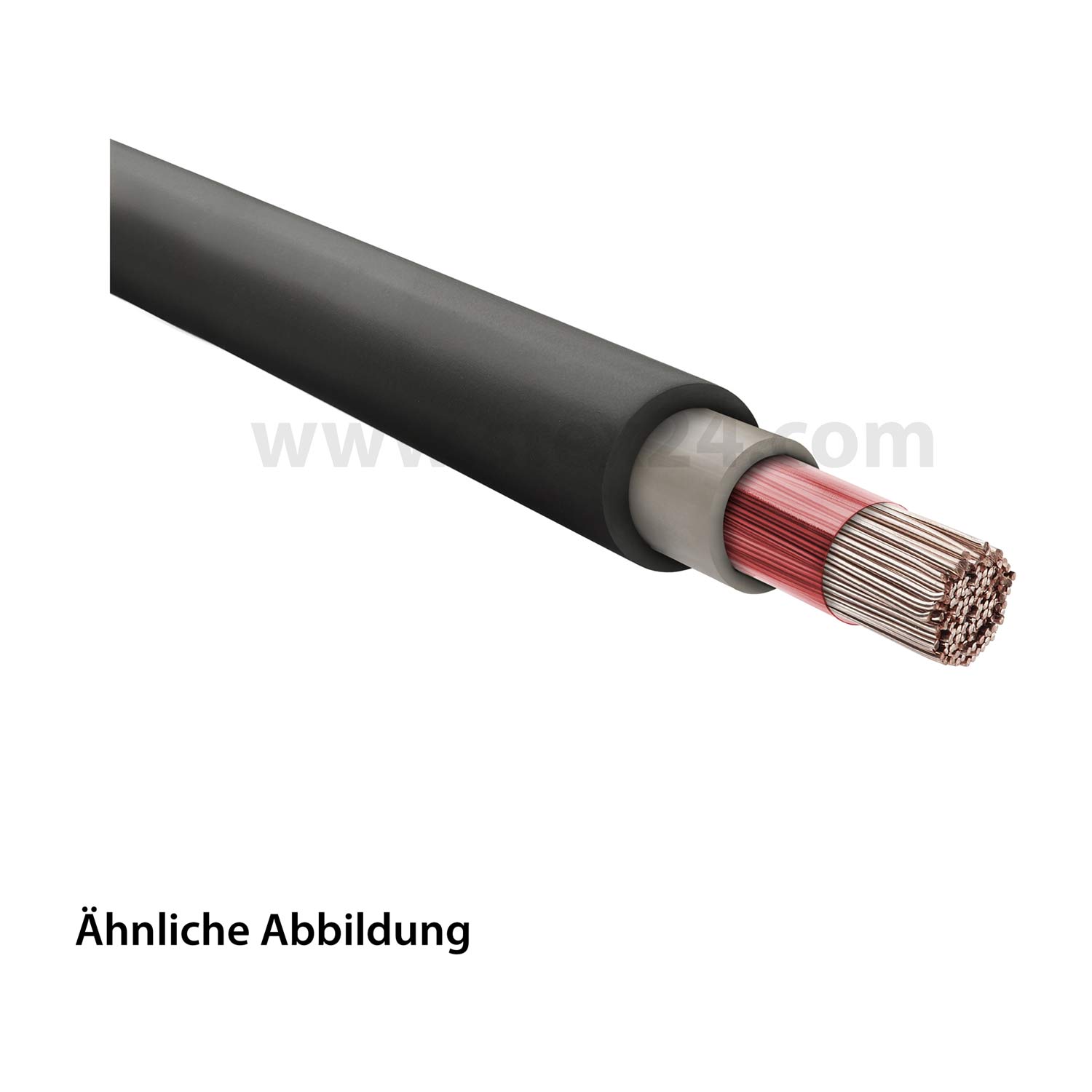

38508 HELU KABEL NSGAFÖU 1.8/3kV 1X35 mm² Rubber core wire AD 16.5 mm Rated voltage Uo/U 1800V/3000V
Article No.:
106026
Old Article No.:
2150031601
Manufacturer Article No.:
38508
Manufacturer:
✓ Cutting for free - even for several cuts ✓ By the meter ex stock ✓ No packaging units, no minimum order value ✓ 150,000 metres of cable on over 1000 drum courts directly from stock
Please select variant:
| Tiered price | |
|---|---|
| from 1 metre | €10.17 |
| from 25 metre | €9.58 |
| from 50 metre | €8.98 |
| from 100 metre | €8.38 |
from €10.17
Business notice:
Please enter your desired length in the quantity field (from 1 metre without cutting costs). Cut goods. The product is excluded from return.
Discount group:
K1
38508 HELU KABEL NSGAFÖU 1.8/3kV 1X35 mm² Rubber core wire AD 16.5 mm Rated voltage Uo/U 1800V/3000V:
| Type: | Earth-fault and short-circuit-proof rubber core cable |
| Design: | Rubber core wire |
| Cable details: | Structure mm²: 1X35 mm² Cable Outer diameter: 16.5 mm |
| Rated voltage: | Uo/U: 1800V/3000V |
| Test voltage: | Voltage: 6000V |
| Minimum bending radius: | moves: 10.0x Outer diameter fixed relocated: 6.0x Outer diameter |
| Temperature range: | moves: -25°C to 80°C |
| Colour: | Outer sheath: black |
| Range of application: | Energy guiding chains: No |
| Cable structure: | - Stranded tinned copper wires - Fine-stranded conductor construction according to VDE 0295, class 5 - Rubber core insulation, type 3Gl3 - Rubber outer jacket, type 5GM3 |
| Applications: | - For flexible application without forced guidance and without tensile load in dry rooms. - Particularly suitable for short-circuit and earth-fault proof installation. - Short-circuit and earth-fault proof installation up to 1000V according to VDE 0100 part 520 and VDE 0298 part 3. |
| Fire behaviour: | -flame-retardant -self-extinguishing -flame-retardant according to IEC 60332-1-2 |
| Oil resistant: | -largely oil resistant |
| Area of application: | -Switchgear -Rail vehicles -Distributor -Internal unit wiring -Vehicle construction |
38508 HELU KABEL NSGAFÖU 1.8/3kV 1X35 mm² Rubber core wire AD 16.5 mm Rated voltage Uo/U 1800V/3000V:
| Manufacturer: | LAPP |
| Manufacturer designation: | 38508 |
| Manufacturer Short description: | NSGAFÖU 1,8/3kV 35 |
| Customs tariff number: | 85446010 |
| EAN: | 4044773090918 |
| Classifications: | - ECLASS 5.1.4 27062006 - ECLASS 7.1 27062010 |
The photographs and graphics are not to scale and are not detailed images of the respective products.
Manufacturer or responsible person for the product in: Helukabel GmbH, Schloßhaldenstr. 10, 71282 Hemmingen, Germany
