Variant
Pin 19-pole
Item available as a pre-configured set
You can also order these items as a ready-made set (bundle) with matching items under one item number.

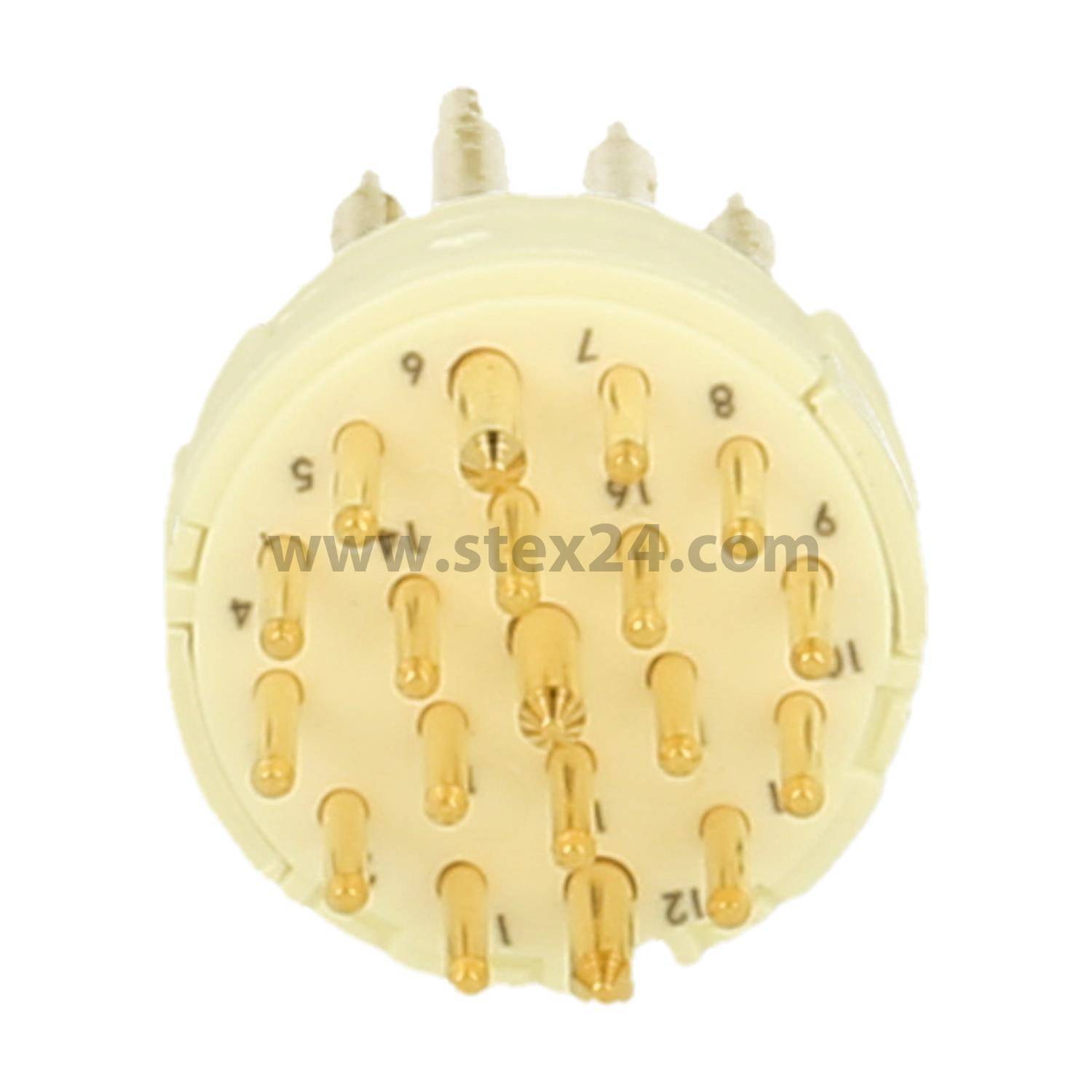

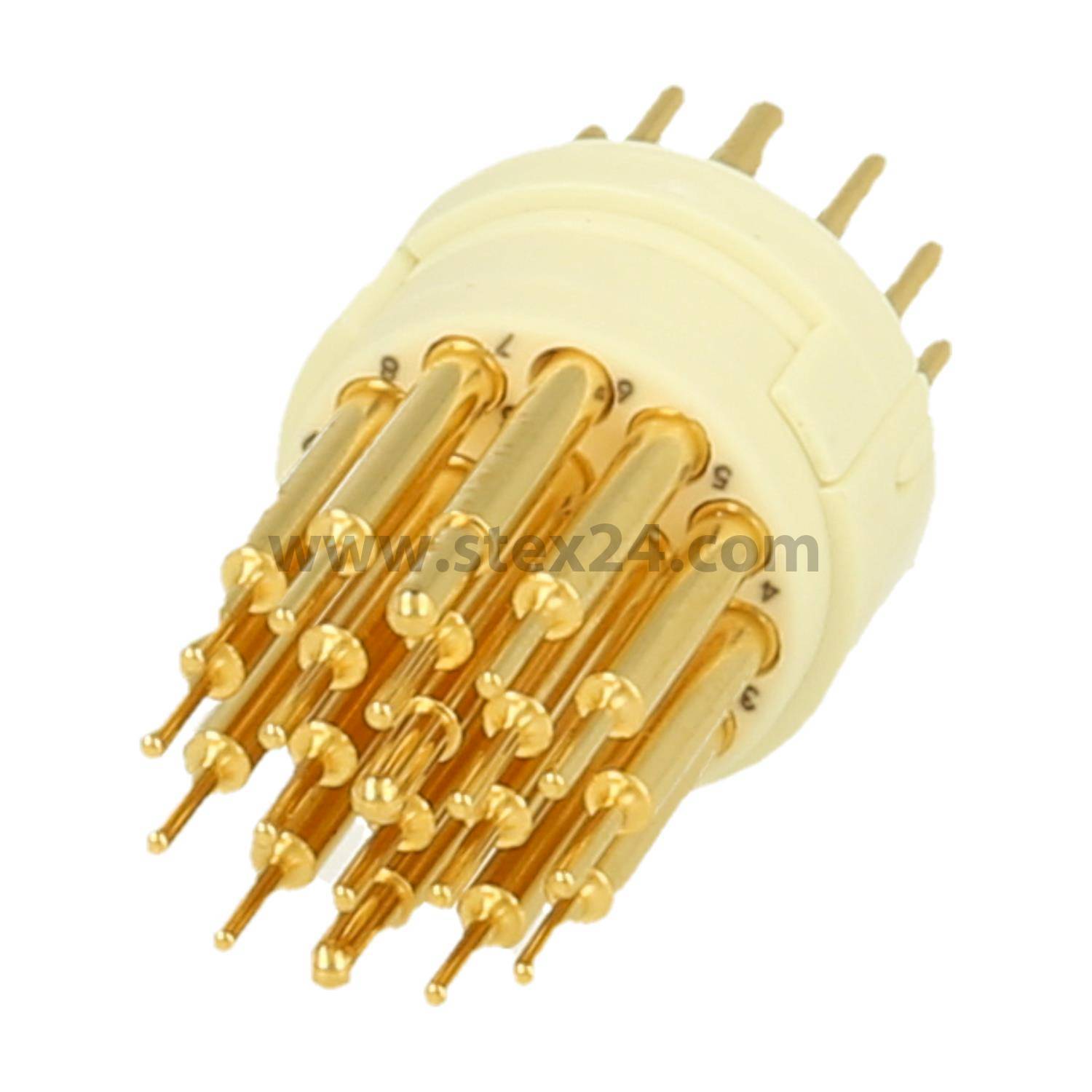

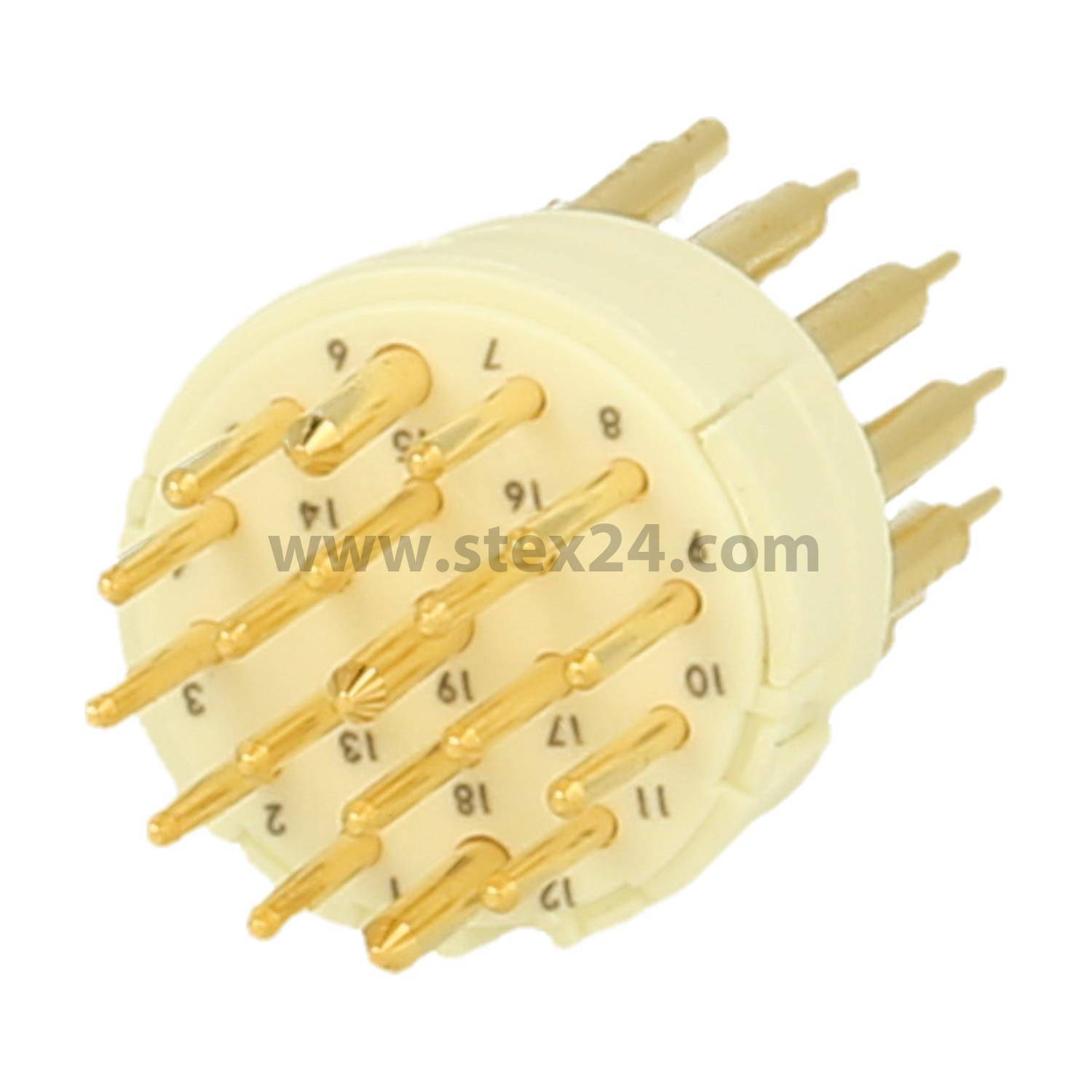

7001919137 HUMMEL M23 Signal Solder-in contact insert Pin Solder-in connection, Number of poles 19-pole 100V Control contact 100V, 10A/8A, Colour white
✓ Also available in a SET – Precise & time-saving! ✓ No packing units & no minimum value ✓ Individually ex stock
Please select variant:
| Tiered price | |
|---|---|
| from 1 piece | €42.69 |
| from 10 piece | €38.63 |
| from 25 piece | €34.56 |
| from 50 piece | €30.49 |
| from 100 piece | €26.43 |
from €42.69
Discount group:
J1
7001919137 HUMMEL M23 Signal Solder-in contact insert Pin Solder-in connection, Number of poles 19-pole 100V Control contact 100V, 10A/8A, Colour white:
| Type: | Solder-in contact insert |
| Series: | M23 Signal |
| Design: | Pin |
| Solder contact: | 17.0 mm |
| Connection technology: | Solder-in connection |
| Number of poles: | 19-pole |
| Coding: | N,S,H,X,Y |
| Coding direction: | clockwise (standard) |
| Labelling: | 1 - 19 |
| Rated voltage: | Power contact: 100V Control contact: 100V |
| Rated current: | Power contact: 10A Control contact: 8A |
| Pollution level: | 3 |
| Contact diameter: | 1.0 mm/1.5 mm/ |
| Temperature range: | -40°C to 125°C |
| Mating cycles: | >=1000 |
| Material: | Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6) Contact: Brass (CuZn) Contact surface: nickel-plated with gold plating (Au) |
| Colour: | Colour shade: white |
| Matching data: | Signal plug / signal connector |
7001919137 HUMMEL M23 Signal Solder-in contact insert Pin Solder-in connection, Number of poles 19-pole 100V Control contact 100V, 10A/8A, Colour white:
| Manufacturer: | HUMMEL |
| Manufacturer designation: | 7001919137 |
| Manufacturer Short description: | Insert 19-p. Turned solder pins |
| Aliases: | - 7 001 919 137 - 7.001.919.137 - 7-001-919-137 |
| Customs tariff number: | 85369010 |
| EAN: | 4033878500743 |
| Classifications: | - ECLASS 5.1.4 27260702 - ECLASS 7.1 27440102 |
The photographs and graphics are not to scale and are not detailed images of the respective products.
Manufacturer or responsible person for the product in: HUMMEL AG, Lise-Meitner-Straße 2, 79211 Denzlingen, Germany
